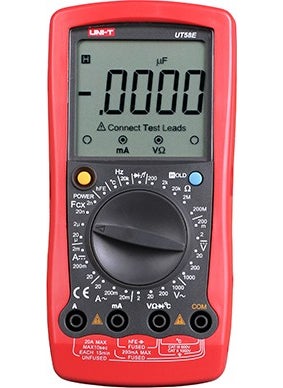

Uni-T Ut 58E Digital Multimeter

Uni-T Ut 58E Digital Multimeter p style="margin: 0px; padding: 0px; box-sizing: border-box; color: rgb(68, 68, 68); font-family: " microsoft="" yahei";="" line-height: ="" normal;"="">Product features

1. 20,000 views count, 0.05% baseline DCV accuracy

2. Large 60mm × 54mm LCD screen

3. Function symbols and test lead connection indicator for all ranges

4. Capacitance and transistor measurement

5. Frequency measurement

6. Diode and ringer continuity

7. Data retention

8. Auto power off

9. 20A AC/DC current measurement

10. Compliant with CE (European Union) directives.



model		UT58E
DC Voltage (V)	200mV20V / 200V / 1000V
	200mV / 2V / 20V / 200V / 1000V	(±0.05% + 3)
AC Voltage (V)	2V / 200V / 1000V
	2V / 20V / 200V / 1000V	(± 0.5 + 10%),
DC Current (A)	2mA / 200mA / 20A	(± 0.5% + 5)
AC Current (A)	2mA / 200mA / 20A
	20 mA / 200 mA / 20A	(±0.8% + 10)
resistance (Ω)	200Ω/2kΩ/200kΩ/per 2M/20MΩ
	200Ω / 2kΩ / 20kΩ / 2M / 200MΩ per	(±0.3% + 1)
Capacitance (F)	20nF / 200nF / 2μF / 100uF
	2NF / 20nF / 2μF / 20μF	(±3% + 40%)
Inductance (H)	2mH / 20mH / 200mH / 20H
Frequency (Hz)	20kHz	(± 1.5 + 5%)
temperature (°C)	-40°C ~ 1000°C	(± 1 + 30%),
Features
Number of Impressions		20000
Manual Range		√
Diode		√
transistor		√
Auto Power Off		√
Continuity Warning Device		√
Data retention		√
Low Battery Indicator	span style="margin: 0px; padding: 0px; box-sizing: border-box; font-size: 14px; font-family: arial, helve
