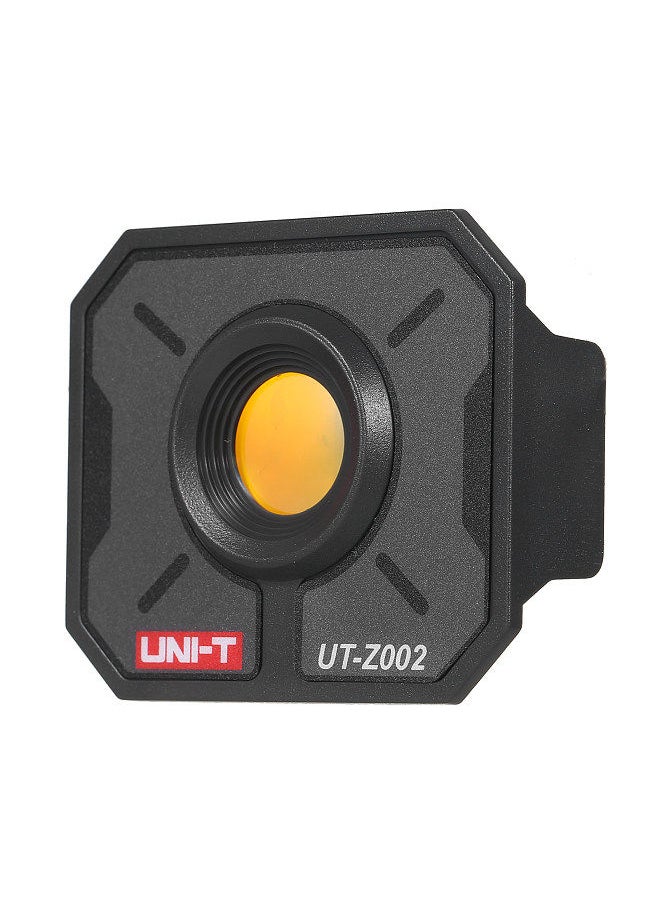

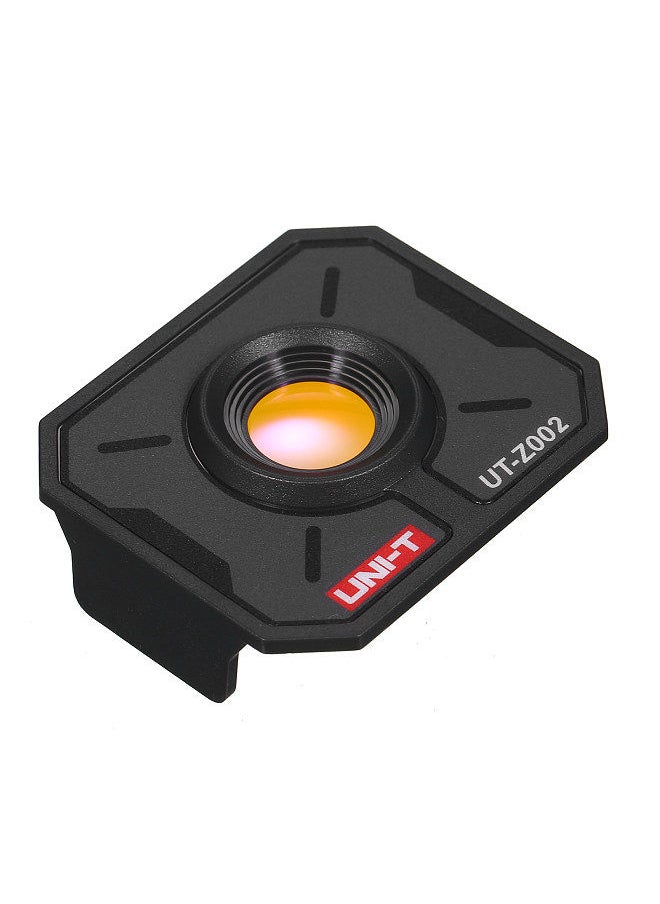

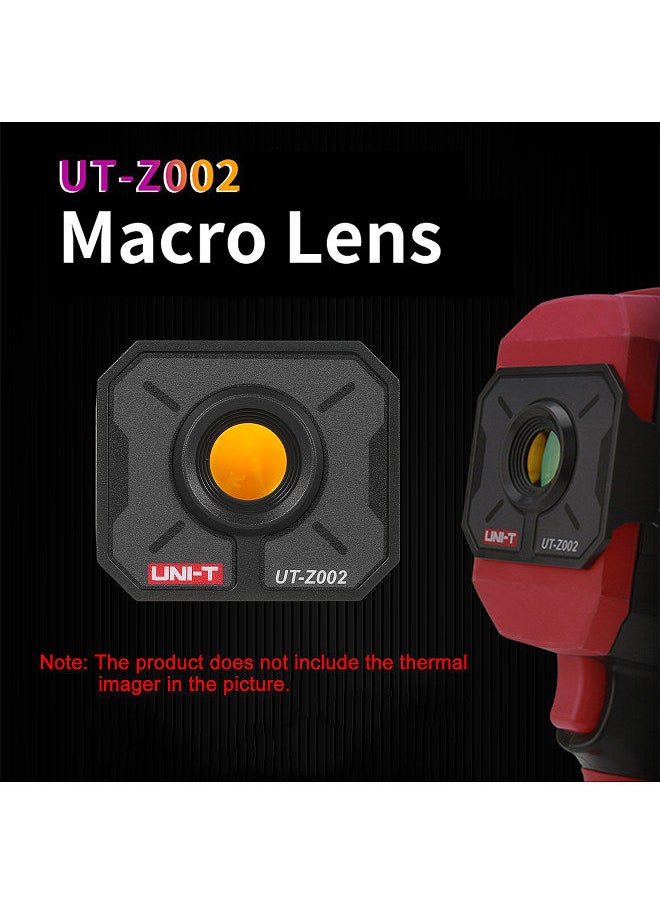

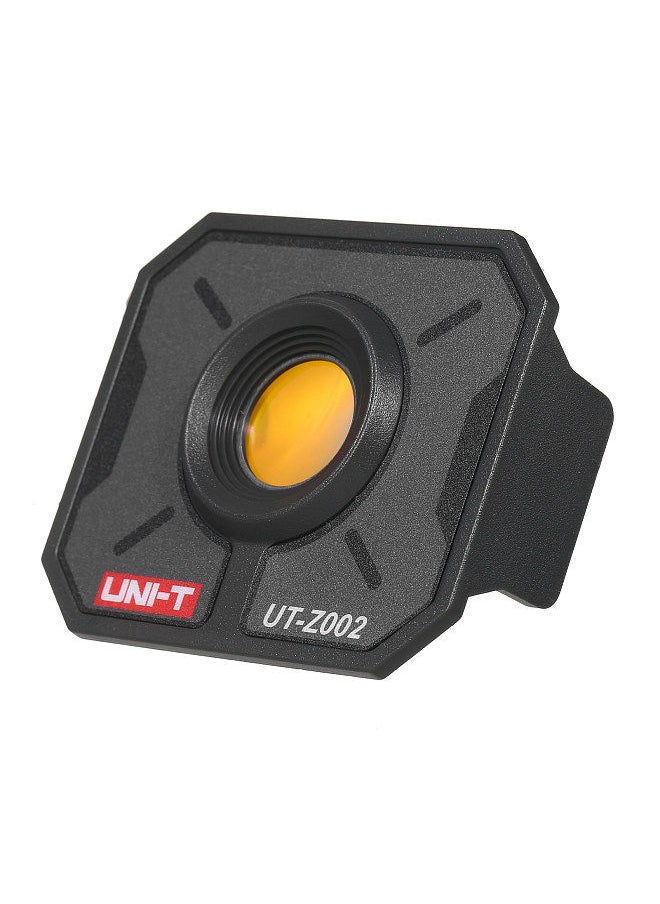

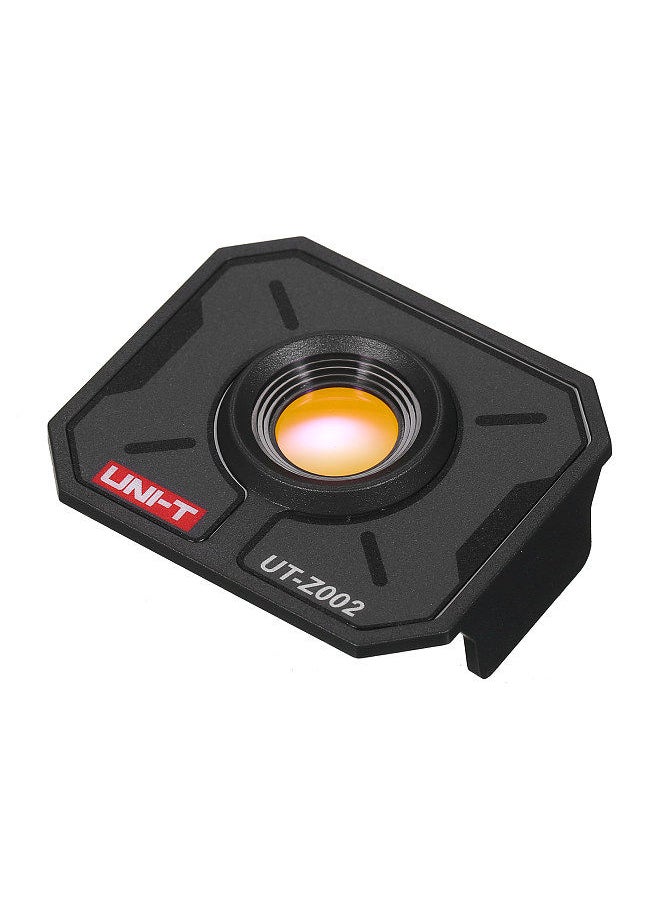

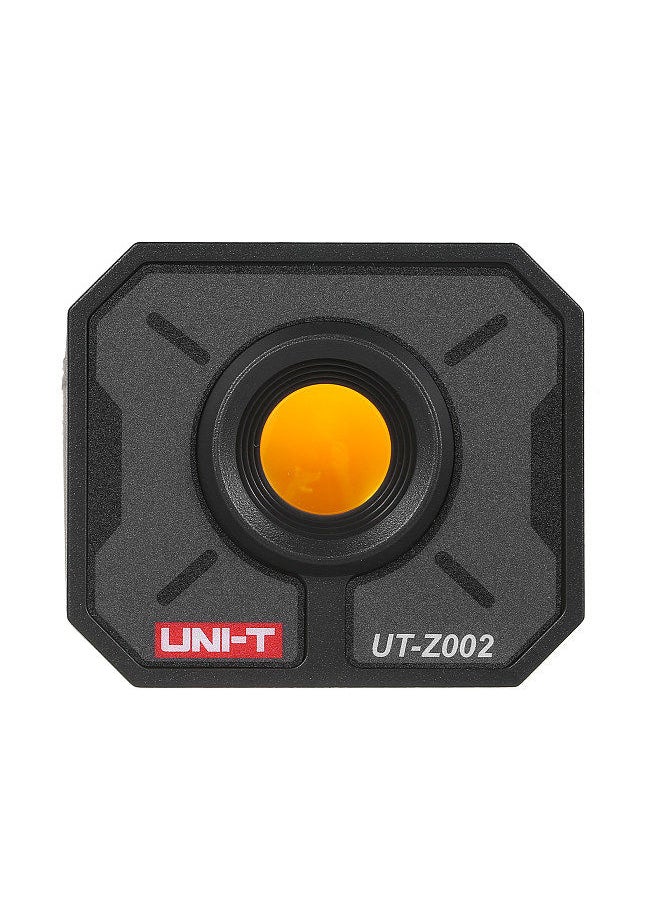

UNI-T UT-Z002 Thermal Maintenance of PCB Motherboard Components for High-Definition Display of Infrared Thermal Imager Macro Lens Suitable for UTi120B, UTi165B, UTi260A, UTi260B

OverviewThe macro lens seeks the thermal imaging macro lens focusing lens, which is used for the infrared focusing and magnification of the electronic maintenance motherboard. A macro lens acts as a magnification, and the resolution remains the same as a standard lens. Features: COMPATIBLE WITH: UTI260B,UTI120B,UTI165B,UTI260A CAPTURE SUBTLE CHANGES: Temperature measurements of targets can be captured without changing the lens. EASY TO INSTALL: Easy to attach the macro lens to compatible cameras. SEE SMALLER:Targets could be displayed in detail. For best results, position macro lens nearest 30mm to object. NO CALIBRATION REQUIRED: Ready to use once installed, saves the hassel of sending the camera to the manufacturer to clibrate the lens. APPLICATION SCENARIOS: Electronic maintenance, product development, digital evaluation Specifications: Brand Name: UNI-T Model Number: UT-Z002 Type: Macro Lens Material: ABS DIY Supplies: ELECTRICAL UT-Z002 Applicable Models: UTI260B,UTI120B,UTI165B,UTI260A Lens: 20mm diameter, 31.8mm focal length, flat convex lens Film: Double sided AR antireflection film, 10.6 μm coating Item Size: 68 * 58 * 20mm / 2.68 * 2.28 * 0.79inch Item Weight: 17g / 0.6oz Packing Size: 171 * 120 * 25mm / 6.73 * 4.72 * 0.98inch Packing Weight: 51g / 1.8oz Please Note: This is a macro lens and product doesn't include thermal imager Packing List: 1 * Macro Lens
