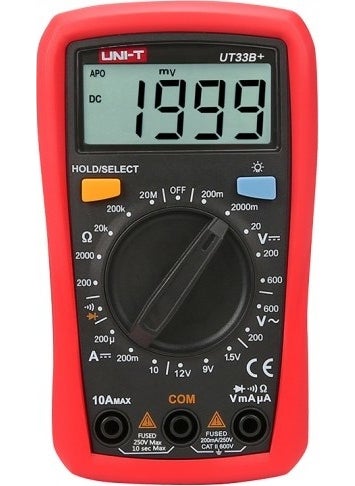

Uni-T UT33B+ Digital Multimeter

Uni-T UT33B+ Digital Multimeter

The next-generation UT33+ series redefines performance standards for introductory digital multimeters. Our innovative industrial design ensures that these products can withstand a 2 meter drop. The new LCD screen layout offers a better user experience. The UT33+ series safety standards have been developed to ensure that users can operate safely in the CAT ll 600V environment.
Main Features

1. Clear LCD screen
2. Equipped with comfortable protective cover, test lead hanging slot
3. 2m drop-proof with sensitive protection
4. Automatic shutdown
5. Auto backlight off
6. Loud buzzer
7. Ergonomically designed rotary switch


Max.Dc Current: 10 Amps
Max.Ac Current: 10 Amps
Max.Dc Volt : 600 Dc Volt
Max.Ac Volt : 600 Ac Volt
Usage Area: Handheld Multimeter

Features range accuracy
UT33B+
DC voltage (V) 200.0mV? 600V ±(0.5%?3)
AC voltage (V) 200.0mV? 600V ?
200.0V? 600V ±(1.2%+3)
DC current (A) ? 10.00 of 200.0? ±(1.0%+3)
AC current (A) ? 10.00 of 200.0? NA
Resistor (?) 200.0? 200.0M? ?
200.0 ?? 20.00M? ±(0.8%+2)
Capacity (F) 2,000nF? 2,000mF NO
Features
Max screen ? 1999
Auto shut off? ?
Auto backlight off? ?
Diode test ? ?
Continuity buzzer? ?
Drop test? 2m
Test probe holder ? ?
Security assessment ? CAT? 600V
Range selection? Manual
Battery test ? 1.5V / 9V / 12V
Temperature (°C / °F) ? ?
NCV? ?
general features
Power AAA battery (zn-mn) 1.5V × 2
LCD size 66mm*51mm
Product color Red and gray
Product net weight 473g
Product size 131mm×95mm×58mm
Standard accessories Test lead, manual
Standard individual packaging Gift box, manual
Standard quantity 60pcs per carton
Standard cardboard measurement 640mm×310mm×350mm
