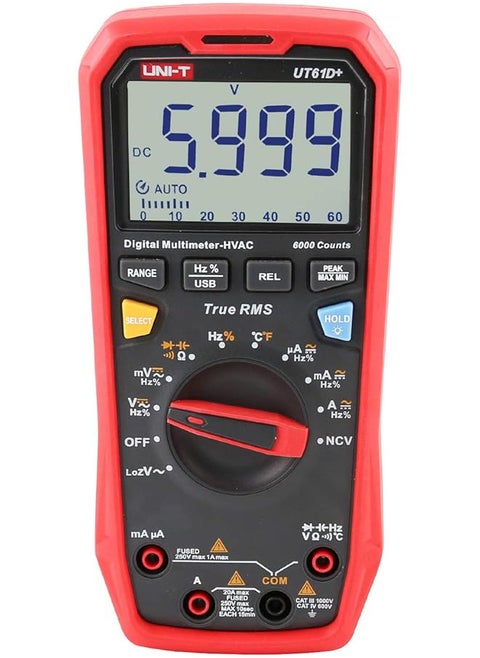

UNI-T UT61D+ Digital Multimeter True RMS AC/DC Voltage Current Resistance Capacitance r

Product description UT61+ series are reliable true RMS digital multimeters with display counts 6000(UT61B+/D+)and22000 (UT61E+).It can measure up to 1000V AC/DC voltage and designed with a safety rating of CAT III 1000V/CAT IV 600V. This series also features audio and visual alarm,high voltage/current and temperature warnings.its built-in andlog bar; and USB communication functions can help you quickly and easily visualize neasurement results. Data hold/relative mode MAX/MIN USB communication/low battery indication LCD backlight/Ture RMS Auto/manual range Full range protection High voltage/current frequency measurement NCV/diode test/continuity test Auto power off High voltage alarm Specification: Safety Ratings: CAT III 1000V/CAT IV 600V AC voltage (V): 1000V±(1%＋3) DC voltage (V): 1000V±(0.5%＋3) AC current (A): 20A±(1.2%＋5) DC current (A): 20A±(1%＋2) Resistance (Ω): 60MΩ±(1%＋2) Capacitance (F): 60mF±(3%＋5) Frequency (Hz): 10MHz±(0.1%＋4) Duty cycle (%): 0.1%~99.9% Temperature (℃/℉): -40℃~1000℃/-40℉~1832℉ Display count: 6000 Bandwidth (Hz): 40~10kHz LoZ ACV√ Peak Hold √ Analog bar: 31 Package includes: 1x Multimeter 1x Test Leads 1x USB cable 1x Temperature multi-purpose socket 1x English manual
