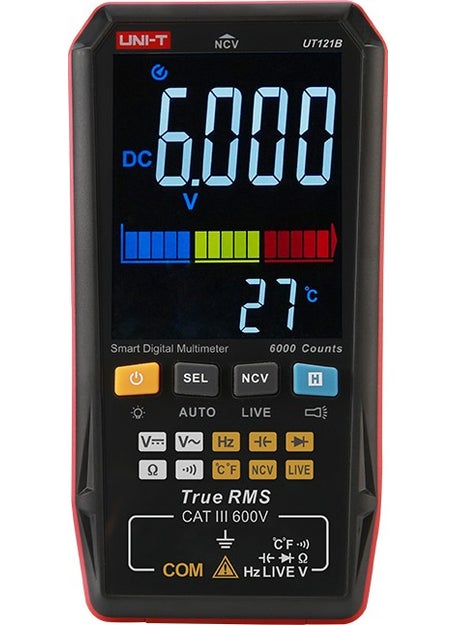

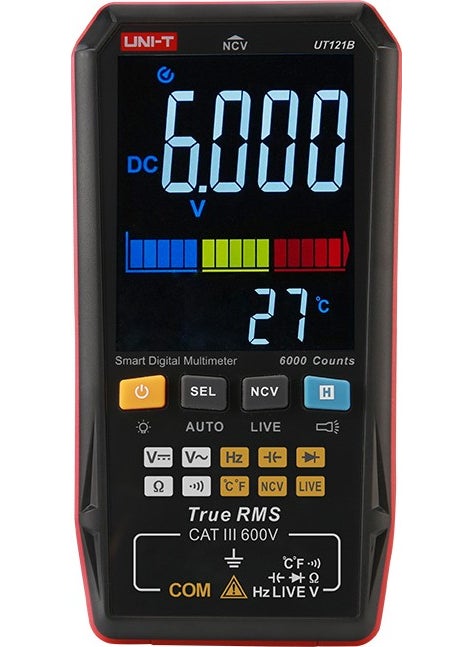

UT121B Smart Digital Multimeter Tester

Color	Black red
Usage Type	Hand Type

UNI-T Smart Digital Multimeter UT121B





Features of UT121 Series Smart Digital Multimeters



• True RMS
• AC 750V/DC 1000V voltage measurement
• 60MΩ large resistance measurement
• 60mF large capacitance measurement
• 99mF large capacitance measurement
• Full-scale ingress protection
• NCV/LIVE measurement
• Large size LCD screen
• 19 mm ultra-thin body
• 6000 counts
• Intelligent identification hardware

Features



• AC voltage (V)6.000V/60.00V/600.0V  6.000V/60.00V/600.0V/750.0V ±(1.5%+3)
• AC voltage frequency (Hz)10Hz-1kHz±(0.5%+2)
• DC voltage (V)6.000V/60.00V/600.0V6.000V/60.00V/600.0V/1000.0V±(1.2%+3)
• Resistance (Ω)6000Ω/60.00KΩ/600.0KΩ/6.000MΩ/10.00MΩ600.0Ω/6.000KΩ/60.00KΩ/600.0KΩ/60.00MΩ600.0Ω/6.000KΩ/60.00KΩ/600.0K Ω/6,000MΩ /60.00MΩ
• Capacitance (F)60.00nF/600.0nF~600.0μF/6000uF~60.0mF±(10%+5) 99.99nF/999.9nF~9.999μF/9.999mF~99.99mF
• Frequency (Hz)10.00Hz-10.00MHz±(0.1%+3)
• Temperature(℃/℉)–40℃～1000℃/–40°F~1832°F   ±3℃/±6℉



General features

• Number of screens6099
• Dual screen√
• auto range√
• NCV detection√
• LIVE detection√
• diode test√
• continuity bell√
•  LCD high voltage warning √
• Flashlight√
• Low battery indicator√
• auto shut off√
• Data retention√
• Category ratings CATⅢ 600V
