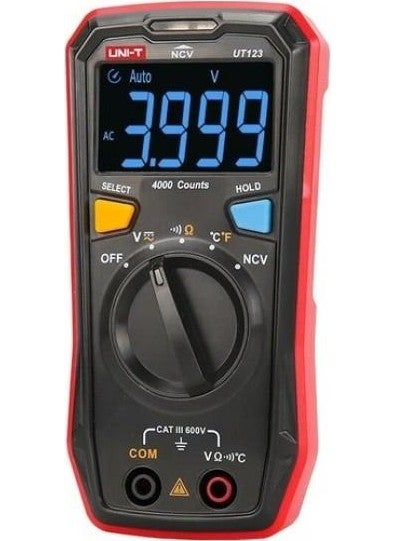

UT123 Pocket Type Mini Digital Multimeter Measuring Instrument





Unit UT123 Pocket Type Mini Digital Multimeter Measurement Instrument





The compact structure makes it easy to hold in one hand and the EBTN Led display allows users to get clear readings at maximum angle, also ideal for working in dark environments.

Battery status detection is automatically completed at startup: Green light indicates normal status; yellow light indicates low battery; the red light indicates the battery is very low and there is currently an acousto-optic indicator.

Automatic identification of AC and DC volt measurement

Intelligent non-contact electric field detection, which distinguishes weak electric field from green light, strong electric field from yellow light and super-strong electric field from red light

Full-featured protection

AC / DC Current and Voltage Resistance / Continuous / NVC / Temperature (C / F) Measurement

Features	December	UT123
DC voltage	4V / 40V / 400V / 600V	±（0.5%＋2）
alternating current voltage	4V / 40V / 400V / 600V	±(1.0%+3)
Resistance	400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 20MΩ	±(0.8%+2)
Heat	–40℃～ 300℃/–40℉～ 572℉	±4℃
Properties
Number of Images		4000
Autol Range		√
NCV		√
Continuity test		√
Acoustic optical display (NCV / continuity / battery power)		√
Low Battery Indicator	≤2.7V	√
Data retention		√
Auto Power Off	15 minutes	√
Operating temperature		0℃～40℃
