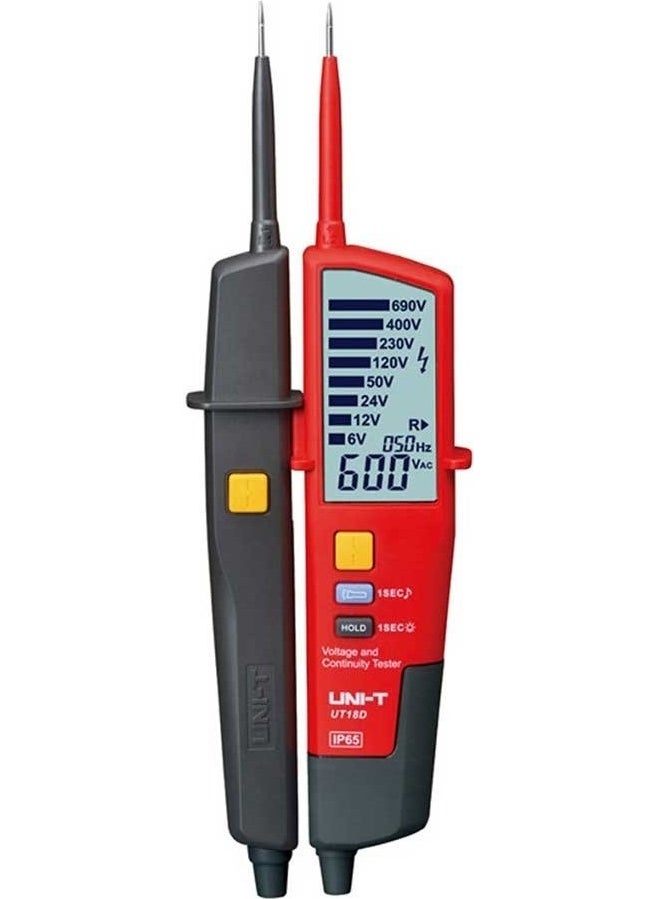

UT18D LCD Digital Voltage Continuity Tester

Unit UT18D LCD Digital Voltage Continuity Tester

Unit Digital Voltage Continuity Tester

The test device produced by the Unit brand has a protected structure.

The voltage continuity tester, which you can easily choose in many areas, SHOULD NOT BE USED in 110V electrical systems.

Product features

Voltage:6V: 5V±1V
12V: 8V±1V
24V: 18V±2V
50V: 38V±4V
120V: 94V±8V
230V: 180V±14V
400V: 325V±15V
690V: 562V±24V

Phase Rotation Test:57Vac～400Vac (3 phases)
Frequency: 50Hz~400Hz)

Single Ended (L2) Voltage Detection: Working Voltage: 100V~690V
Frequency: 50Hz~400Hz

Continuity Test:Resistance: 0Ω~100kΩ (+50% accuracy)
Beeper and LED light Indicator

RCD Test: Working voltage: 230V (50Hz~400Hz)

Polarity Detection:Positive Negative

Self-Monitoring: All LED or LCD

Voltage Display:LCD

Voltage Overshoot:Voltage Range: 713V~788V

Automatic Standby:Standby Current＜10μA

Quiet Mode: Whole range

Working light:√

Low Battery Indicator: Around 2.5V

LCD Backlight:√

LCD Display (voltage):6V~690V ±(1.5%+5)

LCD Display (Frequency):40Hz~400Hz ±(3+5)

Protection Class:IP65

Power:1.5V battery (R03)×2

Display:73.5mm x 35.5mm

Color:Red and gray

Net Weight:280g

Size:272x85x31mm

Standard Accessories: Batteries
