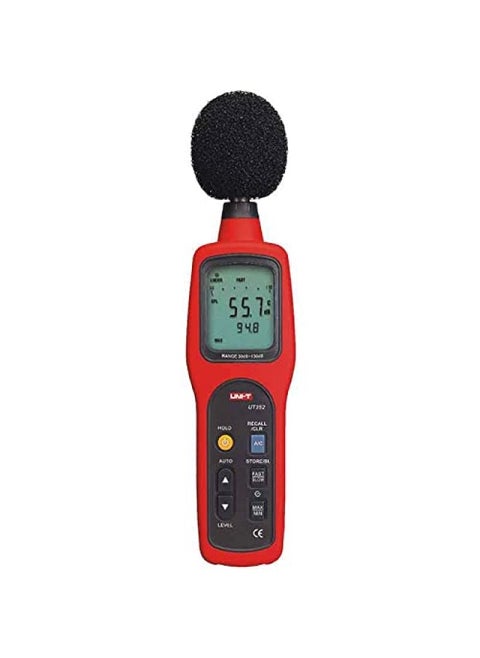

Ut352 Digital Sound Level Meter With Data Storage 30-130 Db

OverviewUT352 Sound Level Meter UNI-T s UT352 Sound Level (30 130dB) Meter has auto range and data storage function, with high/lower alarm, analogue outputs and condenser microphone. Applications: Noise control, quality control, health care and all kind of environment noise testing. UT352 UNI-T Digital Sound Level Meter with data storage(30 - 130 db) 1. MAX/MIN modes 2. Auto power off (cancelable) 3. 63 sets data storage 4. AC/DC analog signal output 5. Over/under range indication 6. Data hold, LCD backlight 7. Simulated analog bar 8. A (ear)/C (machine) weighting modes 9. Manual/auto range selectable 10. Fast/slow response rate (fast: 125ms, slow: 1s) 11. Powered by batteries or external power source SpecificationsRangeBest Accuracy Model UT352 Range30 80dB 1.5dB 50 100dB 1.5dB 60 110dB 1.5dB 80 130dB 1.5dB Frequency 31.5Hz 8000Hz Frequency WeightingA&C Sample RateFAST: 8 Times/s SLOW: 1 Times/s Features Analogue OutputsAC: 0.707Vrms full scale Output impedance: around 600 DC: 2Vrms full scale 10mV/dB Output impedance: around 100 Data Hold Auto Power Off Low Battery Indication 4.8V MAX Mode MIN Mode Data Logging 63 High AlarmDisplay OVER Lower AlarmDisplay UNDER LCD Backlight Analog Bar Graph30 130dB General Characteristics Power1.5V Batteries (LR6) X 4 LCD Size53mm X 41mm Product ColorRed and Grey Product Net Weight330g Product Size273mm X 70mm X 39mm Standard AccessoriesBatteries, Windscreen, Leather Box Standard Individual PackingGift Box, English Manual Standard Quantity Per Carton30pcs Standard Carton Measurement670mm X 385mm X 300mm (0.077 CBM Per Standard Carton) Standard Carton Gross Weight18kg 1. MAX/MIN modes 2. Auto power off (cancelable) 3. 63 sets data storage 4. AC/DC analog signal output 5. Over/under range indication 6. Data hold, LCD backlight 7. Simulated analog bar 8. A (ear)/C (machine) weighting modes 9. Manual/auto range selectable 10. Fast/slow response rate (fast: 125ms, slow: 1s) 11. Powered by batteries or external power source
