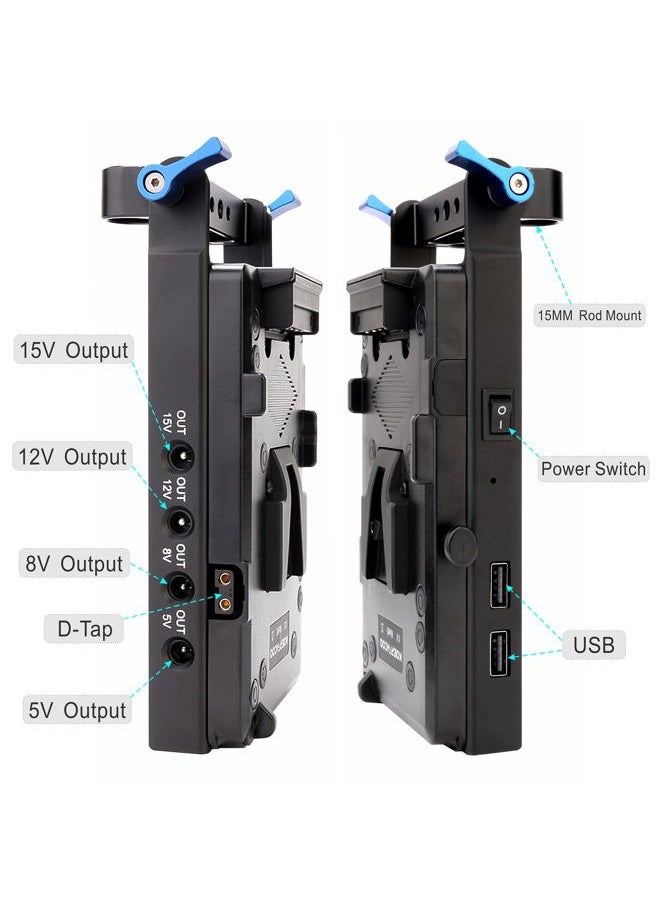

Highlights- ★ The V lock battery plate features a 15V DC barrel output, an 8V DC barrel output, a 12V DC barrel outputs, a 5V DC barrel outputs, a D-Tap output and two USB port. A power switch is provided on the side to turn everything on or off.

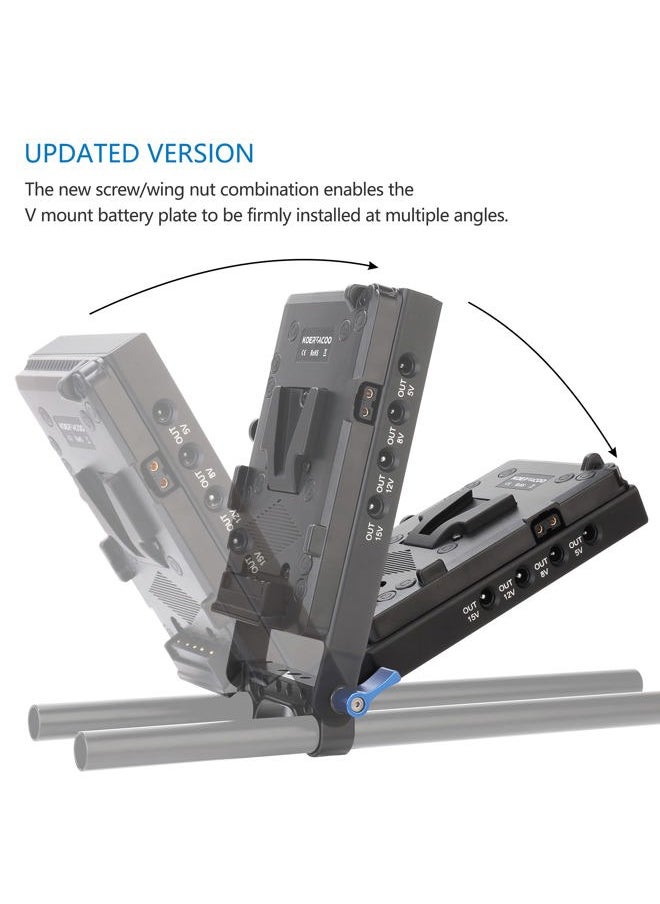

- ★ Updated version: The new screw/wing nut combination enables the V mount battery plate to be firmly installed at multiple angles.
- ★ Compatibility:Including but not limited to Sony A7 A7S A7R a7II a7SII a7RII A6000 A6100 A6300 A6500 DSLR Cameras and BMPCC 4K/6K etc.
- ★ Smart and wide applications power output systems. With the help of the battery plate Power up monitors, DSLR cameras, mobile phone, led lights, on camera flash, etc.

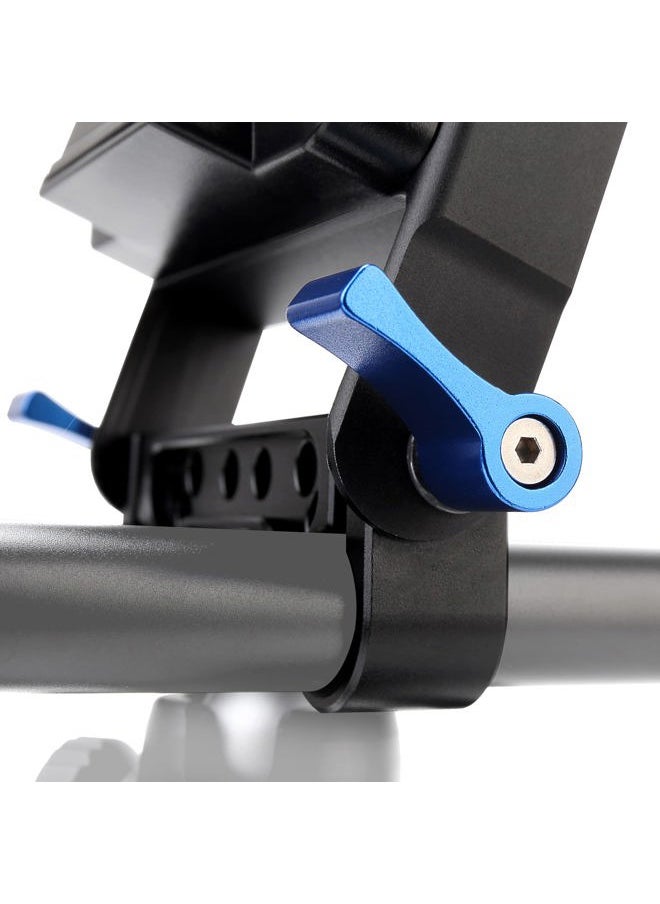

- ★ 15mm Rod clamp which suit for 15mm rod pass through on DSLR rigs and gimbals. V-Lock Mount which access the quick release the battery attachments.

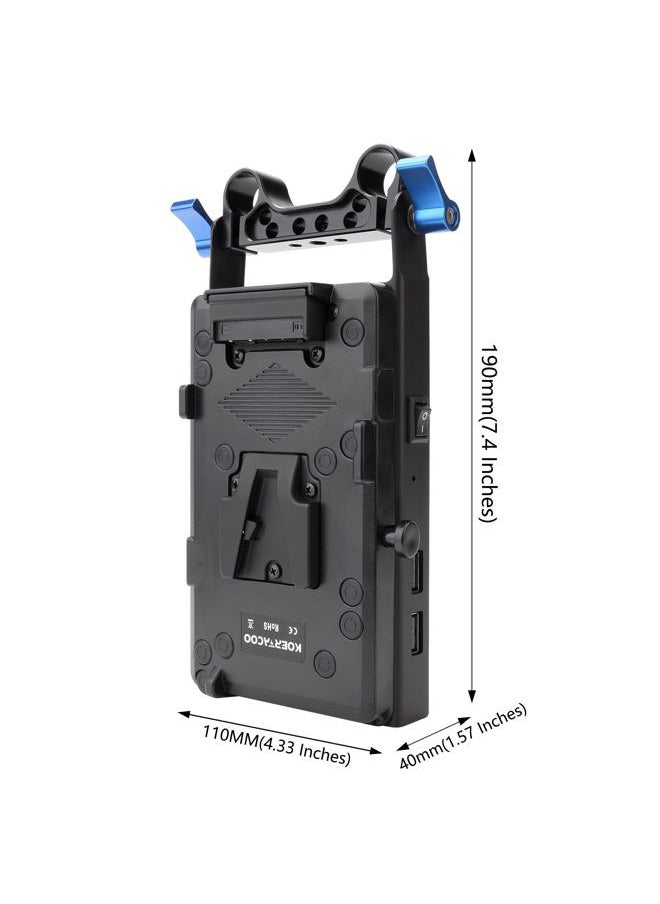

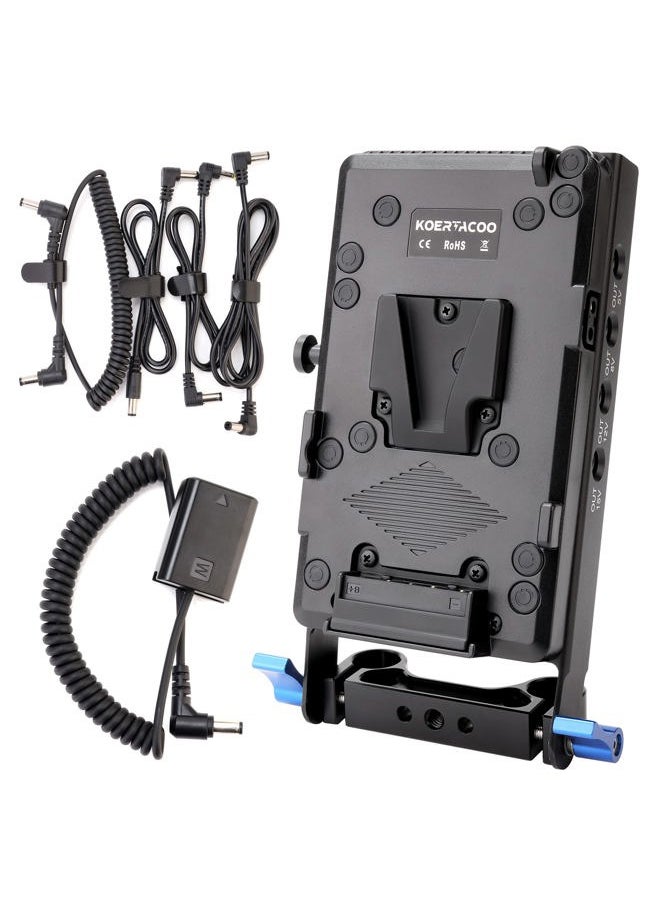

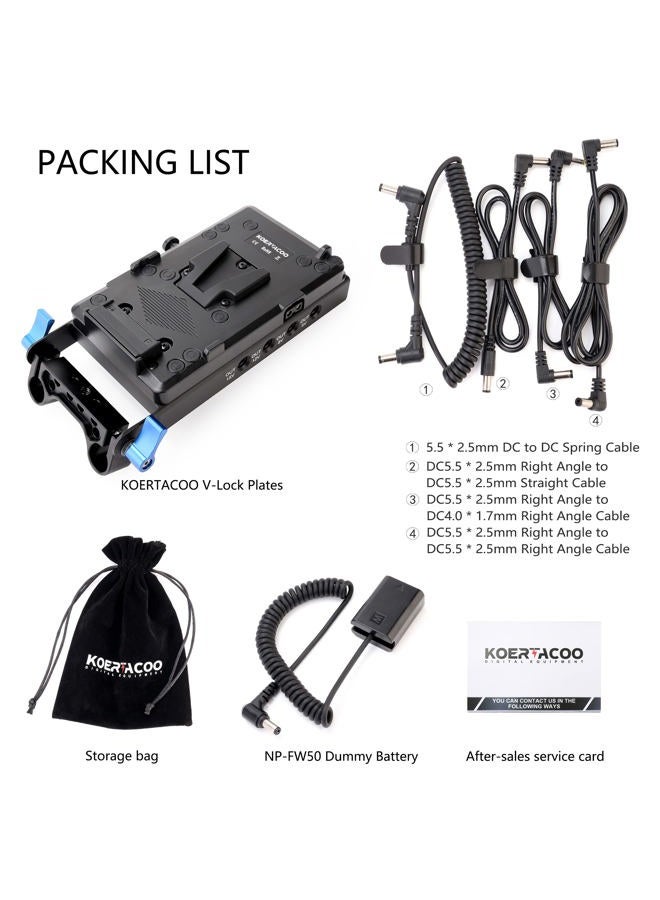

OverviewThe 15mm Rod Mount Universal V-Mount Battery Plate offers seven simultaneous outputs, providing the ability to power a variety of devices mounted on your camera rig. Power Outputs: 1 x 14.8 VDC D-Tap 1 x 15 VDC Barrel 1 x 12 VDC Barrel 1 x 8 VDC Barrel 1 x 5 VDC Barrel 2 x USB port Compatibility: Including but not limited to: Blackmagic Design Pocket Cinema Camera 4K/6K Sony a7, 7R, a7S, a7 II, a7S II, a7R II Sony a6500, a6300, a5100, a5000, a3000 Sony NEX-5, NEX-7, DSC-RX10 Canon 5D2, 5D3, 5D4, 6D, 6D2, 7D, 7D2, 70D, 80D, 5DSR Battery Plate Type: V-Mount. Accessory Mounting: 15 mm Rod Mount. Dimensions(L x W): 7.4x4.1" / 190x105mm. Material of Construction: Aluminum, Plastic. Package Include: 1 x KOERTACOO V-Lock Plates. 1 x NP-FW50 Dummy Battery Adapter. 1 x 5.5 * 2.5mm DC to DC Spring Cable. 1 x DC5.5 * 2.5mm Right Angle to DC4.0 * 1.7mm Right Angle Cable. 1 x DC5.5 * 2.5mm Right Angle to DC5.5 * 2.5mm Right Angle Cable 1 x DC5.5 * 2.5mm Right Angle to DC5.5 * 2.5mm Straight Cable. 1 x Storage bag.
Compatible Phone Models:
Sony
Connectivity Technology:
USB
Connector Type:
Barrel Connector
Input Voltage :
12 Volts
Included Components :
1 x KOERTACOO V-Lock Plates, 1 x NP-FW50 Dummy Battery Adapter, 1 x 5.5 * 2.5mm DC to DC Spring Cable, 1 x DC5.5 * 2.5mm Right Angle to DC4.0 * 1.7mm Right Angle Cable, 1 x DC5.5 * 2.5mm Right Angle to DC5.5 * 2.5mm Right Angle Cable, 1 x DC5.5 * 2.5mm Right Angle to DC5.5 * 2.5mm Straight Cable, 1 x Storage bag
Special Feature:
Versatile Power Output, Improved Mounting Mechanism
