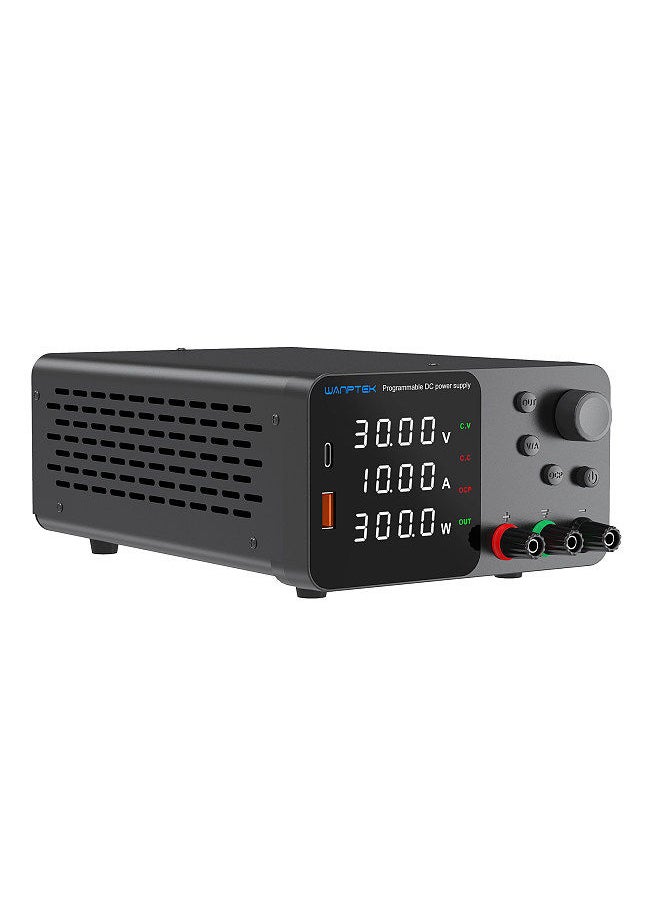

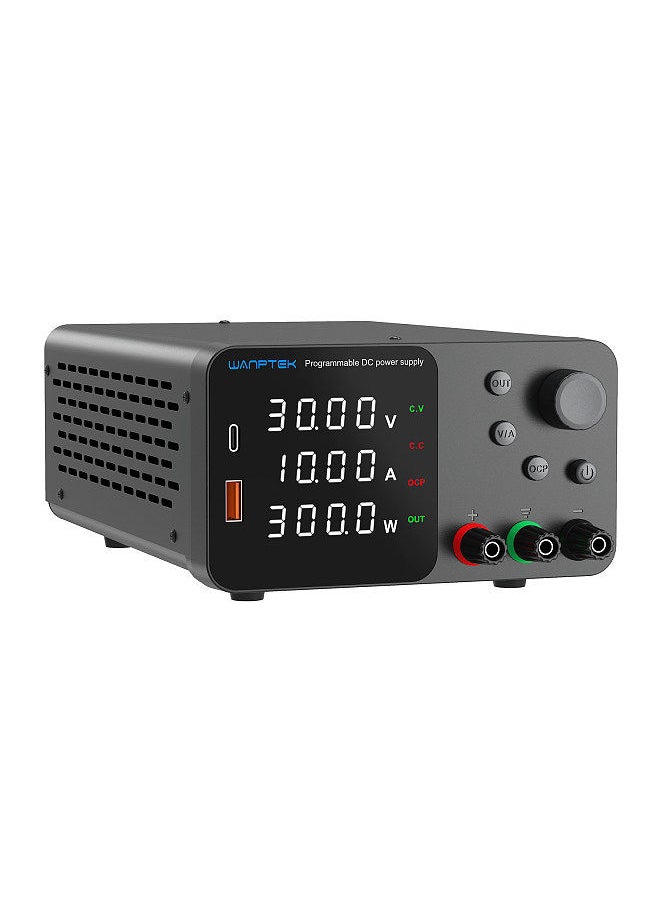

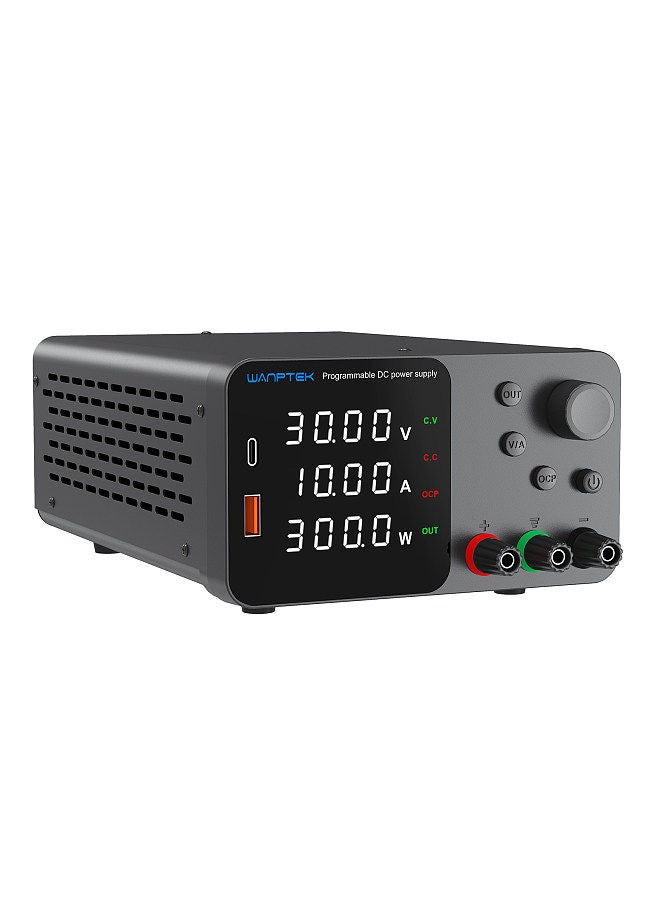

Variable DC Power Supply 30V 10A Bench Power Supply with 4-Digits LED Display Adjustable Switching Power Supply
placeholder
Variable DC Power Supply 30V 10A Bench Power Supply with 4-Digits LED Display Adjustable Switching Power Supply
placeholder
Variable DC Power Supply 30V 10A Bench Power Supply with 4-Digits LED Display Adjustable Switching Power Supply
placeholder
Variable DC Power Supply 30V 10A Bench Power Supply with 4-Digits LED Display Adjustable Switching Power Supply
placeholder
Variable DC Power Supply 30V 10A Bench Power Supply with 4-Digits LED Display Adjustable Switching Power Supply
placeholder
Variable DC Power Supply 30V 10A Bench Power Supply with 4-Digits LED Display Adjustable Switching Power Supply
placeholder
Variable DC Power Supply 30V 10A Bench Power Supply with 4-Digits LED Display Adjustable Switching Power Supply
magnifyZoom

Variable DC Power Supply 30V 10A Bench Power Supply with 4-Digits LED Display Adjustable Switching Power Supply

Sorry! This product is not available.
Available Soon
Product Overview

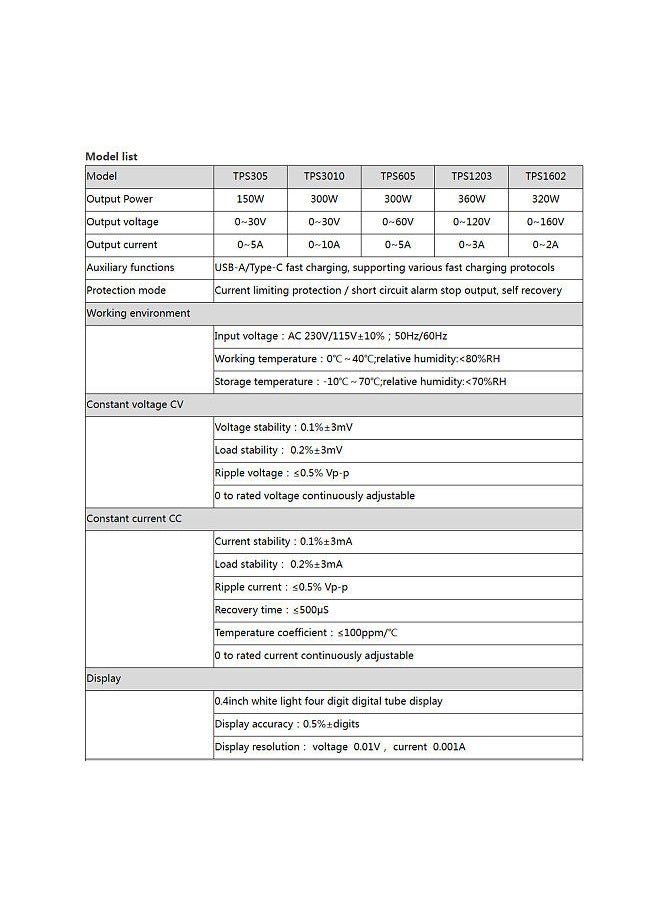

Specifications: Model: TPS305 / TPS3010 / TPS605 / TPS1203 / TPS1602 (Optional) Output Power: 150W / 300W / 300W / 360W / 320W Output Voltage: 0~30V / 0~30V / 0~60V / 0~120V / 0~160V Output Current: 0~5A / 0~10A / 0~5A / 0~3A / 0~2A Color: Black Material: ABS Input Power: AC 230V/115V ±10%; 50Hz/60Hz Operating Temperature: 0℃~ 40℃; Relative Humidity: <80%RH Storage Temperature: -10℃~70℃; Relative Humidity: <70%RH Mode: Constant Voltage (CV), Constant Current (CC) Voltage Stability: 0.1%±3mV Load Stability: 0.2%±3mV Ripple Voltage: ≤0.5%Vp-p Current Stability: 0.1%±3mA Load Stability: 0.2%±3mA Ripple Current: ≤0.5%Vp-p Recovery Time: ≤500μS Temperature Coefficient: ≤100ppm/°C Display Accuracy: 0.5%±3 words Display Resolution: Voltage 0.01V, Current 0.001A Item Size: 210 * 145 * 80mm / 8.27 * 5.71 * 3.15in Item Weight: 1200g / 2.65lb Package Weight: 1600g / 3.53lb Package Size: 30 * 19.5 * 13.5cm / 11.81 * 7.68 * 5.31in

Highlights

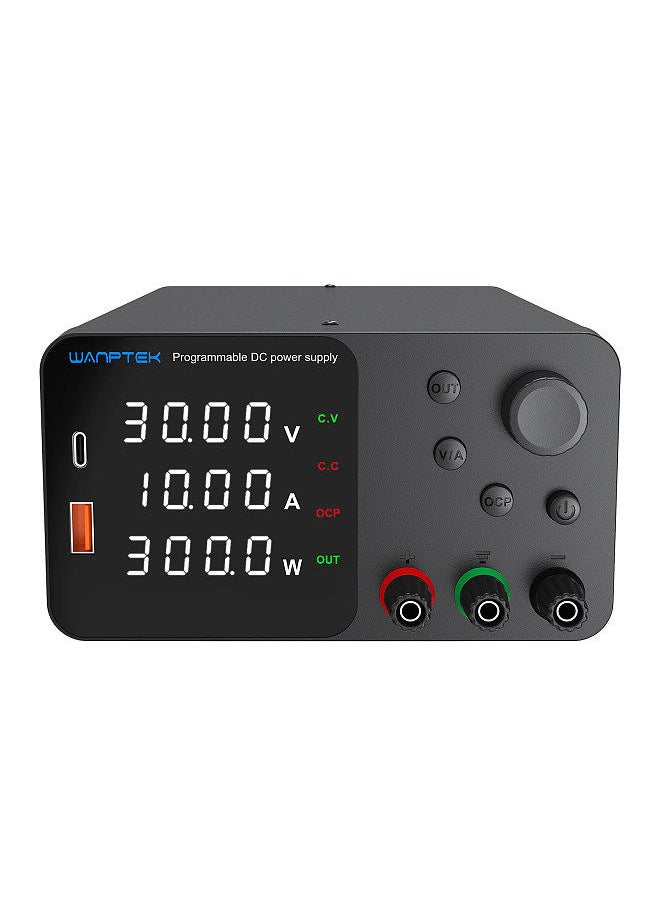

  • Precise 4-digit LED DisplayThe variable power supply with a high-definition 4-digit display, which can display three values of voltage, current and power at the same time
  • Output Enable/Disable ButtonIn the process of using the bench power supply, Output button can prevent us from forgetting to turn off the output and causing damage to the load
  • Overcurrent conservationWhen the OCP function is turned on, if the load equipment is short-circuited during operation, the adjustable power supply will automatically stop output and send a buzzer to alert the user
  • High-precision encoder knobThe DC power supply has a precise encoder knob
  • Application FieldProduction line testing, repair of mobile phones/ computers/ electrical appliances, product aging and electroplating, battery charging, laboratory, scientific research, teaching, etc.

Specifications

Colour NameBlack
Model NumberTPS3010
What's In The Box1 * DC Power Supply 1 * Power Cord 1 * Test Line 1 * User Manual (English)
Model NameTPS3010
