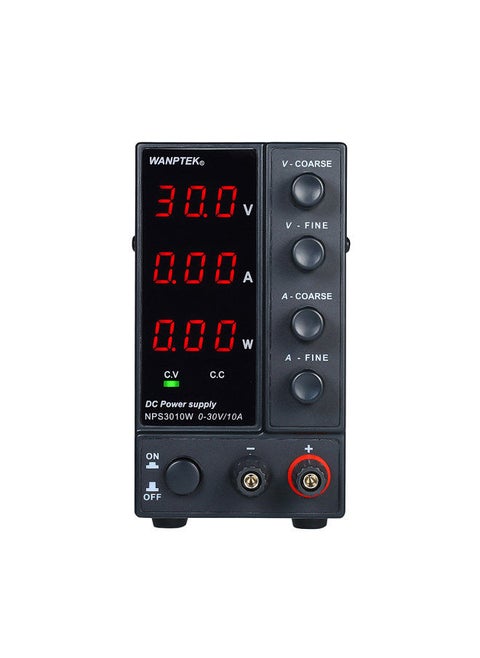

NPS3010W 0-30V 0-10A Switching DC Power Supply 3 Digits Display LED High Precision Adjustable Mini Power Supply AC 115V/230V 50/60Hz Voltage & Current Regulated Dual Output
placeholder
NPS3010W 0-30V 0-10A Switching DC Power Supply 3 Digits Display LED High Precision Adjustable Mini Power Supply AC 115V/230V 50/60Hz Voltage & Current Regulated Dual Output
placeholder
NPS3010W 0-30V 0-10A Switching DC Power Supply 3 Digits Display LED High Precision Adjustable Mini Power Supply AC 115V/230V 50/60Hz Voltage & Current Regulated Dual Output
placeholder
NPS3010W 0-30V 0-10A Switching DC Power Supply 3 Digits Display LED High Precision Adjustable Mini Power Supply AC 115V/230V 50/60Hz Voltage & Current Regulated Dual Output
placeholder
NPS3010W 0-30V 0-10A Switching DC Power Supply 3 Digits Display LED High Precision Adjustable Mini Power Supply AC 115V/230V 50/60Hz Voltage & Current Regulated Dual Output
placeholder
NPS3010W 0-30V 0-10A Switching DC Power Supply 3 Digits Display LED High Precision Adjustable Mini Power Supply AC 115V/230V 50/60Hz Voltage & Current Regulated Dual Output
magnifyZoom

NPS3010W 0-30V 0-10A Switching DC Power Supply 3 Digits Display LED High Precision Adjustable Mini Power Supply AC 115V/230V 50/60Hz Voltage & Current Regulated Dual Output

Sorry! This product is not available.
Available Soon
Product Overview

Specifications: Plug Type: UK Model: NPS3010W Output Voltage: 0~30V Output Current: 0~10A Output Power: 300W WORKING ENVIRONMENT: Input Voltage: AC 230V/115V ± 10%; 50Hz/60Hz Working Temperature: 0~40℃; Relative Humidity: <80%RH Storage Temperature: -10~70℃; Relative Humidity: <70%RH CONSTANT VOLTAGE CV: Voltage Stability: 0.1% ± 3mV Load Stability: 0.2% ± 3mV Ripple Voltage: =0.5% Vp-p 0 to rated voltage continuously adjustable CONSTANT VOLTAGE CC: Current Stability: 0.1% ± 3mA Load Stability: 0.2% ± 3mA Ripple Current: =0.5% Vp-p Recovery Time: =500μS Temperature Coefficient: =100ppm/℃ 0 to rated current continuously adjustable DISPLAY: Three-window digital tube display: voltage, current, power Display Accuracy: 0.5% ± digits Display Resolution: voltage 0.1V; current 0.01A; power 0.1W/1W SIZE AND WEIGHT: Item Size: Approx. 230 * 130 * 70mm / 9.06 * 5.12 * 2.76in Item Weight: 1372g / 48.39oz Package Weight: 1550g / 54.69oz Package Size: Approx. 29 * 18 * 10.5cm / 11.42 * 7.09 * 4.14in

Highlights

  • LED 3 digits display of voltage, current and power, high precision with single channel output.
  • Voltage stabilization, current limiting, simple operation feature the DC power supply.
  • Over voltage conservation(OVP), over current conservation(OCP) with over temperature conservation.
  • Continuously adjustable output of voltage and current with fine regulating and coarse regulating.
  • Automatic conversion of voltage stabilizing and current stabilizing, adopt current limiting conservation mode, and any external service state will not be damaged.

Specifications

Colour NameBlack
Model NumberNPS3010W
What's In The Box1 * DC Power Supply 1 * Power Cord 1 * Alligator Clip Line 1 * User Manual (English)
Model NameNPS3010W
