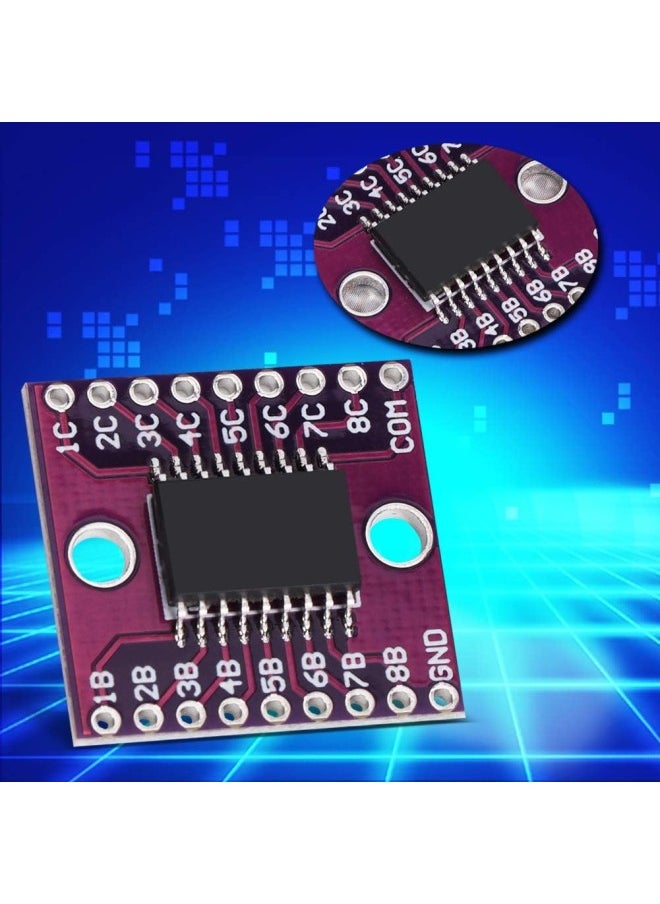

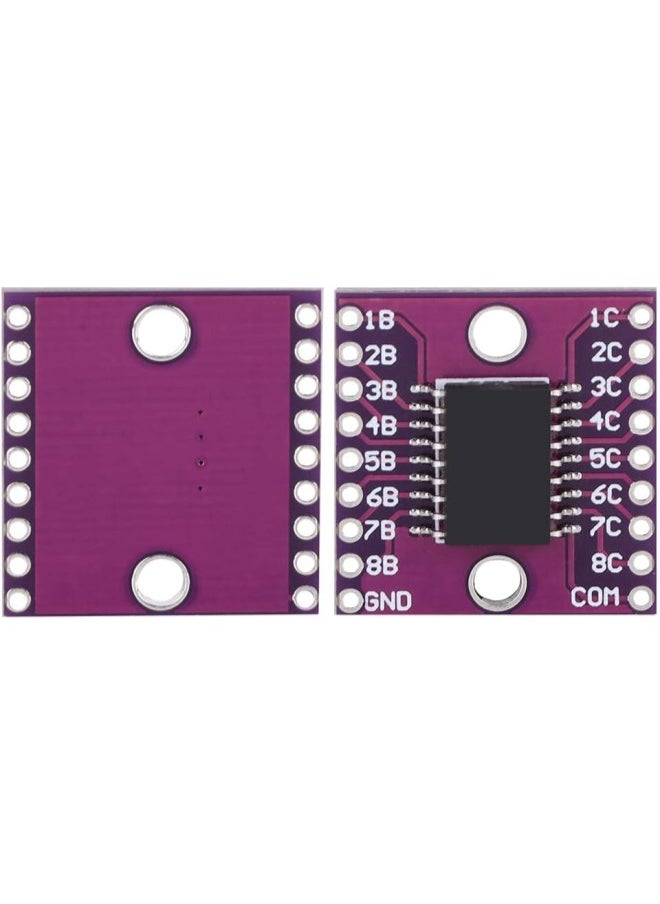

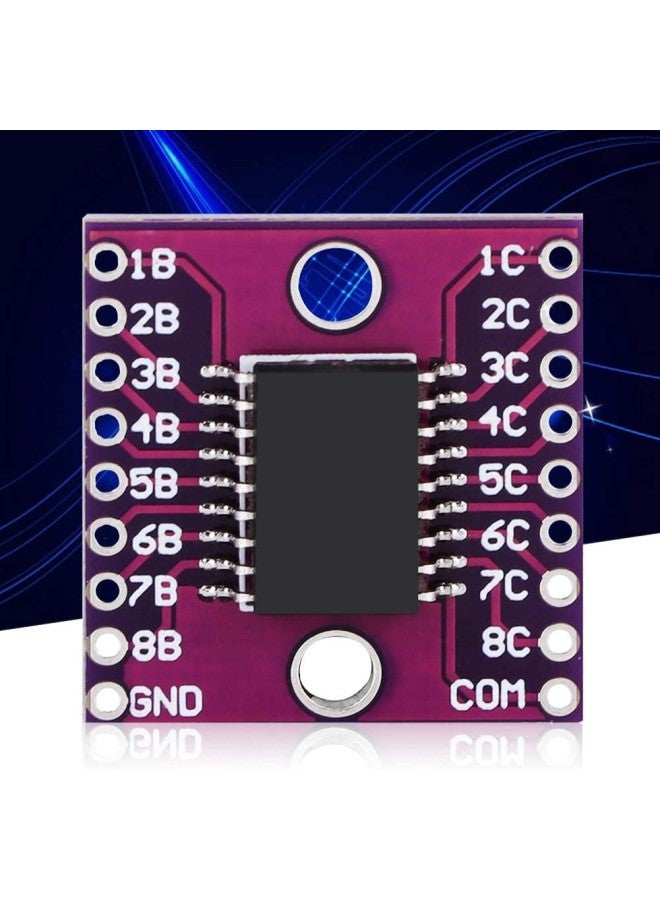

Widely Use Small Size Electric Component, ULN2803A Module, Practical Lamps Drivers For Relay Drivers Hammer Drivers Display Drivers

Feature:
1. The ULN2803A device is a 50 V, 500 mA Darlington transistor array.

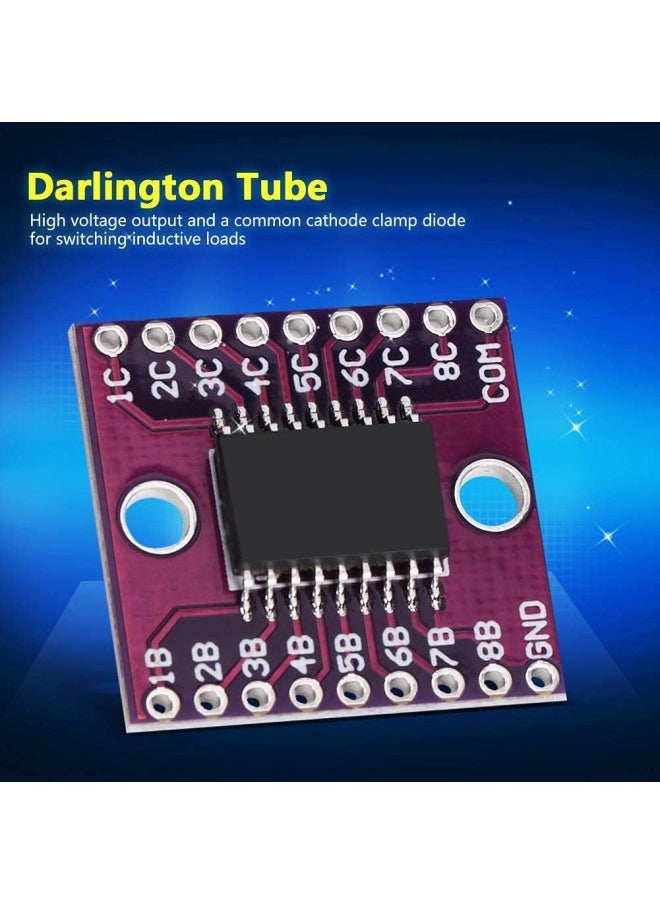

2. The device consists of eight NPN Darlington pairs, which have a high voltage output and a common cathode clamp diode for switching inductive loads.
3. The collector current rating of each Darlington pair is 500 mA. Darlington pairs can be connected in parallel to increase current capacity.
4. Applications include relay drivers, hammer drivers, lamps drivers, display drivers (LED and gas discharge), line drivers and logic buffers.
5. Each Darlington pair of ULN2803A devices has a 2.7kΩ series base resistance and can work directly with TTL or 5V CMOS devices

Spec:
Item Type: ULN2803A moduleCollector-Emitter Voltage: DC50V
Input Voltage: DC30V
Collector Current: 500mA
Output Clamp Current: 500mA
Junction Temperature: -65--150
Storage Temperature: -65--150

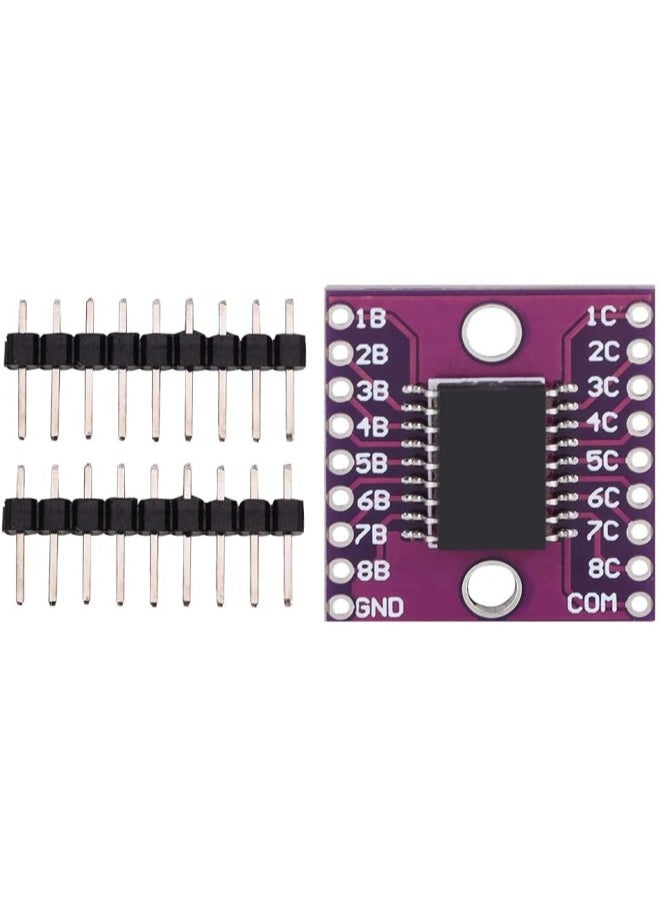

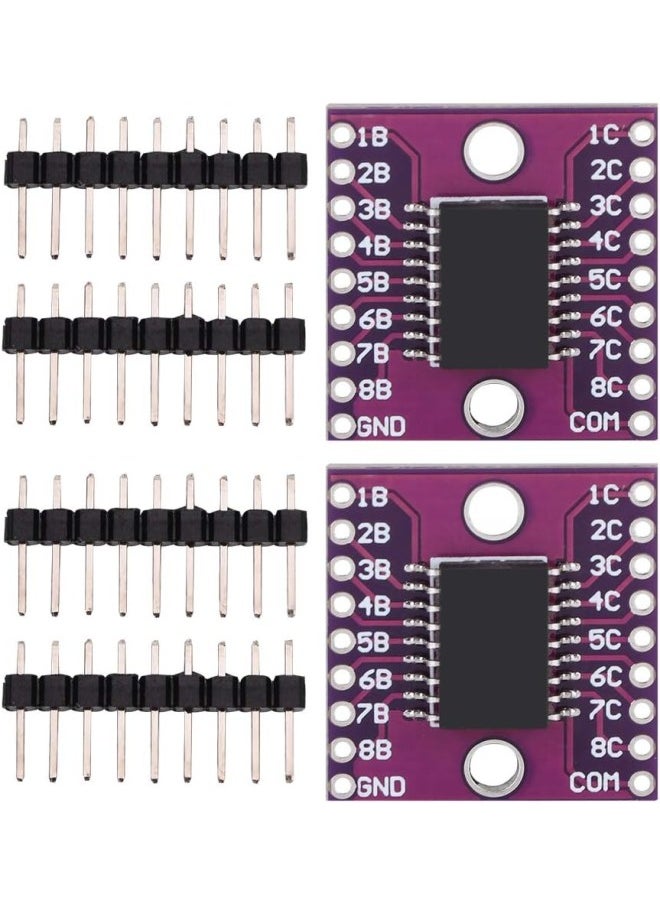

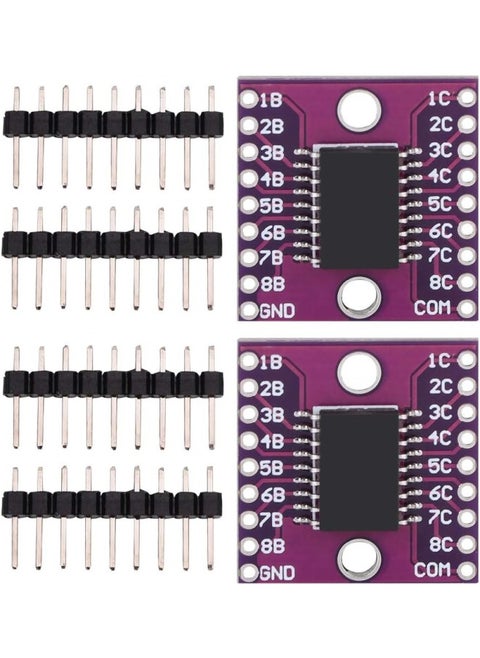

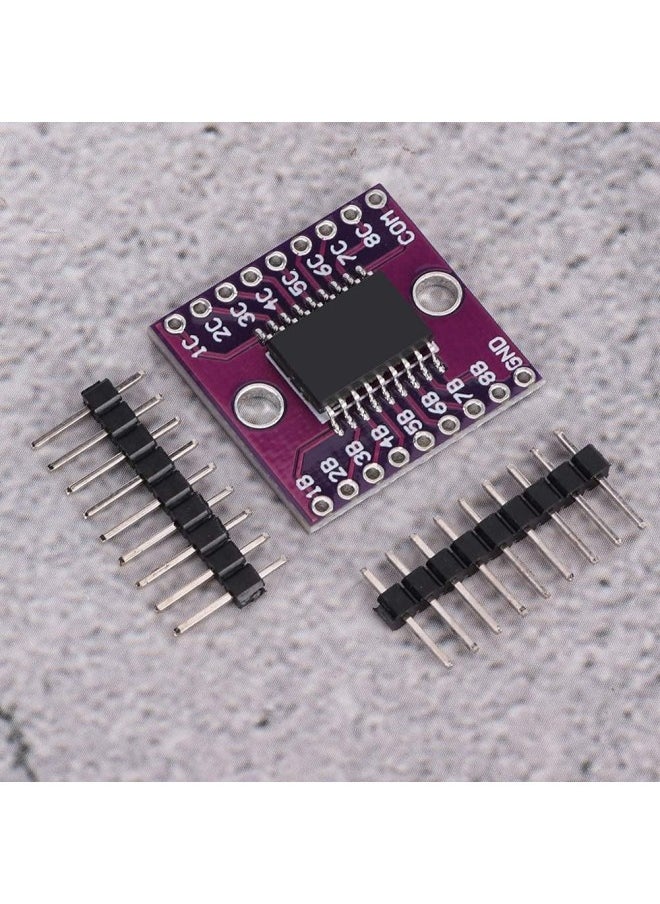

Package List:
2 x Module
4 x Pin Insertion
