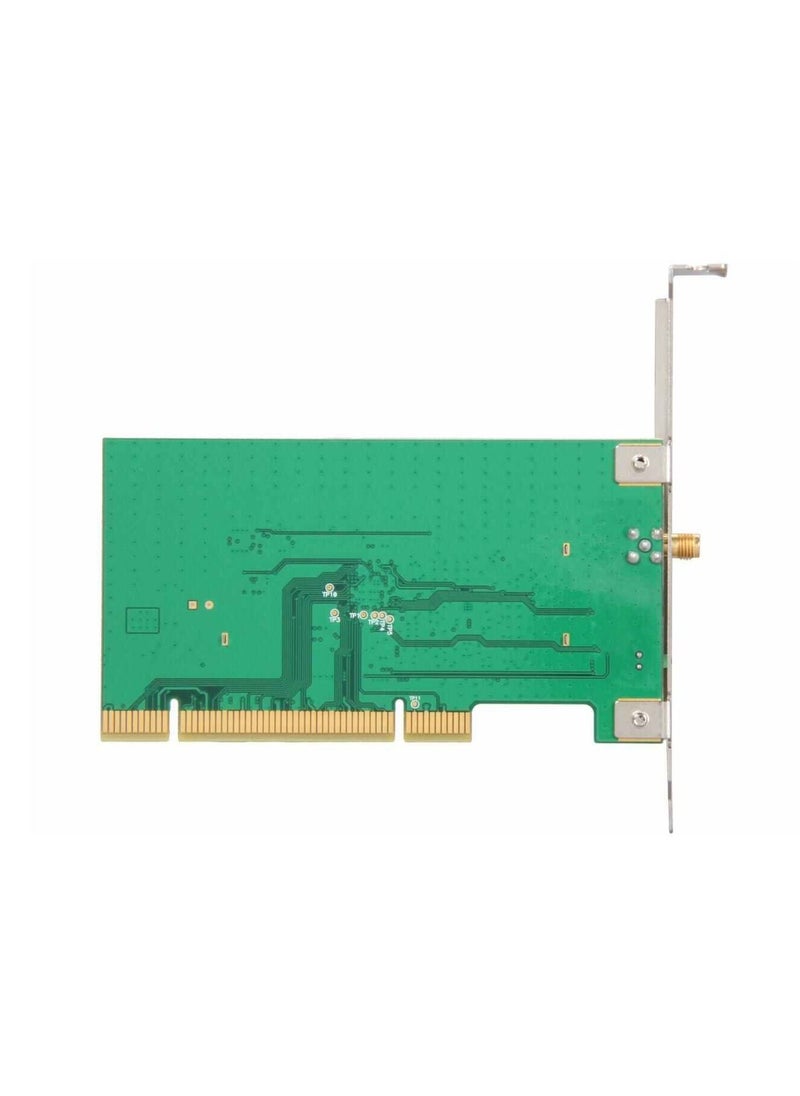

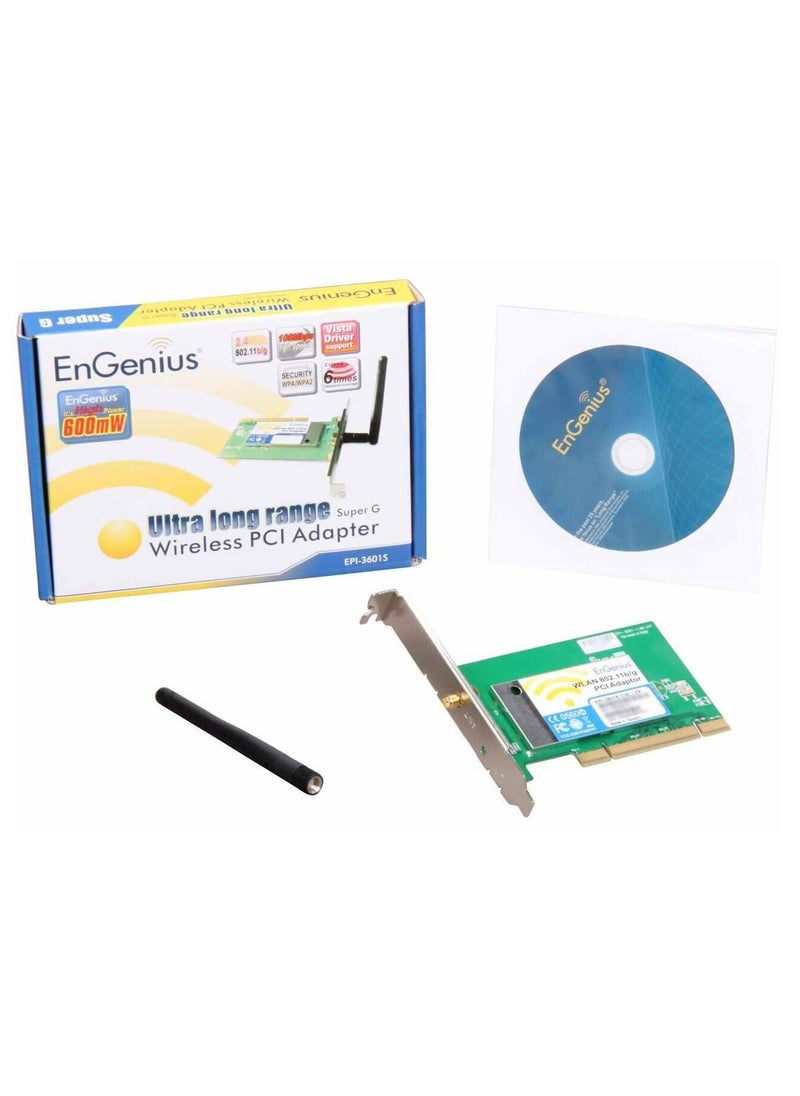

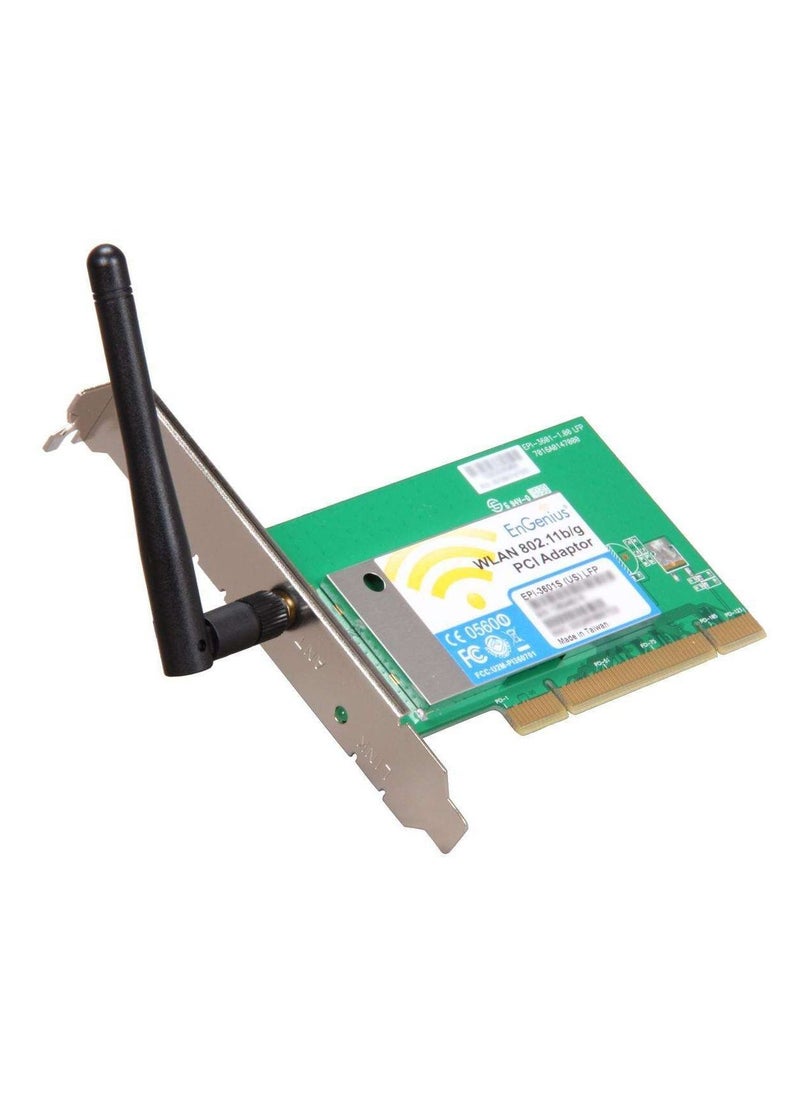

Wireless PCI Adapter EnGenius epi-3601s 802.11b/g

OverviewHaving high output power is always a great bonus (up to 600mW 28dBm), when designing your desktop computer. Introducing EnGenius Technologies' answer, the EPI-3601S. Using the latest in technology expertise, EnGenius has fine tuned the PCI card to be the longest, and most powerful RF in the market today with the most cost-effective solution for your PC. Your all-in-one solution encompassing 802.11b and 802.11g networking technology will be the last PCI high powered solution you will ever need. Senao/Engenius EPI-3601S 600mW RF power PCI card Specifications: General: • High Speed Data Rates up to 108Mbps for heavy data payloads like video streaming. • Fully interoperable with IEEE802.11b/g compliant devices • 802.11i support for enhanced security. Radio: • Frequency Band: 802.11b/g: 2.4-2.484 GHz (USA) • Media Access Protocol: Carrier Sense Multiple Access with Collision Avoidance (CSMA/CA) • Modulation Technology: Orthogonal Frequency Division Multiplexing (OFDM) 802.11g: OFDM (64-QAM, 16-QAM, QPSK, BPSK) 802.11b: DSSS (DBPSK, DQPSK, CCK) • Operating Channels 802.11b/g: 11 (North America) • Receive Sensitivity (Typical) 2.412~2.472G(IEEE802.11g) 6Mbps@ -90dBm; 54Mbps@ -74dBm 2.412~2.472G(IEEE802.11b) 1Mbps@ -95dBm 11Mbps@ -90dBm • Available Transmit Power (Typical) 2.412~2.472G(IEEE802.11g) 26dBm @6 ~ 24Mbps 24dBm@36Mbps 23 dBm@48Mbps 22dBm@54Mbps 2.412~2.472G(IEEE802.11b) 27 dBm@1, 2, 5.5 and 11Mbps Networking: • Topology Ad-Hoc, Infrastructure • Security IEEE802.1x 64/128 bit WEP WPA-PSK/WPA2 TKIP/AES Drivers: • Windows 2000, XP, Vista Physical: • Form Factor 32-bit PCI Interface 10/100 Ethernet Interface • RF Connector: RP-SMA Environment: • Temperature Range Operating: 0°C to 40°C (32°F to 104°F) Storage: -40°Cto 70°C (-40°F to 158°F) • Humidity (non-condensing) 5%-95% Typical
