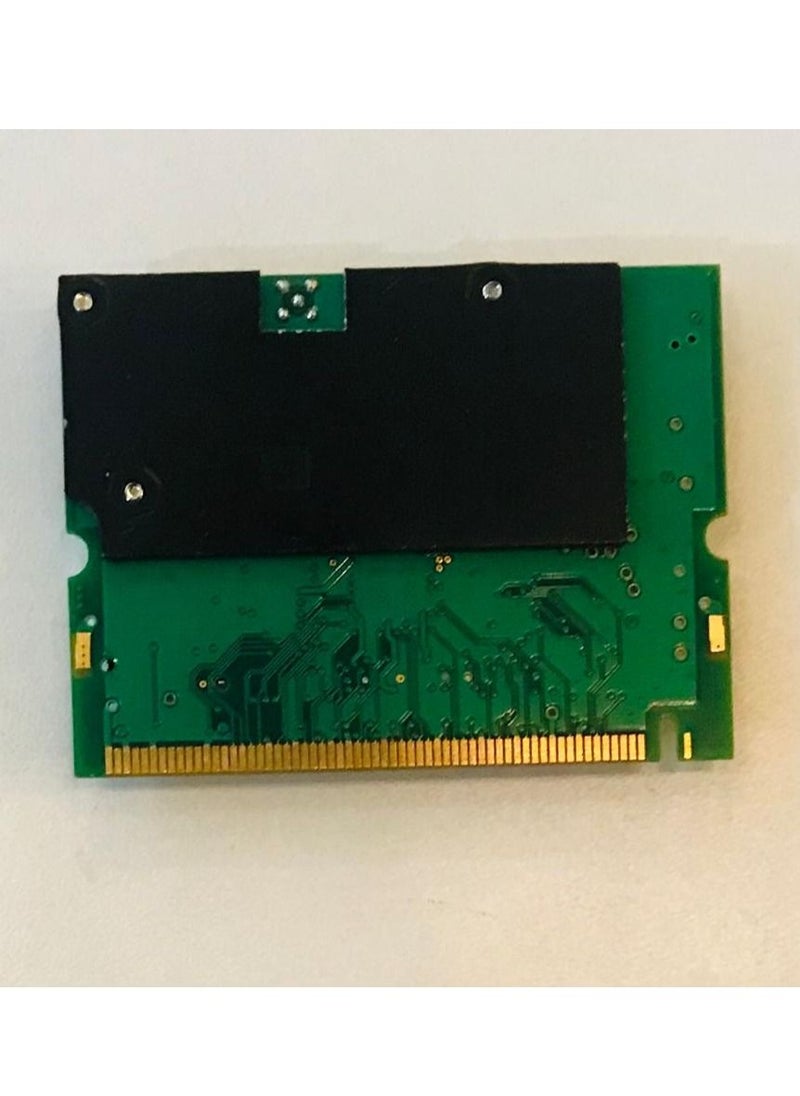

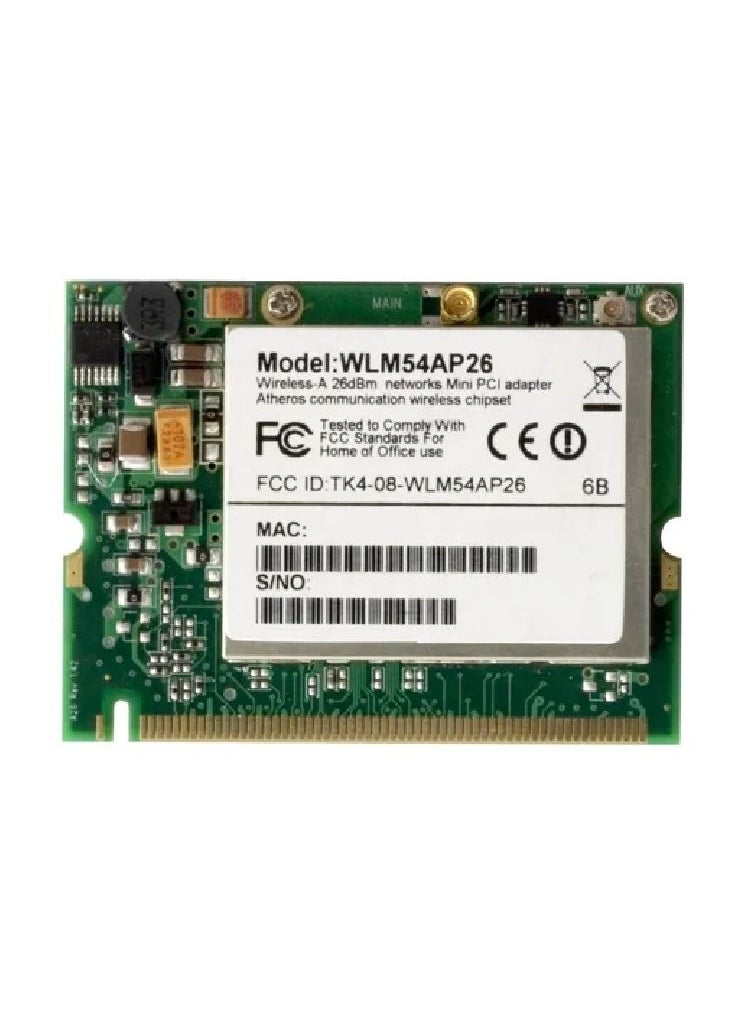

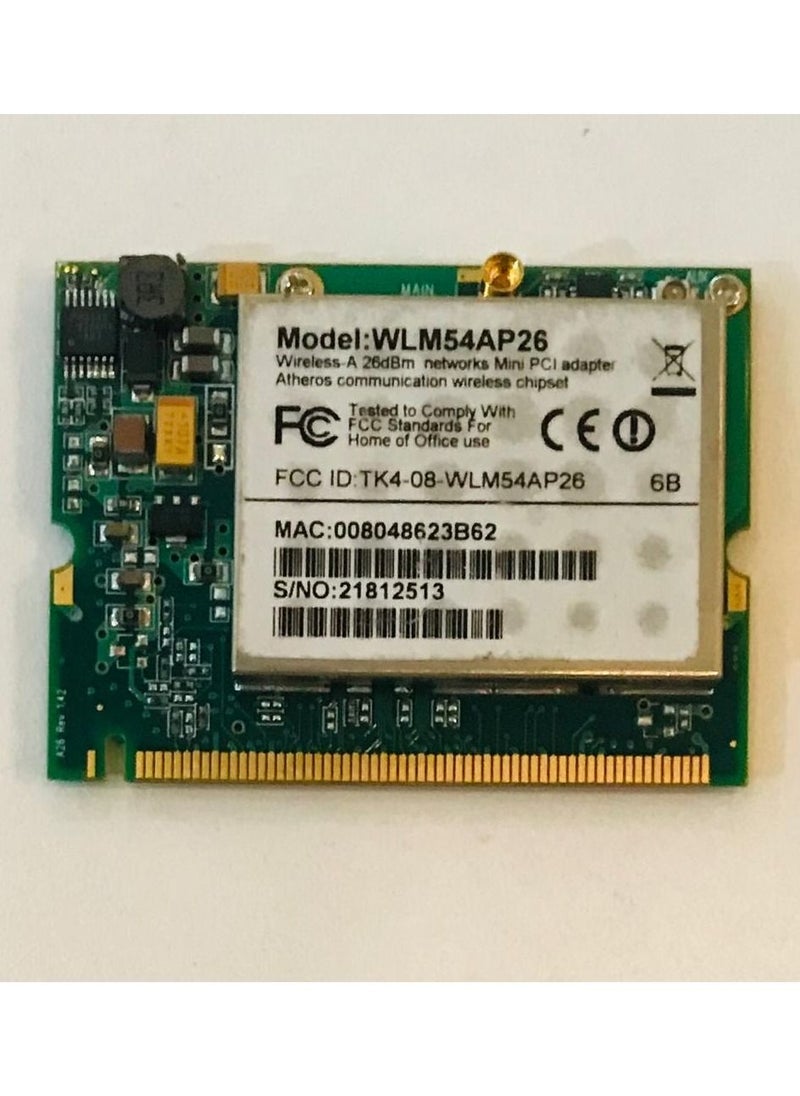

WLM54AP2 - WLM54AP26 400mW WLAN card 802.11a Super-A

OverviewCompex WLM54A-26dBm (WLM54AP26) miniPCI network adapter offers high output power of 400 mW, allowing an extended range of wireless coverage. Combined with excellent receiver sensitivity, WLM54A-26dBm is the miniPCI choice for long distance links, or those where signal levels are reduced due to minor obstructions such as trees or buildings. WLM54A-26dBm supports Super A mode, which delivers better performance at higher throughput for your network connectivity. Built on Atheros chipsets, Compex WLM54A-26dBm miniPCI network adapter can be used for all IEEE 802.11a compatible WLAN in the 5GHz band. It is ideal for integration in a wide range of OEM devices. Features 5 GHz IEEE 802.11a standard High Output Power of Up to 26 dBm Dynamic Frequency Selection (DFS) Supports Atheros Proprietary Super Mode allowing for 108 Mbps Data Speeds Wireless Encryption and Authentication Supported Transmission Power Control (TPC) Extended Distances and High Speeds Due to Better Output Signal Power High Performance with Low Power Consumption Multi-Country Roaming Support (IEEE 802.11 d) MMCX (main), U.FL (aux) Antenna Connector Suitable for Embedded System or OEM Project Affordable and Ideal for a Variety of Applications Specifications Chipset: Atheros AR5414 Host Interface: PCI Interface v 2.3 (Type III-B Mini PCI form factor) Operating Voltage: 3.3 VDC Power Consumption: 5 W Antenna Connector: MMCX (main), U.FL (aux) Standards IEEE 802.11a: 54Mbps 48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 9Mbps 6Mbps Super-A: 108Mbps 96Mbps 72Mbps 54Mbps 48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 6Mbps Frequency Range IEEE 802.11a 5.150 ~ 5.350 GHz, 5.470 ~ 5.725 GHz, 5.725 ~ 5.850 GHz (US & Canada) 5.150 ~ 5.350 GHz, 5.470 ~ 5.725 GHz, 5.725 ~ 5.875 GHz (Europe) 5.150 ~ 5.250 GHz, 5.250 ~ 5.350 GHz, 5.470 ~ 5.725 GHz (Japan) Modulation Techniques: OFMD: BPSK, QPSK, 16 QAM, 64QAM Security: 64/128-bit WEP, TKIP, AES, IEEE802.1x authentication Certificate: FCC, CE ROHS Compliance: Yes Environment Specifications Operating: -20 C to 70 C Storage: -65 C to 100 C Humidity 5 % to 95 % (non-condensing) Dimensions: 59.6 mm x 46 mm x 8 mm Weight: 18 grams
