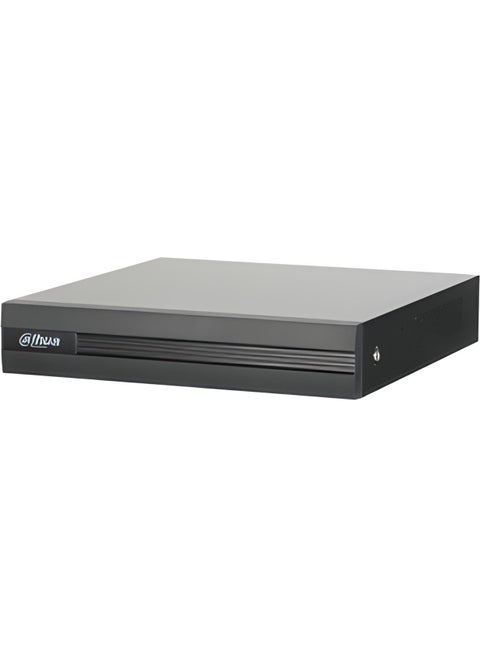

(XVR1B04-I) 4 Channel 1080N 1X6TB HDCVI/AHD/TVI/CVBS/IP Video H265+/H265 XVR Recorder

DAHUA (XVR1B04-I) 4 CHANNEL 1080N 1x6TB HDCVI/AHD/TVI/CVBS/IP VIDEO H265+/H265 XVR RECORDER

4 Channel H.265+ XVR (1x6TB SATA)
Max. Supports up to 2 MP HDCVI camera
Single Channel Live Monitoring Performance:1080P/720P real-time live monitoring
Multi-Channel Live Monitoring Performance:1080N/720P real-time live monitoring
Recording Performance:1080N @25/30fps, 720P @25/30fps on All Channels
IP Camera Input: 4+1, up to 2MP,20Mbps Bandwidth
Audio In/Out: 1/1also4 Channel Audio with HDCVI Camera with Built-in Microphone
1 HDMI, 1 VGA, 2 USB, 1 RJ45 port(10/100Mbps),P2P(Cloud Monitoring)

Dahua XVR1B04 Technical Specifications
System
Main Processor	Embedded Processor
OS	Embedded LINUX
Video and Audio
Analog Camera Input	4 Channels, BNC
HDCVI Camera	1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera	1080P @ 25/30, 720P @ 25/30fps
TVI Camera	1080P @ 25/30, 720P @ 25/30fps
CVBS Camera	PAL / NTSC
IP Camera Input	4+1, each channel up to 2MP
Audio In/Out	1/1, RCA
Two Way Talk	Audio re-in/out, RCA
Record
Compression	H.265 + / H.265/H.264 + / H.264
Resolution	1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
Registration Rate	Main Stream: 4 Channels: All channels 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps) Substream: 4 Channels: CIF/QCIF (1~15fps)
Bitrate	32Kbps ~ 4096Kbps Per Channel
Recording Mode	Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Recording Interval	1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Audio Compression	AAC (only for channel 1), G.711A, G.711U, PCM
Audio Sample Rate	8KHz, 16 bits Per Channel
Audio Bitrate	64 Kbps Per Channel
Screen
Interface	1 HDMI, 1 VGA
Resolution	1920×1080, 1280×1024, 1280×720
Split Screen	If IP extension mode is not enabled: 4 Channels: 1/4 When IP extension mode is active: 4 Channels: 1/4/6
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
network
Interface	1 RJ-45 Port (100M)
Network Function	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, Alarm Server, P2P, IP Search (support Dahua IP camera, DVR, NVS supports, etc.)
Max. User Access	128 users
Smartphone Support	iPhone, iPad, Android
ONVIF	ONVIF 16.12, CGI Compatible
Video Detection and Alarm
Trigger Events	Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Ringer and Screen Tips
Video Detection	Motion Detection, MD Zones: 396 (22×18), Video Loss, Tampering and Diagnostics
Alarm Input	–
Alarm Output	–

Playback and Backup
Playback	1/4
Search Mode	Time/Date, Alarm, MD and Exact Search (to the second)
Playback Function	Play, Pause, Stop, Back, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode	USB Device / Network
Storage
Internal HDD	1 SATA Port, up to 6 TB capacity
eSATA	–
Auxiliary Interface
USB	2 USB 2.0
RS232	–
RS485	–
Power
Power source	DC12V/1.5A
Power consumption	<10W
Safe
Dimensions	Cooper 1U, 197mm×192mm×41mm
Device with PFH101 Rack Mount Tray	483mmx281mmx56mm
Net weight (without HDD)	0.54kg 0.56kg
Setup	Desktop installation
Environmental Conditions
Working conditions	-10°C~+45°C (+14°F~+113°F), 10~90%RH
Endurance Conditions	-20°C~+70°C (-4°F~+158°F), 0~90%RH
Compatibility with Other Brands
Compatibility with Other Brands	Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotek, Vivotek and more
Certificates
Certificates	FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1 / IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1
