Zoyi Zt-98 Multimeter Measurement Instrument Ac Dc Voltage Current Resistance Diode Meter Measuring Device

Zoyi ZT-98 Multimeter Measuring Instrument Features

• Description: Digital Multimeter
• Main Measurements: AC/DC voltage, AC/DC current, resistance, diode and continuity test
• Large LCD screen
• 550V protection in Resistance, Capacitance and Frequency ranges
• Maximum Screen Count: 2000
• AC Voltage : 0.1mV to 750V
• DC Voltage : 0.1mV to 1000V
• Resistance: 0.1 ? with 20M?
• AC Current: 0.1uA to 200mA
• DC Current: 0.1uA to 200mA
• Counter: 60000
• backlight
• Polarity identification
• Low voltage indicator
• current measurement
• auto shut off
• Size: 130*65*30mm
• Power :3 V (1.5 V AAA batteries * 2 pcs)
• Working Environment: Temperature: 0 ~ 40°C / Average Humidity: 80%
• Easy operation, continuous and reliable performance
• Model : ZT-98

Other Technical Information

• DC Volt: 200mV/2V/20V (±0.8%+5), 200V/1000V (±1.0%+8)
• AC Volt: 200mV (±1.5%+8), 2V/20V/200V (±1.2%+5), 750V (±1.5%+5)
• DC Current: 20mA (± 1.5% + 5), 200mA (± 1. 2% + 5)
• AC Current: 20mA (± 2.0% + 5), 200mA (± 1. 5% + 5)
• Resistance: 200? (±2.5%+5),2K/20K/200K/2M (±1.0%+5),20M? (±2.5%+5)

Package Included

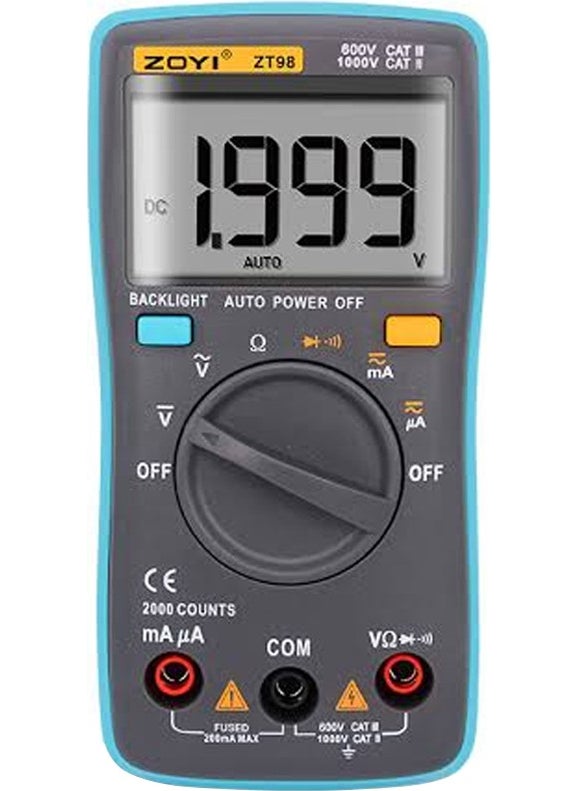

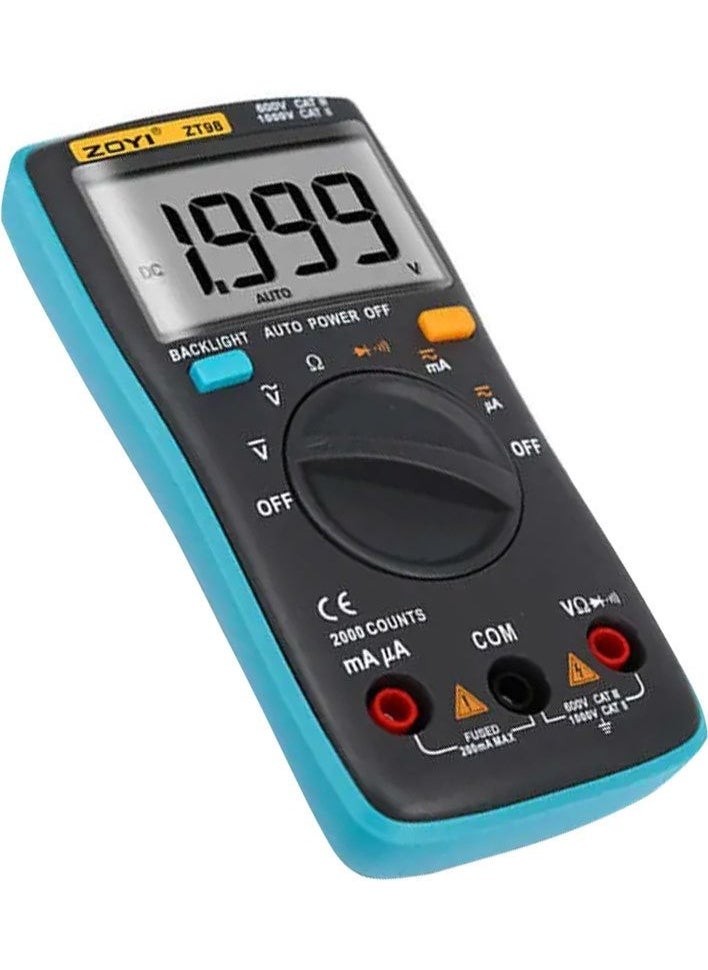

• Zoyi ZT-98 Multimeter Measuring Instrument
• Electronic probe x 1 pair
• 1.5V AAA Battery x 2
