OverviewUni-T Ut-383 Mini Luxmeter (Light Meter)
div>

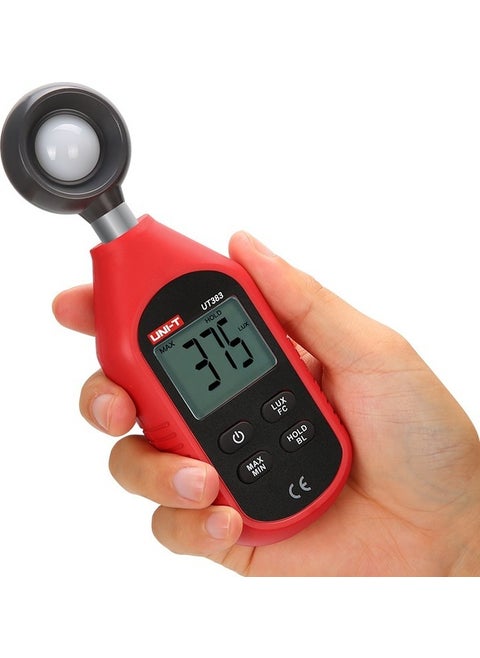

UT383 is a mini light meter equipped with photoelectric sensing technology, which can effectively represent light intensity by electrical signals, then process the data and display the result on the LCD. Since it is lightweight, compact, ergonomic and user-friendly, it is suitable for homes, offices, schools, making it a great tool for monitoring light intensity in laboratories, indoor agriculture, hospitals and other areas.
Functions | Range | solution | Truth |
Brightness | 0~9999Lux | 1LUX | ±4%rdg+5dgts |
≥10000Lux | 10LUX | ±5%rdg+8dgts |
0~9999Fc | 1Fc | Bit conversion: FC = LUX / 10.76 FC accuracy does not have to be checked. Calculated by formula. Enter the same value and check if the units comply with FC = LUX / 10.76. |
≥10000Fc | 1Fc |
|
measuring range | 0 ~ 200,000 | luxury |
|
same rate | 0~9999Fc | 1Fc | 0.5s |
overload indicator |
|
| DIE |
MAX / MIN |
|
| MAX / MIN |
Data retention |
|
| WAREHOUSE |
LCD Backlight |
|
| Yes |
Auto Power Off |
|
| Five min |
Low Battery Indicator |
|
| 3.0 ~ 3.5V |
Battery |
|
| 4.5V |
Instant consumption | study | MA | ≤30mA |
Close | NA | ≤10uA |
working environment | Heat |
| 0~40℃ |
