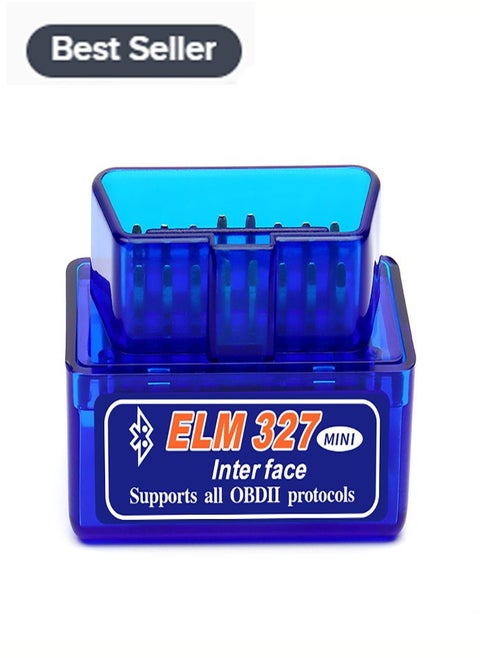

الميزات الأساسية- Very Important:This product is V2.1 Elm327,it can not support J1850 VPW and J1850 PWM communication protocol.Please accurately confirm that your car is not using the J1850 VPW and J1850 PWM communication protocol protocol before you buy it.
- The device works on OBD2 gasoline cars , and EOBD cars . Bluetooth connection, no Batteries, Cables, or Switches. - Wireless (Bluetooth) 5 ~ 10 meters.
- Notice: 1. NOT for Diesel vehicles. 2. For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.
- Suitable for system: mainly used with Android system phones, also supports Symbian system phones, Windows system PC and laptops. Compatible App: Recommended Apps are Torque Pro, Torque Lite (free), OBD Car Doctor (free), etc. on Google Play.
- Plug the device in your car's OBD2 port, start the car, enable Bluetooth on your phone or tablet, search for "OBDII" and pair with it (pin 1234), run the downloaded App with simple settings and wait until it connects your car's ECU successfully.
- If you use the same OBD on 2 or more cars, you need to disconnect Bluetooth and close App when finish testing one car, and re-match the Bluetooth when you insert the OBD into another car.
نظرة عامةNewly developed bluetooth ELM327,support all OBD-II protocols as follows:
ISO15765-4 (CAN);
ISO14230-4 (KWP2000)
ISO9141-2
Function:
1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2.Clear trouble codes and turn off the MIL ("Check Engine" light)
3.Display current sensor data, including:
4.Engine RPM
5.Calculated Load Value
6.Coolant Temperature
7.Fuel System Status
8.Vehicle Speed
9.Short Term Fuel Trim
10.Long Term Fuel Trim
11.Intake Manifold Pressure
12.Timing Advance
13. Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position
16.Oxygen sensor voltages/associated short term fuel trims
17. Fuel System status
18.Fuel Pressure
Compatible vehicles
Benz2001/02/03W203 C200K (ISO)
BMW X5 2002 (ISO) Chevrolet Aveo (ISO)
Citroen C3 2004 (ISO) ? Daihatsu YRV 2005 (ISO)
Daihatsu YRV Turbo 2006 (ISO)
Fiat Tipo 2002 (ISO)
Ford New?ocus 2006(CAN)
Honda Accord 2006 JDM (ISO)
Honda Accord Euro R 2004 JDM (ISO)
Honda City GD8 (ISO)
Honda Civic ES 1.6A (ISO)
Honda Integra Type R DC5 JDM (ISO)
Honda Jazz 1.4M (ISO)
Hyundai Getz 1.3A 2004 (ISO)
Hyundai Getz 1.6M 2004 (ISO)
Hyundai Matrix 2004 (ISO)
HyundaiSanta Fe2.4A (ISO)
Hyundai Sonata GLS (ISO)
Hyundai Sonata 2005 (ISO)
Hyundai Tuscani FX (ISO)
Kia Carens 2005 (ISO)
Kia Magentis 2005 (ISO)
KiaRioLS (ISO)
Kia Sorento SUV 2005 (ISO)
Lexus es300 Mazda 2 (CAN)
Mazda 5 (CAN)
Mazda 6 (CAN)
Mazda Premacy 2001 (ISO)
Mazda RX8 (CAN)
Mitsubishi Colt 2003 (ISO)
Mitsubishi Colt Plus 2005 (ISO)
Mitsubishi Eclipse(GST-----Turbo Car can be tested for the year 1995-2000 ；RS/GS----1994-1996 GS all can do；Turbo Car for the year 1996-2000,only have speed and TPS，can clear the DTCS)
Mitsubishi Lancer Evolution IX 2006 (ISO)
Mitsubishi Pajero 3.5 V6 2006 (ISO)
Nissan Sunny B14 (ISO)
Nissan Sunny VIP FB15 (ISO)
Nissan X-Trail 2.0L 2004 (ISO)
Nissan X-Trail 2.5L 2004 (ISO)
Peugeot 206 2001 –Only can show RPM
Peugeot 206 (ISO)
Peugeot 307 (ISO)
Peugeot 407 (ISO)
Renault Megane II 2005 (ISO)
Renault Kangoo 2006 (ISO)
Subaru Impreza 1.6TS 2002 (ISO)
Subaru Impreza WRX 2005 (ISO)
ToyotaCamry 2.0A 2004 (ISO)
ToyotaCamry 2.4A 2005 (ISO)
ToyotaCorolla Altis 1.6A 2005 (ISO)
ToyotaCorolla GLXi G8 1999 (ISO)
ToyotaCorolla G9 2002 (ISO)
ToyotaVios 2004 (ISO)
Not available veichles:
Mazda 323 Protege 2003 (OBD-I)
Mitsubishi Lancer 1.6M 2006
Nissan Sunny (N16)
Nissan Cefiro (Teana) 2005
Nissan sentra 1.8 2000/2005
Nissan Cefiro (Teana) 2005
Proton Perdana V6
Subaru Legacy GT 2005
Toyotacamry 2002
ToyotaWish JDM (Missing Pin 5 in DLC)
ToyotaIST JDM (Missing Pin 5 in DLC)
Toyotaaltis 1.8 2004
Peugeot 206 2000
Suzuki Jimny 1.3 2000
Diesel engine
Hyundai Accent 2004 (ISO)
What is included in package:
1pc x ELM327 unit(bluetooth version)
1pc x CD drive
