Tem - Jul Ns 30 kg x 1 gr Counting Scale - Image 1

متوفر قريبا

Tem

Jul Ns 30 kg x 1 gr Counting Scale

معذرة! هذا المنتج غير متوفر.

نظرة عامة على المنتج

نظرة عامة

Color	Red
Machine Usage Type	Money Controller

CAPACITY:	30KG	POWER SUPPLY	RECHARGEABLE & ADAPTER
SENSIBILITY:	1 GR	DISPLAY TYPE	LED SCREEN (RED)
PAN SIZE:	23 X 30CM	GUARANTEE PERIOD	2 YEARS

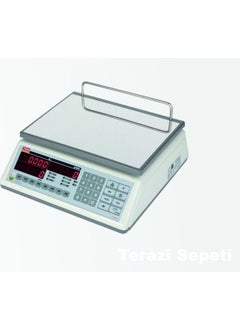

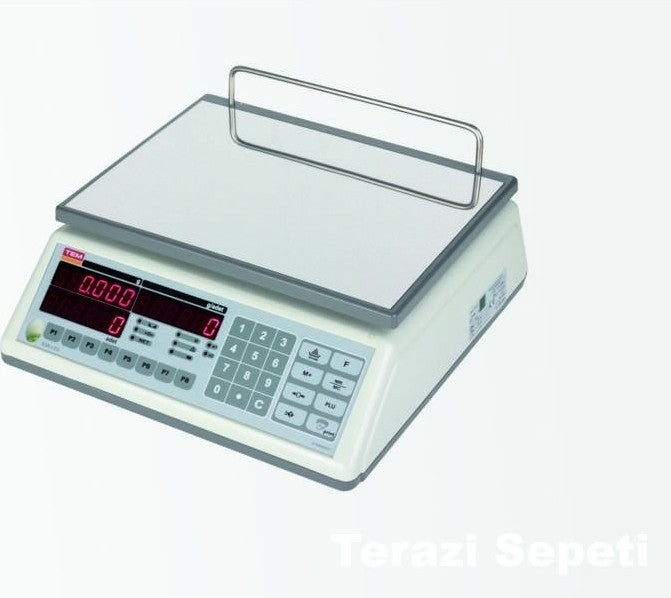

NS 30 KG X 1 GR COUNTING SCALE

Features

Industrial Counting Scale
1 / 30,000 divisions
Large LED Display 6 Digits Easy to Read LED Display Number Size 13 mm
Use with Flat or Concave Head
Automatic Unit Weight Correction 3 X 6 Digits
Ability to Tare Over and Up to Maximum Draw
250 PLUs (Unit Weight Memory), 15 One-Click PLUs
Total Memory (M+, MR Functions)
Up to 40 Hours of Battery Powered Use
Automatic and Key Reset
Resistant to Overload and Impacts
Use with Rechargeable Battery and Adapter
NOTE: Only Approved Models Can Be Used Legally in Buying and Selling Businesses.

Options

External Optional RS-232 (PC-Connectable.)

Screen Description

Zero Symbol : PWhen the latform is Empty

Balance Symbol: It goes off when the product is placed and removed. To Read Weight It is necessary to wait for the symbol to light up. If it does not light up, the weight shown on the indicator may not be correct.

NET Symbol NETN:Indicates that the Weight Value Displayed is the NET Weight (Tare Weight Subtracted).

Tare Symbol T:Indicates that weighing is carried out using tare. If the tare is not fixed, it will flash, if it is fixed, it will be on continuously. (Only Available in Models with LCD Display.)

Memory Symbol M: Blinks when total memory is full. Constantly Visible While Memory Contents Are Showing.

Example Missing Symbol: It indicates that the sample amount is small or insufficient.

Battery SymbolIndicates that the battery is being used. If it is blinking, it is necessary to charge the battery as soon as possible.

Additionally, in models with LCD displays, the 4-Piece Level Indicator Inside the Battery Symbol Shows the Battery Charge Rate. If the frame is not visible, the device is being powered by the adapter. If the level indicators are flashing while feeding from the adapter, it means the battery is being charged. If the level indicators are on, it means the battery is charged.

Keypad Functions

T Key : It is used to accept the load placed on the platform as tare.

O Key : When there is no load on the platform, it becomes zero. (Allows the Weight Indicator to Be Set to Exact Zero)

F Key : Used to Access the Settings Menu and Similar Additional Functions.

☼ key: Enables and Disables the Display Lighting.

M+ Key: Used to Add to Total Memory.

MR/MC Key: Used to Show and Delete Total Memory Content.

C KEY:It is used to reset unit weight or other variables.

''SAMPLE'' BUTTON:Takes the Entered Number as the Sample Quantity.

P KEY:It is used to get printouts from the printer. (If Printer Feature is Available)

PLU BUTTON:It is used to access unit weight programs using number keys.

P1 / P2 KEY:It is used to access unit weight programs with a single click.

KEY:The program keys are used to access the programs written below.

Operating

The device is turned on with an indicator test in which all icons on the indicator light up. Next 10 sec. During the duration, counting down numbers are displayed on the display. Then, the maximum draw and division are displayed for a short period of time and the device becomes ready for weighing. Zero Value Appears on the Display and Sembolisms are lit. Nothing should be placed on the platform until it is ready for weighing. The product to be weighed is placed on the platform. The symbol is expected to light up. Product Weight is Read on the Display.

Tare Function

The object to be tared is placed on the load platform.
TThe button is pressed. On Weight IndicatorTare"0.000” Weight Value is Read.NETTSymbol (Only in LCD Models) Starts Flashing. Tare has been taken.
The product to be weighed is placed on the platform.
The platform is cleared. NETandT

Zero Function

If there is no load on the platform, "0.000" value is seen on the weight indicator, SIf the embolus does not burn and Symbols must be litir.If the Value in the Indicator is Non-Zero (or If the symbol is not lit)Press the button to get zero.

To Learn Numbers with Examples;

Product is put on the pan.
The product placed on the pan is entered in quantity using the number keys.
Sample is waited by pressing the button.
A weight will be seen on the G / Quantity Display.
When All Products Are Placed On The Pan, The Total Number Will Be Seen On The Quantity Indicator.
To Cancel, Just Press the "C" Key.

To find out the quantity of a product whose unit weight is known;

The product whose quantity is desired to be learned is placed on the pan.
Unit Weight is Entered with the Number Keys and Waited.
Entered Unit Weight is seen on the G / Quantity Display.
The Quantity Indicator shows how many products are on the pan.

Error Messages

Private 1:Turn the Device Off and On Again. If the error is not resolved, call service.
Private 2:Wait for a while. Turn the Device Off and On Again. If the error is not resolved, call service.
Private 3:Wait for a while. When There is No Load on the Platform
Private 5:Initial Zero Range Error. Does not weigh. An attempt may have been made to open the weighing machine while the platform (load carrier) was not attached or there was weight on the platform. Close and Clear the Platform. (If the platform is not attached, replace it.) Turn the Weighing Machine On Again While There is No Load on the Platform. If this warning appears even when the platform is empty and opened, call service.
Private 8: Interface Communication Error. Turn the Device Off and On Again. If the product is not computer/printer output and the error is not resolved, call service.
Private 14:Loadcell Connection Error. Check Loadcell Cable and Connector. If the Loadcell Connector is not Plugged in, Plug it in. If the problem is not resolved, turn off the device and turn it on again. If the error is not resolved, call service.
Lo bAtt :
full(On Weight Indicator):
full(On Amount Indicator):
nnnnnn :An attempt may have been made to open the weighing machine while the platform (load carrier) was not attached or there was weight on the platform. Clear the Platform. (If the platform is not attached, replace it) If necessary, turn the weighing device on again when there is no load on the platform. For Two-Platform Models, Make Sure Both Platforms Are Clear. If this warning appears even when the platform is opened while it is empty, contact the central service by phone.

Care and Protection

1. Do not splash or spill water on the scale. Clean the Scale with a Soft and Slightly Damp Cloth.

2. Do not apply damaging liquids such as acetone, thinner, thinner or solvent to the surface.

3. Keep the Scale in a Dry and Clean Environment.

4.Keep your device in a horizontal position in a cool and dry environment when taking it to another place or when not using it for a long time.

5. We Recommend You Use a Dust Protective Cover.

6. Do not open or tamper with the device. Our Authorized Services for Any ProblemsYour e-Application

WARNINGS

Do not perform any operations other than the maintenance and repairs mentioned in this user manual.

Protect your device from extreme heat and cold, extreme impacts, water, rain, dust, dirt and RF waves.

Place your device on a flat and hard surface and level it by adjusting the feet.

Do not place more load on your device than the maximum capacity of your device.

Do not attempt to disassemble the parts to clean the device.

GUARANTEE

Your device is under a two-year manufacturer's warranty against all kinds of manufacturing defects. Contact Our Authorized Services for Any Problems.
Also Comes With Manufacturer's Warranty SCALE BASKET Under Company Warranty.
Regarding Products Purchased from Other Companies OFFICIALSERVICE and AUTHORIZED DEALER As We Provide Support.

The symbol should be lit. If it is not on It can be lit by pressing the button. Otherwise, incorrect measurements may occur. : The symbol is expected to light up. Tare Weight is Read on the Weight Indicator.Shortly After the Text AppearedThe symbol lights up. The symbol is expected to light up. The net weight of the product (after subtracting the tare) is displayed on the display. The symbol is expected to light up.Symbols Go Out. Tare Has Been Automatically Canceled. T Press the key. If the problem is not resolved, turn off the device and turn it on again. If the error is not resolved, call service. It is visible if the battery (or battery) is dead. Weighing Machine Does Not Work. It should be charged as soon as possible.Weight on Max Trailer.The amount is too large to be displayed on the display..
