أداة تشخيص ماسح ضوئي احترافية OBD2، محرك فحص تلقائي محسن مع قراءة/مسح رمز الخطأ، 35901 رمز تشخيصي للخطأ، طباعة بيانات سحابية، قارئ رمز ماسح للسيارات بعد عام 1996
FULL OBD2 SCANNER DIAGNOSTIC TOOL: plug-and-play car code reader has built-in 35901 DTCs, Read/Erase Code, View Freeze Frame, Vehicle Information, Live Data Stream(Graphing and Logging),
BUILT-IN 35901 DTCS FOR LOOKUP: With UPGRADED CHIP, our professional OBD2 scanner diagnostic tool has more comprehensive and more DTCs(35901 DTCs, compared with others that only have 3,000-10,000).
COMPATIBLE WITH 98% VEHICLES: code reader supports 9 protocols: CAN, J1850 PWM, J1850 VPW, ISO9141, and ISO14230.Compatible with 98%cars 1996(USA)/2002(EU)/2008(Asia).
Support for 10 languages: English, Chinese, Japanese, French, Spanish, German, Russian, Italian, Portuguese, and Dutch, which make it easy to use for people from different countries.

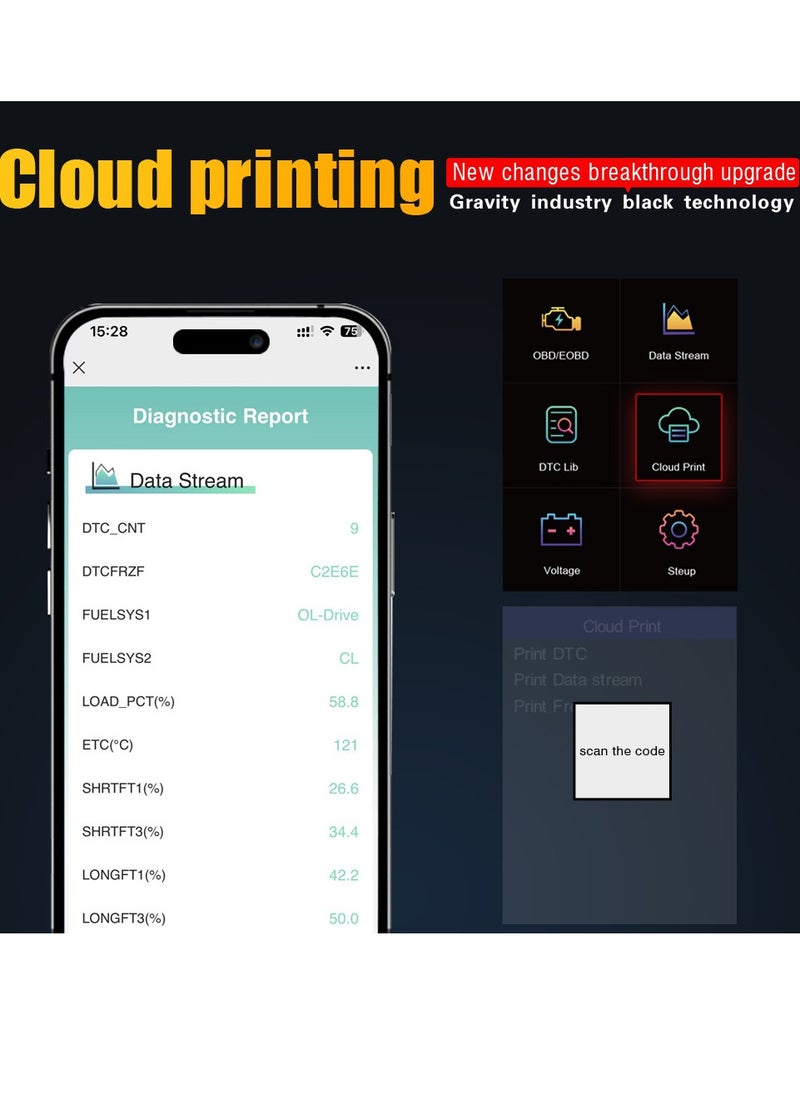

CLOUD DATA PRINT: The scanner for cars comes with cloud printing. You can print without connecting to a computer or phone with a cable.
After detecting fault codes, data streams, and freeze frame items, the OBD2 scanner will generate a QR code. You can scan the QR code, and save, share, or print diagnostic reports as needed.

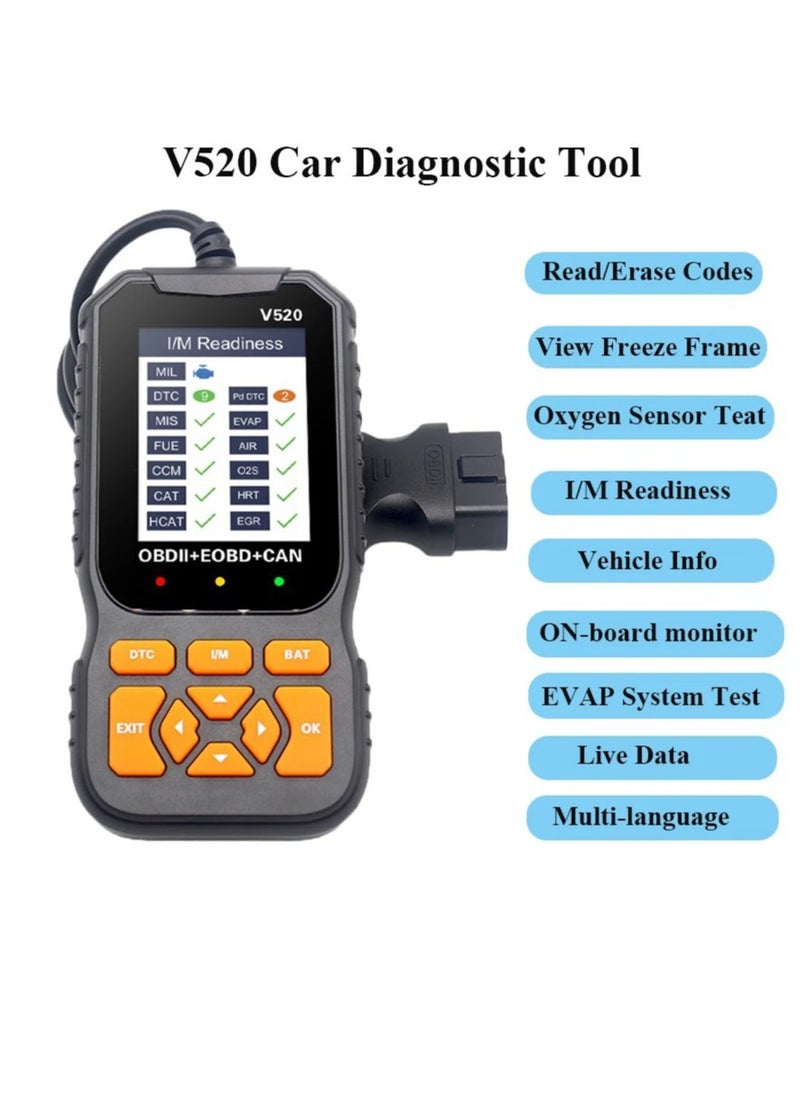

ONE-CLICK I/M READINESS STATUS: This automotive scan tool is designed for fast use. To know if you can pass the Smog Check, press I/M button(rubber) so you can get the results within 3 seconds.

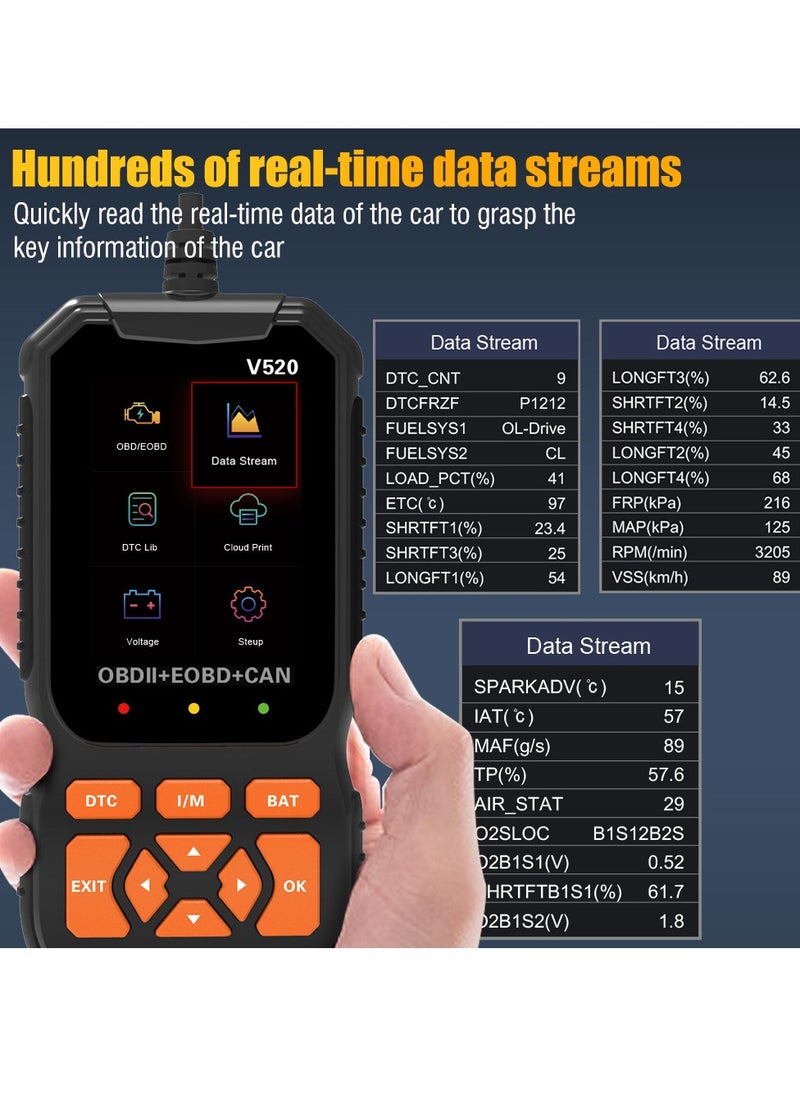

GRAPHING LIVE DATA: SmartSafe professional OBD2 scanner diagnostic tool is one useful and economical OBD2 FULL FUNCTION automotive diagnostic tool, it displays a complete live data stream in digits and graph format.

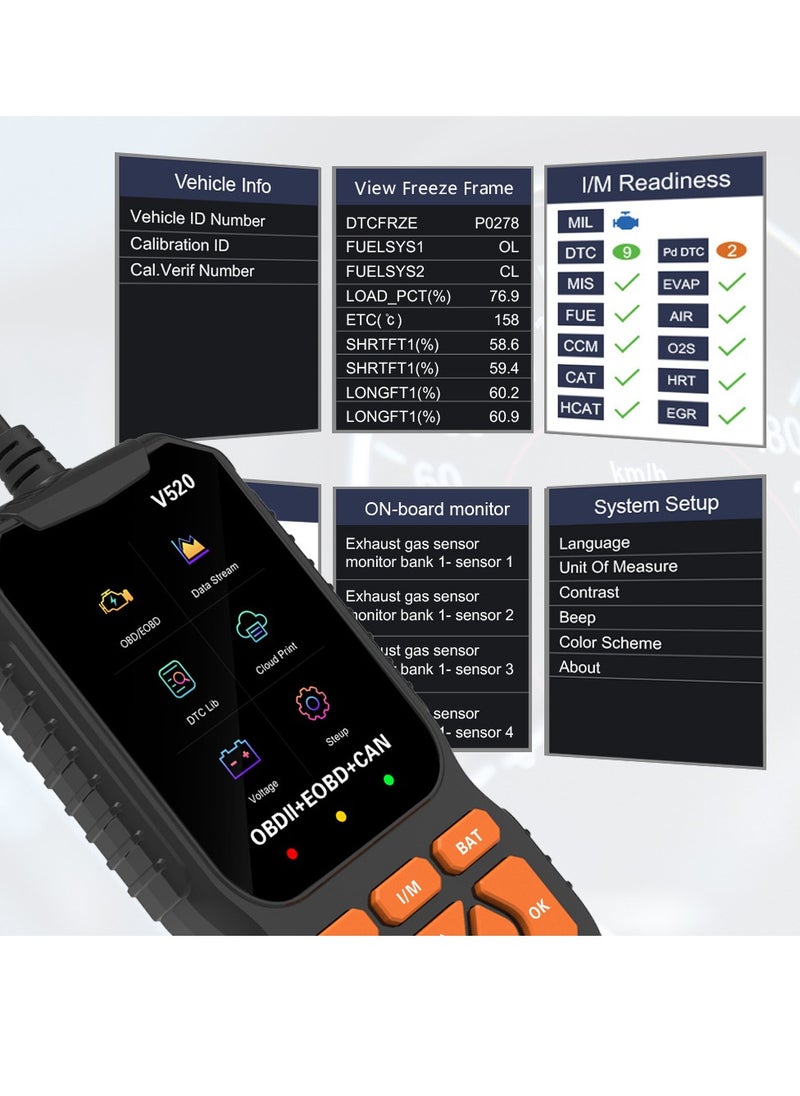

FREEZE FRAME DATA VIEWING: Check the certain engine conditions such as fuel trim, engine coolant temp, etc which are recorded by the onboard computer at the time the Malfunction Indicator Lamp (MIL) was triggered.

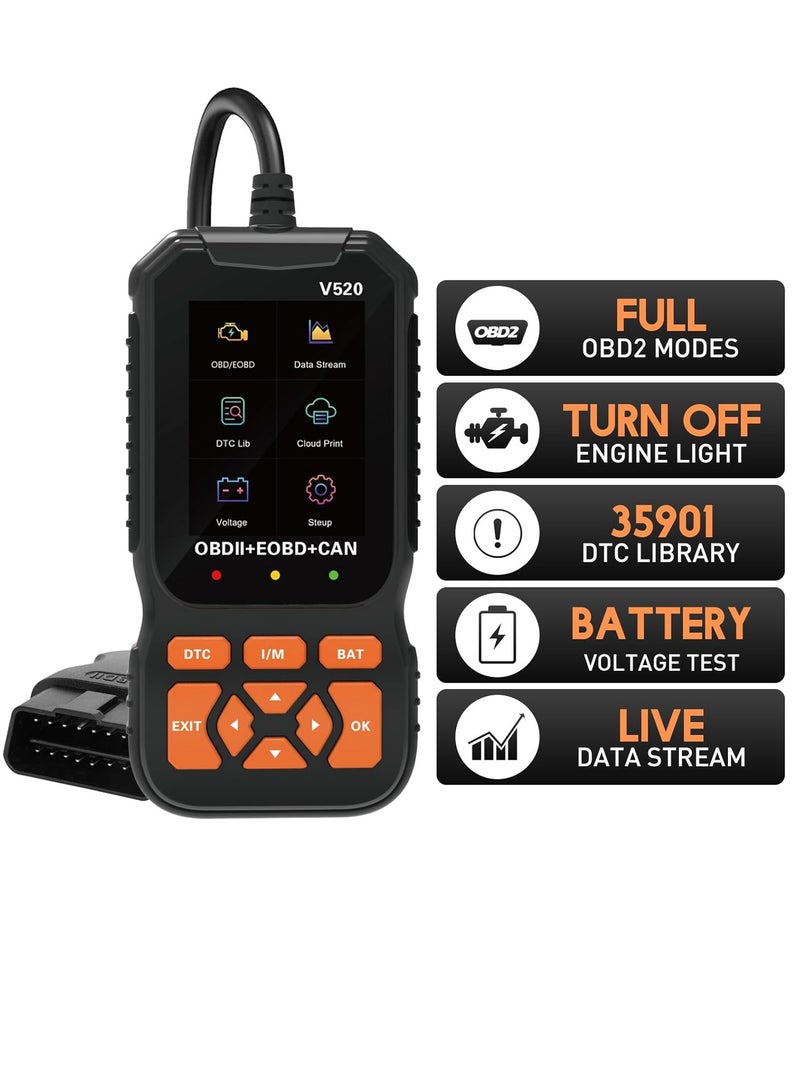

نظرة عامةV520 Function:

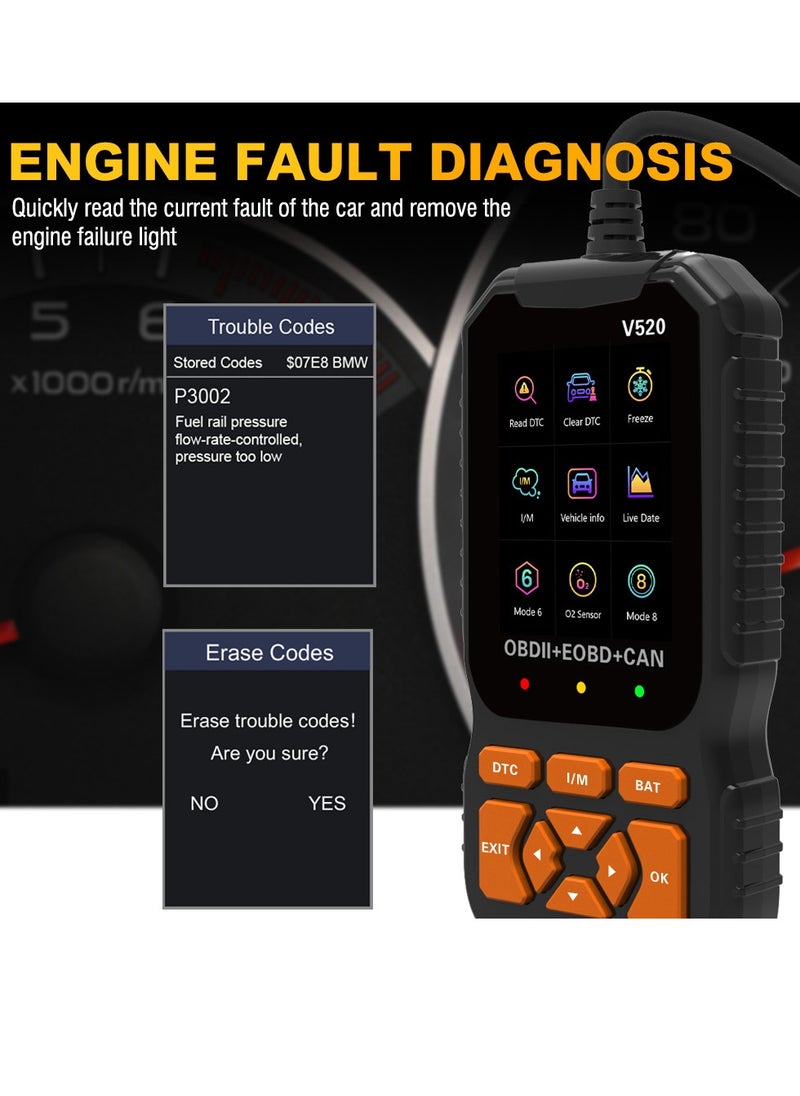

Diagnosis of automotive engine faults
Car engine fault light clearing
Car freeze frame
I/M ready status
Vehicle information reading
Real time data flow
Car battery voltage reading
Mode 6 detection
Oxygen sensor testing
Mode 8 test
Fault code query
Code scanning and printing function
35901 fault code library
Color display 2.8 inches
2. Supported protocols
SAE J1850 PWM（41.6 Kbaud）
SAE J1850 VPW（10.4 Kbaud）
ISO 9141-2（5 baud init,10.4 Kbaud）
ISO 14230-4 KWP（5 baud init,10.4 Kbaud）
ISO 14230-4 KWP（fast init,10.4 Kbaud）
ISO 15765-4 CAN（11bit ID,500 Kbaud）
ISO 15765-4 CAN（29bit ID,500 Kbaud）
ISO 15765-4 CAN（11bit ID,2500 Kbaud）
ISO 15765-4 CAN（29bit ID,250 Kbaud）
3. Supported Vehicle Data
Reading error diagnostic codes
Clear fault codes (clear error codes and turn off MIL)
Engine RPM
Calculated load value
Cooling liquid temperature
Fuel system status
Vehicle speed
Short term fuel situation
Long term fuel situation
Intake manifold pressure
Fuel injection lead time
Intake temperature
Air flow velocity
Absolute position of throttle valve
Oxygen detection voltage associated with short-term fuel status
Fuel system status
Fuel pressure
Monitoring of fuel consumption, etc
Note: The number of data items supported varies depending on the model year, subject to actual support.

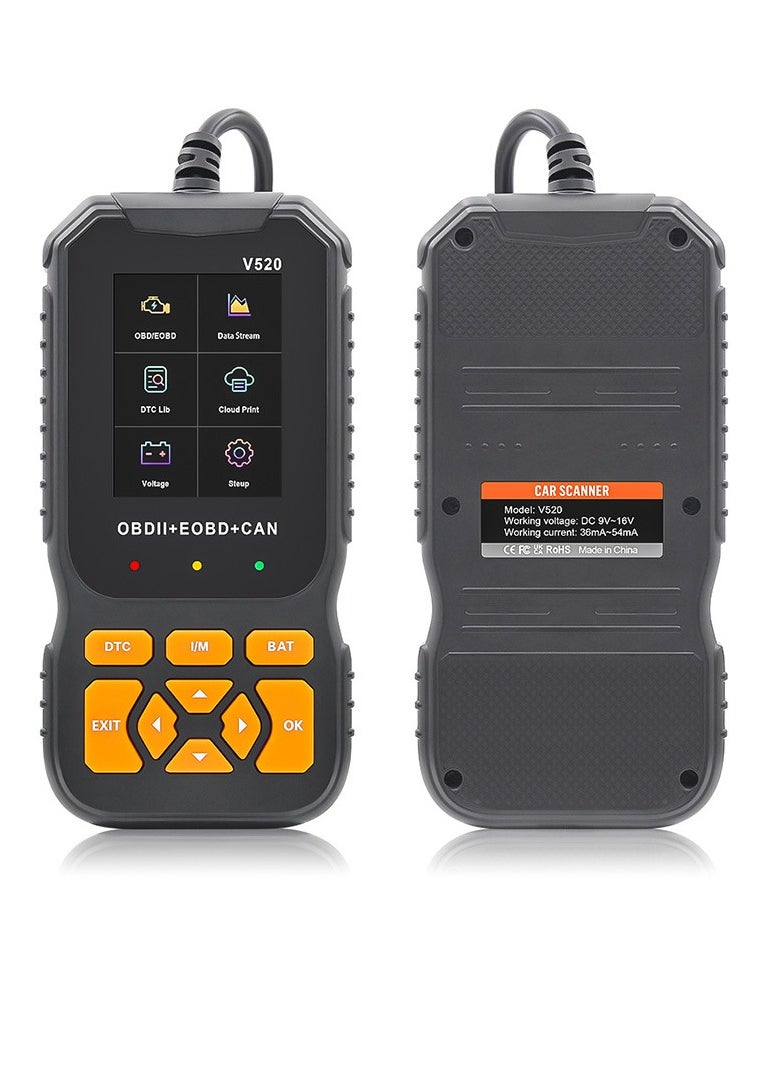

5. Technical parameters
Main control chip: APM32E103VET6, LQFP100
Working voltage: DC 9V~16V
Working current: 36mA~54mA
Standby current: 40mA
Operating environment: -30~70 ℃
Storage temperature: -30~70 ℃
External dimensions: 171 * 85 * 28mm
6. Support for ten languages
1.English
2.German
3.French
4.Spanish
5.Italian
6.Russian
7.Dutch
8.Chinese
9.Japanese
10.Portuguese
