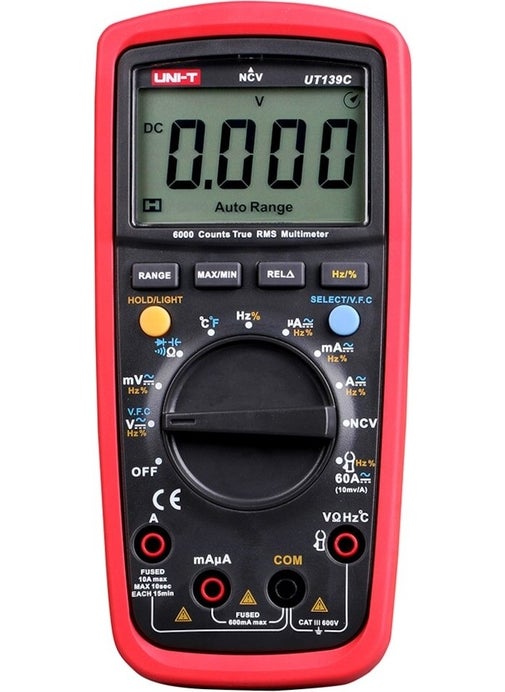

The UT139 series are CAT III 600V digital multimeters designed for electricians. The NCV feature can effectively check electrical status by measuring EM field intensity. The new UT139E/S models include special features such as LoZ (ACV) to measure "ghost" voltage The built-in 31-segment analog bar also provides electricians with a better visual representation of measurement results. UT139S features a black EBTN display and is an excellent meter for working in dark environments.
1. MAX/MIN/REL modes
2. Data hold, LED backlight, automatic power off
3. Full range protection (600V)
4. True RMS
5. NCV
6. Auto/manual ranges selectable
Features | Range | UT139C |
DC voltage (V) | 600V | ±(0.5%+2) |
AC voltage (V) | 600V | ±(0.8%+3) |
DC current (A) | 10 A | ±(0.7%+2) |
AC current (A) | 10 A | ±(1%+3) |
resistance (Ω) | 60MΩ | ±(0.8%+2) |
Capacitance (F) | 99.99mF | ±(4%+5) |
Frequency (Hz) | 10Hz~10MHz | ±(0.1%+4) |
Temperature (°C) | -40°C~1000°C | ±(1%+3) |
Temperature (°F) | -40°F~1832°F | ±(1.5%+5) |
Properties | ||
Number of views | 6000 | |
Auto range/Manual range | √ | |
Bandwidth (Hz) | 45Hz~1kHz | |
NCV/Continuity ring | √ | |
Duty cycle | 0.1~99.9% | √ |
Diode | around 3V | |
general features | ||
Power | 1.5V battery (R6) x 2 | |
view | 58mm x 36mm | |
product color | red and gray | |
Product net weight | 354g | |
Product size | 170mmx80mmx48mm | |
Standard accessories | Batteries, test leads, temperature probe | |
Standard individual packaging | Gift box, English manual | |
standard quantity per carton | 20 pieces | |
Standard carton measurement | 450mm x 330mm x 340mm | |
Standard carton gross weight | 12.2kg | |
optional accessory | Current sensor AC/DC 40A | |
