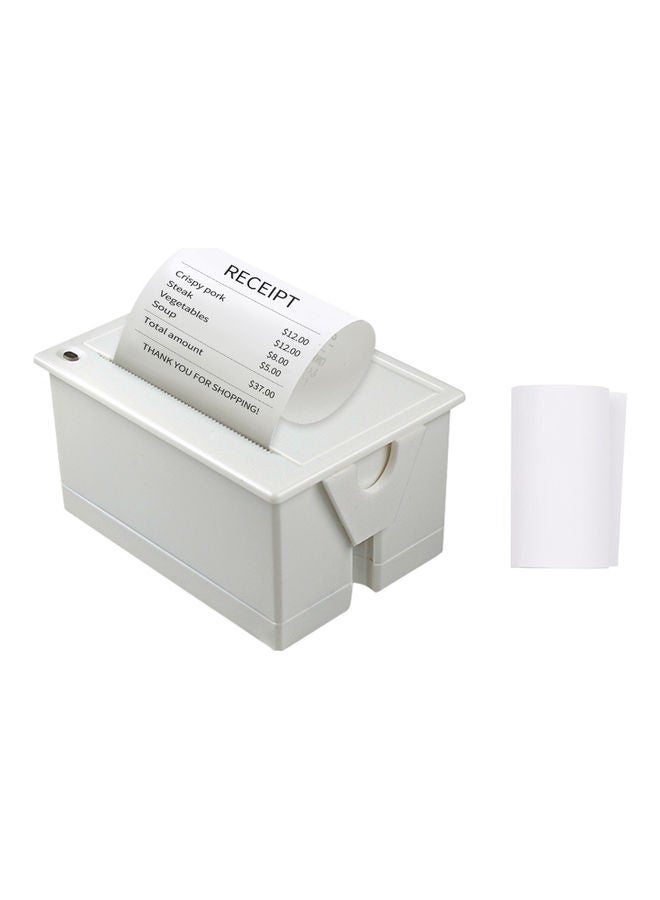

Mini 58mm Embedded Thermal Printer White

OverviewFeatures:
58mm embedded thermal printer module, support secondary development(print command, SDK). With USB/RS232/TTL interface, support ESC/POS command, support various operating systems, provide Android SDK, compatible with Windows, Linux and Android system.（Note: Only power cable and TTL cable are provided.)
Suitable for embedded products in various industries, such as weighing apparatus, medical industry, food, soil, electricity, dust, temperature and humidity analysis instrument, fire control instrument, cash register, credit card machine, etc.

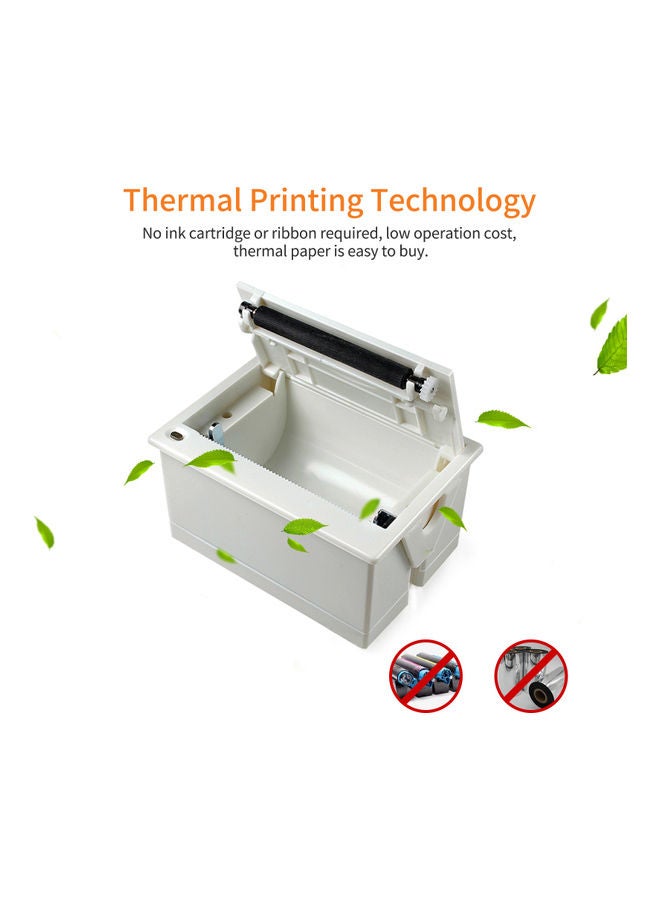

Adopting thermal printing technology, no ink cartridge or ribbon required, low operation cost, thermal paper is easy to buy. Easy paper install structure, simple and convenient to operate.

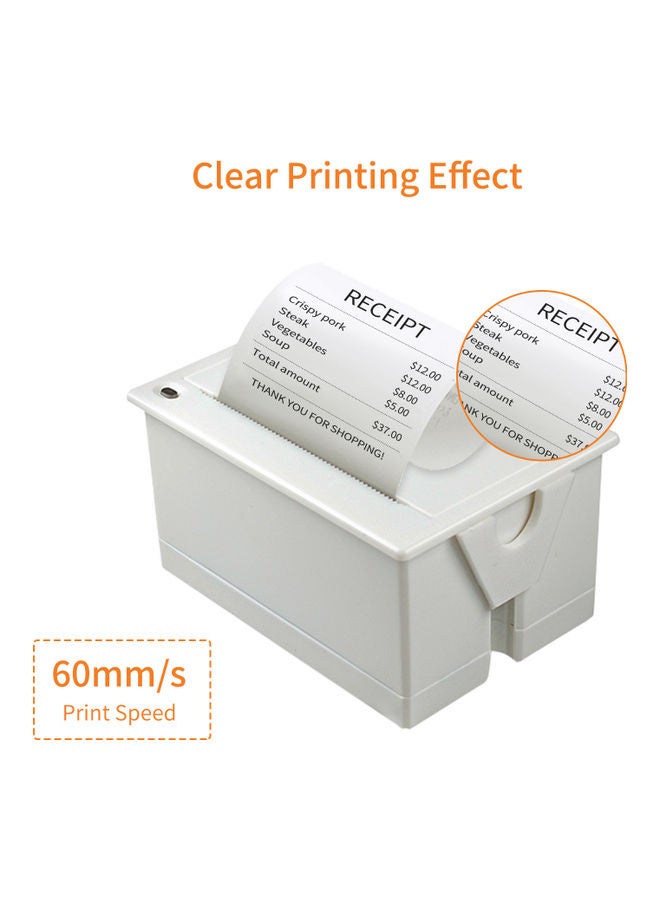

50KM reliability TPH life, industrial grade print head is adopted, ensure long-term use. Reliable quality, 60mm/s print speed, clear printing and high efficiency, it will work perfectly with your device.
A variety of content can be printed, multi-language text/picture/logo/1D/QR code all support printing.
Specifications:
Model: EM5822
Color: White
Power Supply: 5-9V/12V(Optional)
With Cable: USB Cable/TTL Cable/RS232 Cable(Optional)
Printing Method: Thermal Printing

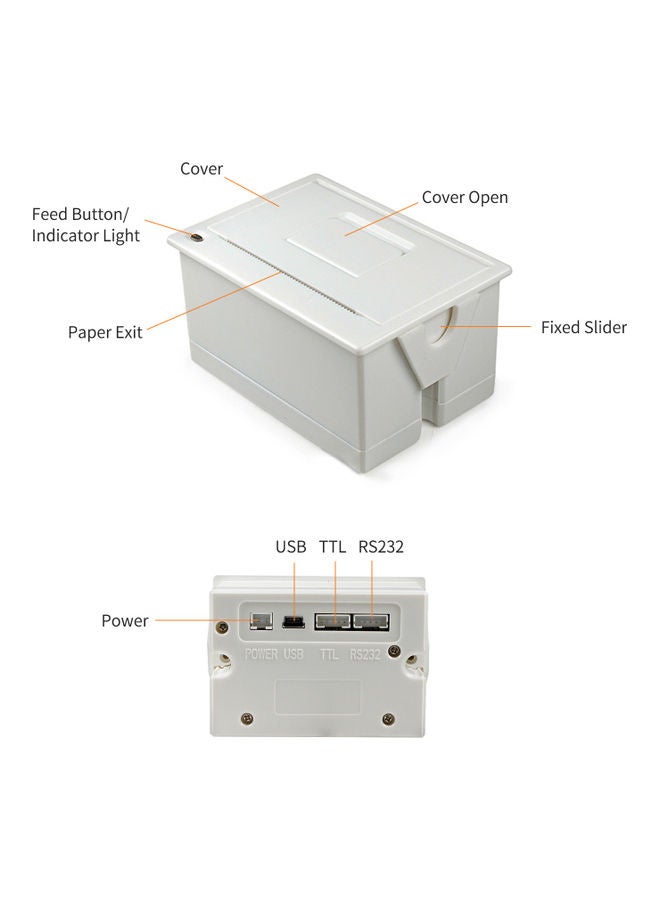

Interface: USB/RS232/TTL
Supported Text and Graphics:
-1D: Codebar/code93/code39/code128/ENA13/ITF25/UPC-A/UPC-E
-2D: QR
Print Speed: 60mm/s
Baud Rate: Default 9600
Resolution: 203dpi
Reliability TPH Life: 50KM
Operating System: Support Linux, Windows XP/7/8/10, Android
Paper Width: 58mm±0.05mm
Paper Thickness: 0.05~0.1mm
Print Width: 48mm
Roll Diameter: Support Max. 40mm
Print Command: ESC/POS
Paper Cutting Method: Manual Paper Tearing
Working Temperature: -10~50℃, Working Humidity: 20~80%
Storage Temperature: 15~ 20℃, Storage Humidity: 45~75%
Item Size: 8.2 * 5.8 * 4.4cm / 3.2 * 2.3 * 1.7in
Installation Size: 7.8 * 5.3 * 4.3mm / 3.1 * 2.1 * 1.7in
Item Weight: 140g / 4.9oz
Package Size: 18.7 * 10.0 * 5.3cm / 7.4 * 3.9 * 2.1in
Package Weight: 192g / 6.8oz
Notes:
Does not support any mobile phones and tablets.
The USB interface of XP/win7/win8/win10 uses driver printing, and the serial port of XP/win7/win8/win10 provides development package; Android's USB port and serial port provide development package and technical support, Linux provides development package and technical support.
Packing List:
1 * Printer Module
1 * Thermal Paper

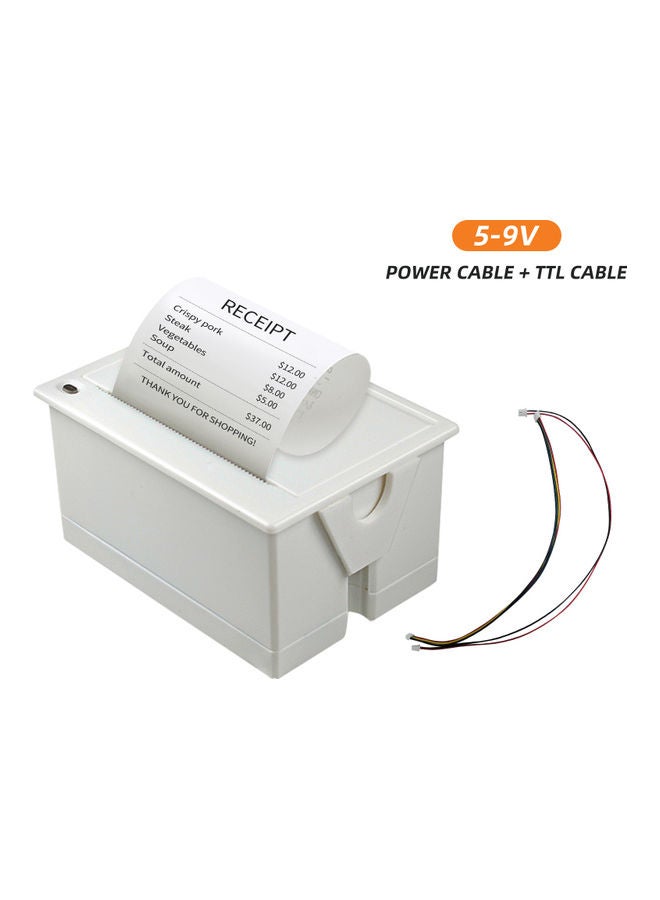

1 * Power Cable
1 * TTL Cable
