4K HDMI إلى USB 3.0 بطاقة التقاط الفيديو جهاز التقاط الفيديو 1080P 60FPS Cam Link Card Game Capture Card محول شاشة تسجيل جهاز التقاط الفيديو لبث مؤتمرات الفيديو

[Note]

- For MacOS, do not need to download other software. just get audio and video by using the QuickTime software provided by for MacBook, do not need to install additional drivers.

- For Windows, we recommend using for OBS software, then download the ""User Manual (PDF)"" on the current product description page or ask the seller for it.

- Please insert the video capture card into the USB3.0 jack of the computer. Only in this way can you capture for YUY2 uncompressed video.

- If the edge of the captured image is jagged, adjust the image resolution of the captured device to 1080P/4K 16:9.

- Try not to use hub, because some cheap hubs have poor compatibility.

[Connection and Operation]

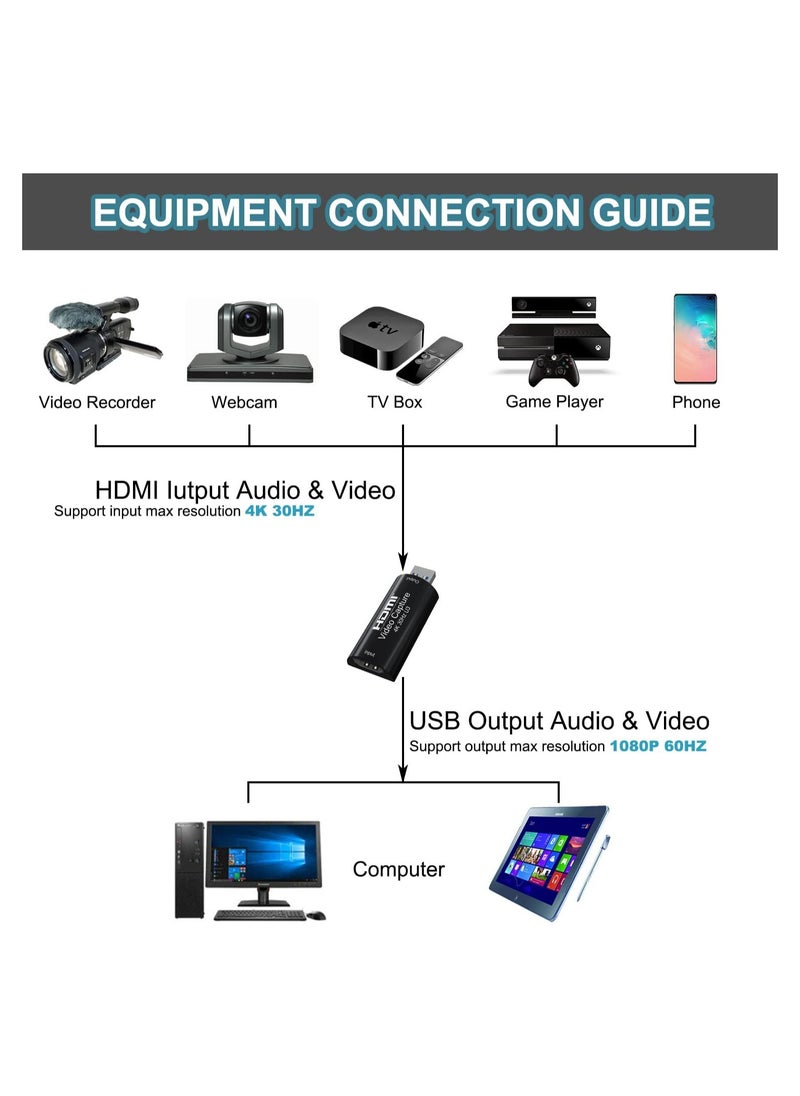

- Connect the UHD signal source to the HDMI input of the video capture with one HDMI cable.

- Insert the video capture card into the USB3.0 socket of the PC.

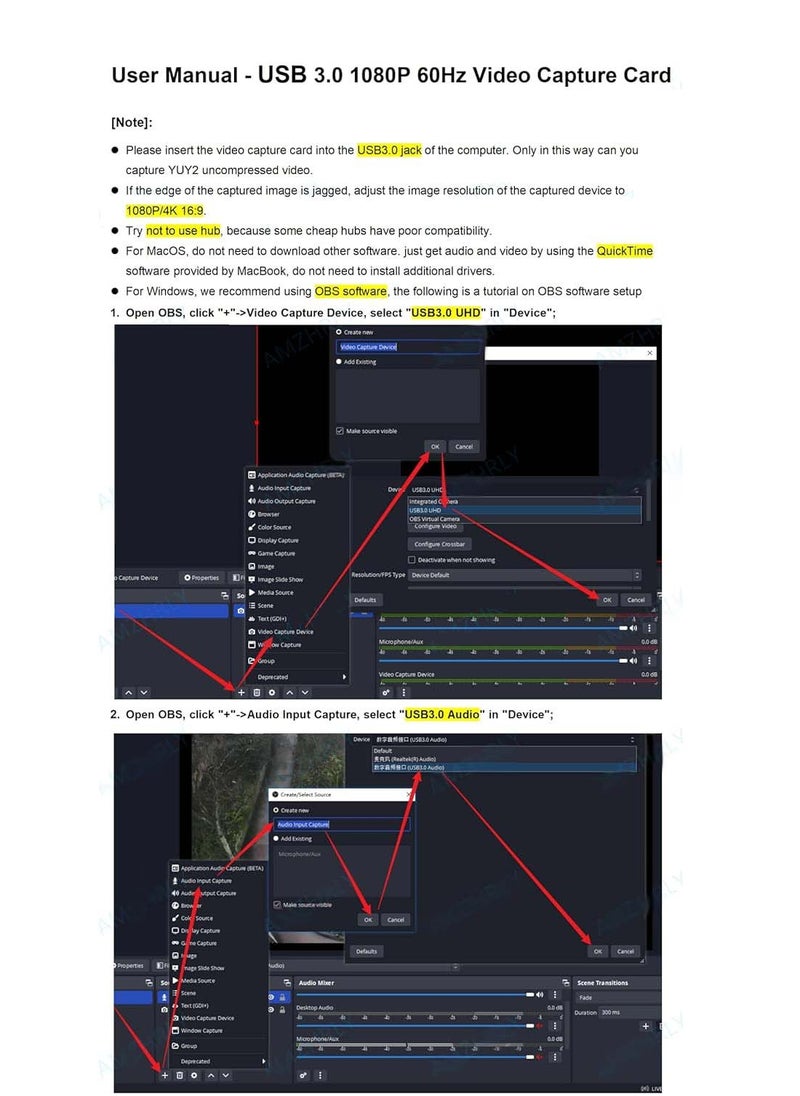

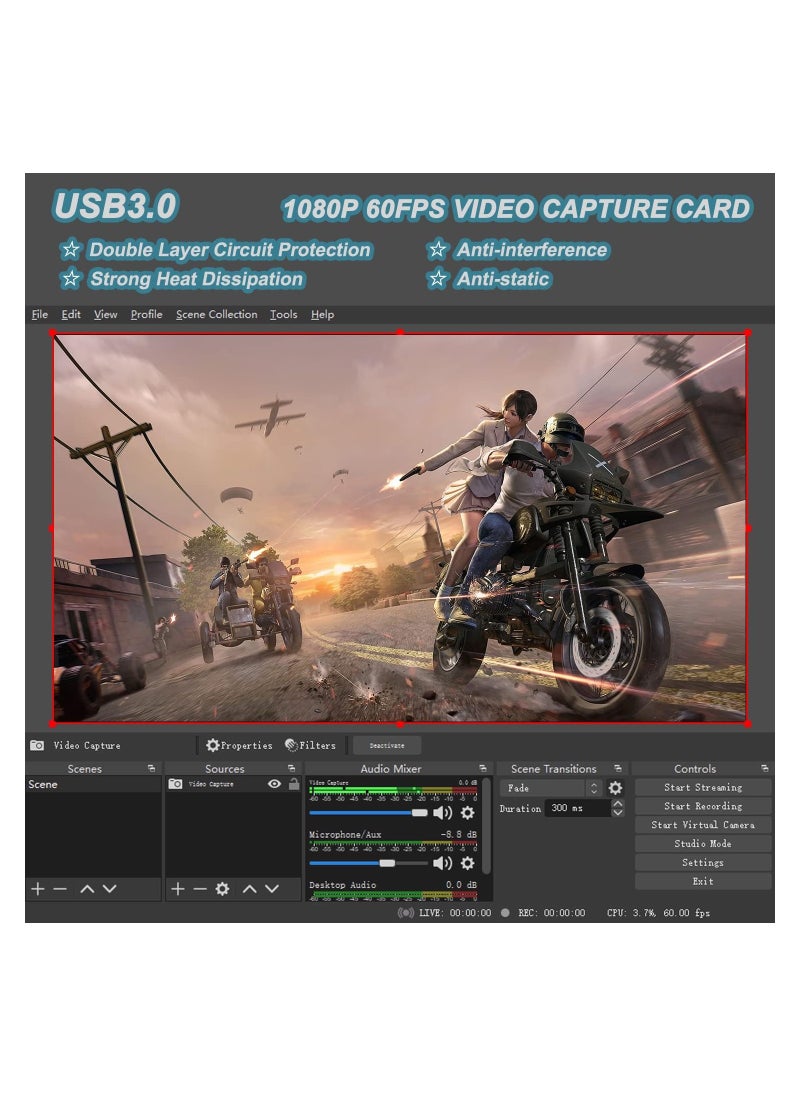

- Operation steps for USB video capture(OBS): Open OBS, click ""+""->Video Capture Device, select ""USB3.0 UHD"" in ""Device""; click ""+""->Audio Input Capture, select ""USB3.0 Audio"" in ""Device""; click “Start Recording”.

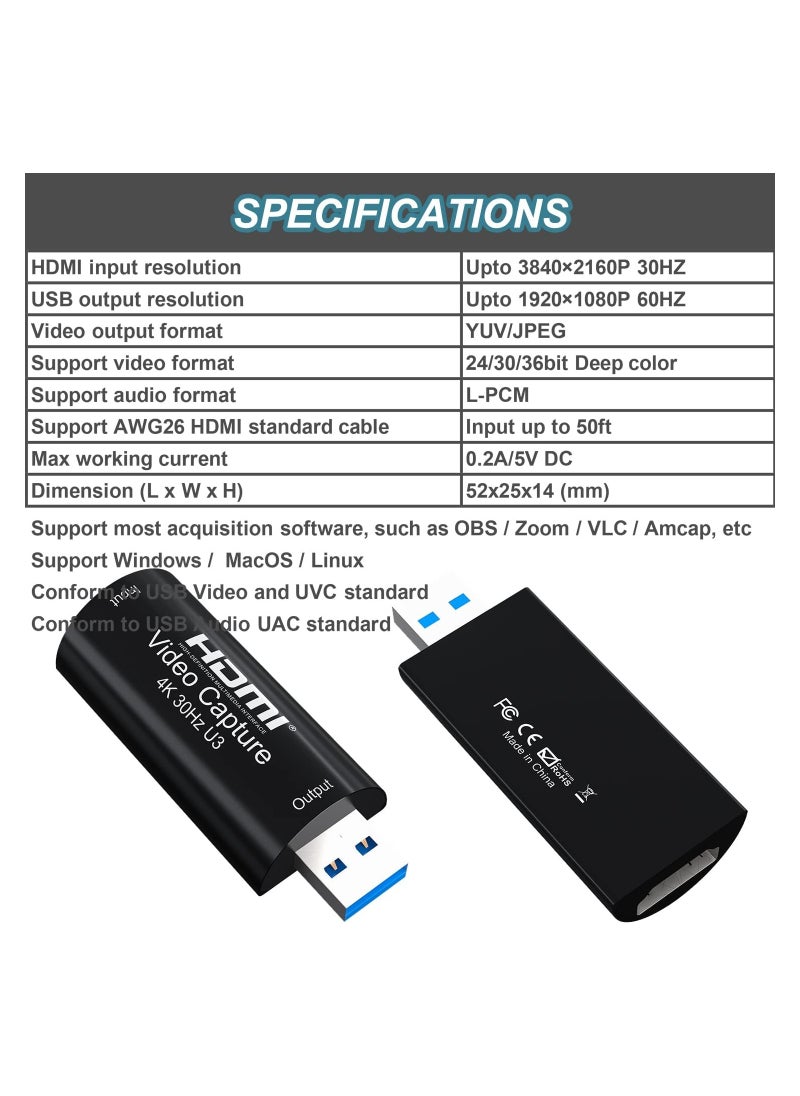

[Features]

- HDMI Input resolution 4K 30FPS

- USB output resolution 1080P 60FPS

- Video output format: YUV/JPEG

- Support video format: 24/30/36bit Deep color; audio format: L-PCM

- Support most acquisition software, such as VLC / OBS / Amcap, etc

- Support for Windows / Android / MacOS

- Conform to USB Video and UVC standard; USB Audio UAC standard

- Max working current: 0.2A/5V DC

- Dimension (L * W * H): 52x25x14 (mm)

- Without external power supply

- No need to install additional drivers.
