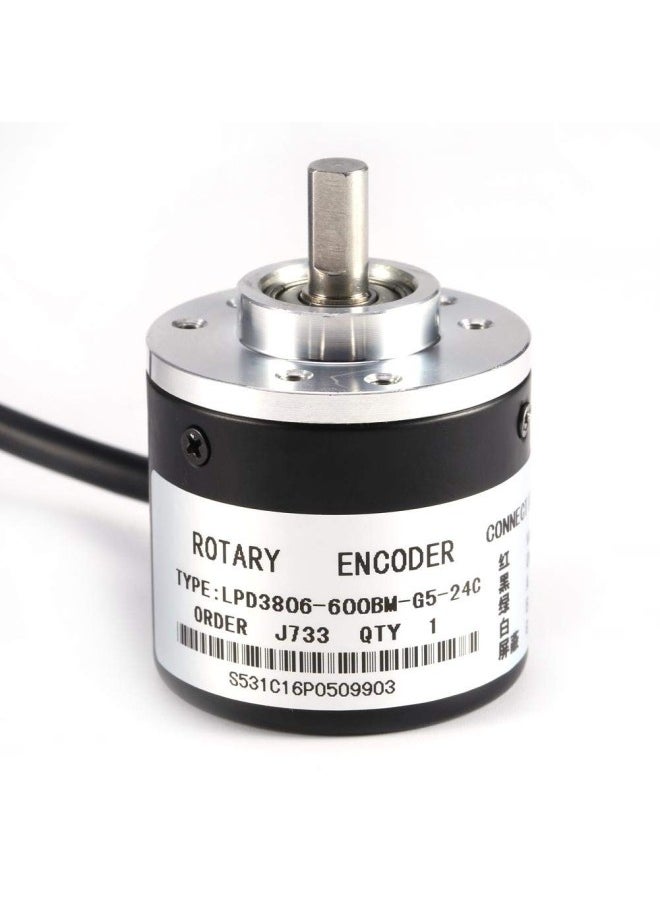

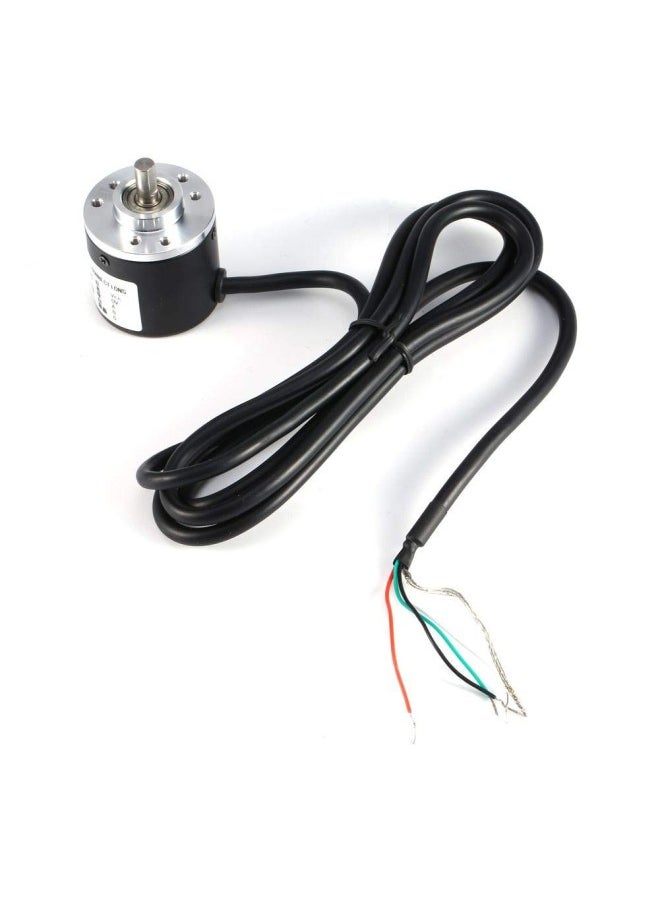

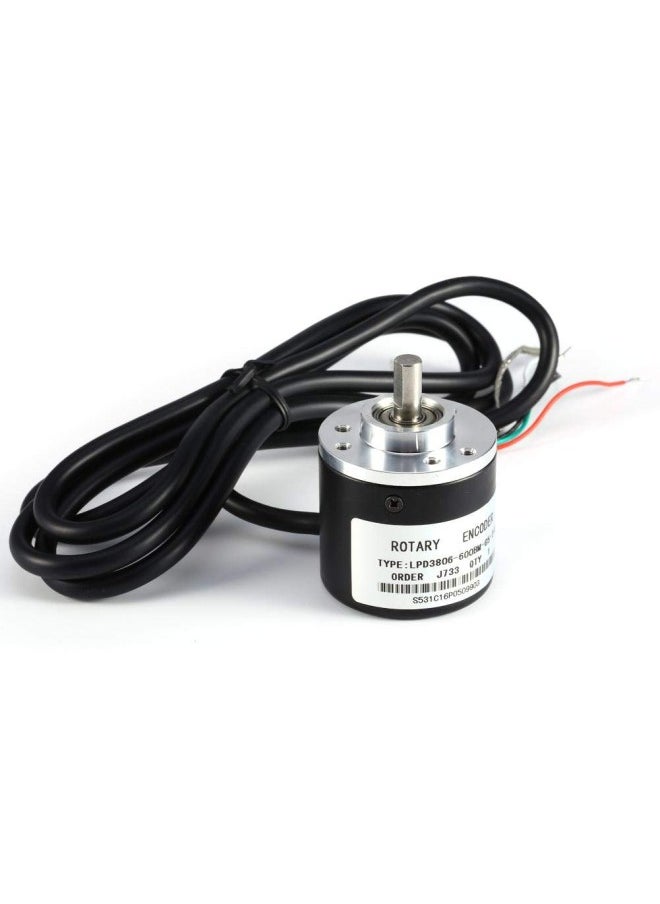

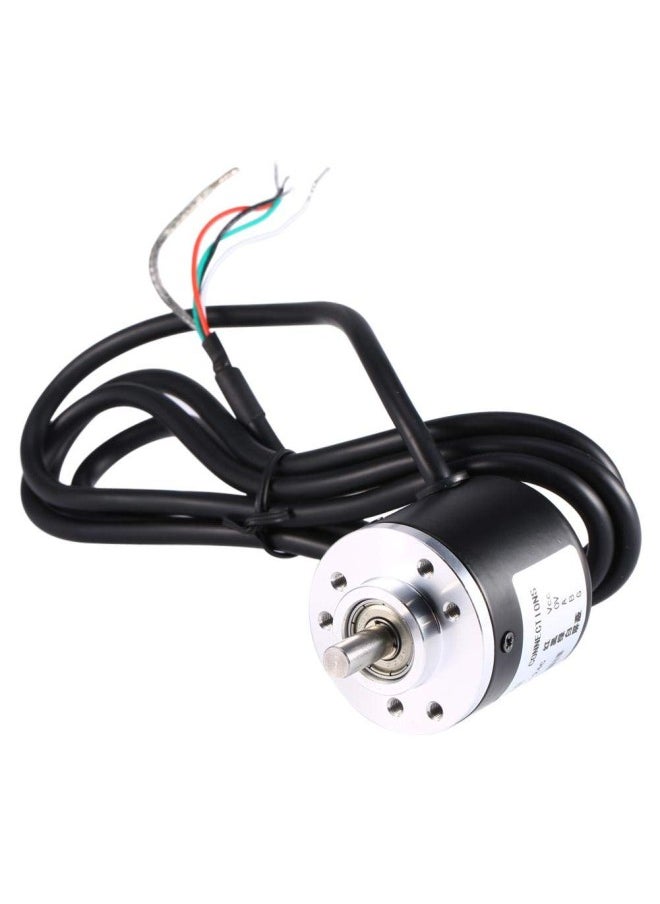

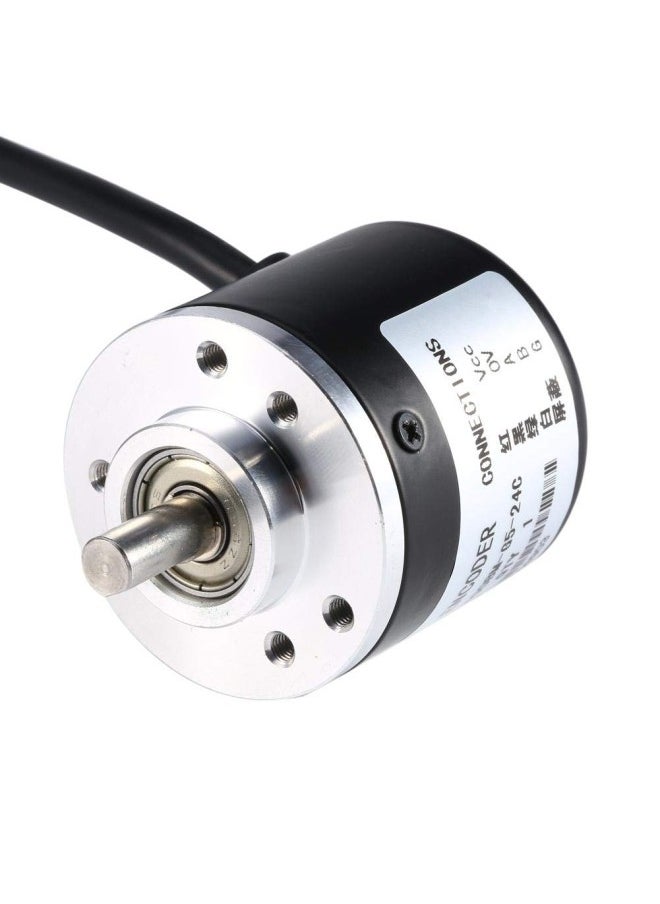

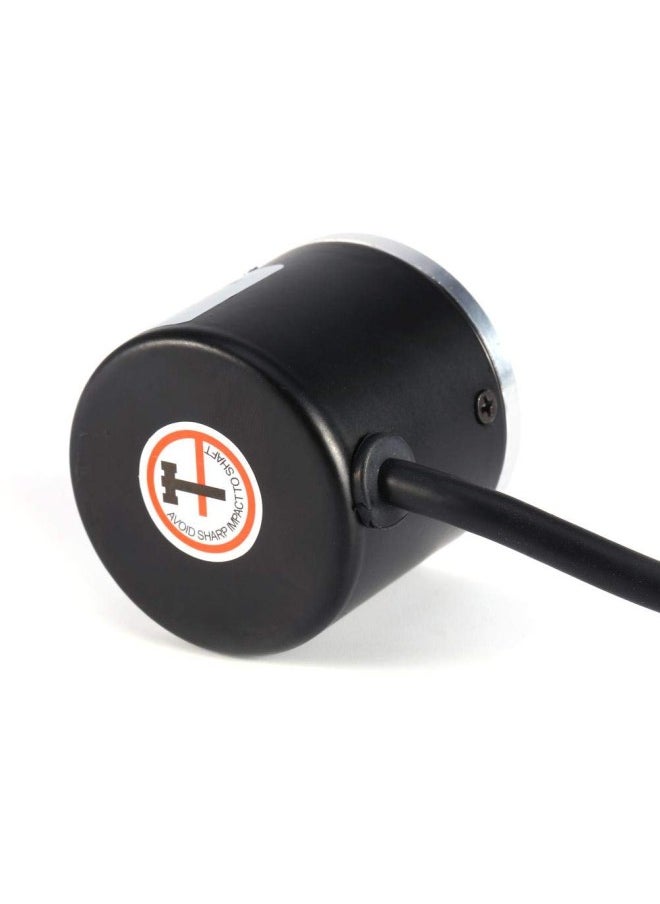

WYBOT - Rotary Encoder, 600P/R Photoelectric Incremental Rotary Encoder 5V-24V AB 2-Phases Wide Voltage Power Supply 6mm Shaft - Image 1

WYBOT

Rotary Encoder, 600P/R Photoelectric Incremental Rotary Encoder 5V-24V AB 2-Phases Wide Voltage Power Supply 6mm Shaft

199.95

 399.85

شامل ضريبة القيمة المضافة

وفرّت:

 199.90

خصم 49%

احصل عليه خلال 17 يونيو

اطلب في غضون 2 ساعة 47 دقيقة

التوصيل بواسطة نوون

الدفع عند الاستلام

عملية تحويل آمنة

عروض البنوك

البائع

يتم البيع عبر

متجر فيزيسا

لا توجد تقييمات كافية لعرضها

بدون ضمان

توصيل مجاني لمراكز الاستلام

هذا المنتج قابل للإرجاع مجاناً

نظرة عامة على المنتج

الميزات الأساسية

High Resolution and Versatility: This Sensor is equipped with a magnetoelectric rotation encoder that offers an impressive resolution of 600 p/r. With its advanced technology, it can accurately measure rotational rate, angle, acceleration, and even
Wide Power Source Compatibility: The Encoder operates on a DC power source ranging from 5V to 24V. This wide range of compatibility allows for flexible integration into different industrial automation equipment and systems.
Stable Performance and Reliability: The Sensor delivers stable working performance and excels in various working conditions. It is designed to withstand the demands of industrial environments, ensuring its reliability and durability over time.
Output Configuration for Ease of Use: The AB 2-phase output utilizes a rectangular orthogonal pulse circuit, providing a reliable and precise output . It features an NPN open collector output type, making it compatible with a wide range of industri
Versatile Industrial Applications: This Magnetoelectric Rotation Encoder is suitable for a wide range of industrial applications. It can be used in intelligent control systems for displacement measurement, such as automatic fixed-length leather gui

نظرة عامة

Item Description:u003cbr/u003e 1pc Incremental Rotary Encoder 600 p/r 6mm Shaft 5-24vu003cbr/u003e u003cbr/u003e Specifications:u003cbr/u003e 100% brand newu003cbr/u003e Pulses: 600 p/r (Single-phase 600 pulses /R,Two phase 4 frequency doubling to 2400 pulses)u003cbr/u003e Power source: DC5-24Vu003cbr/u003e Shaft: 6*13mm/0.23*0.51u003cbr/u003e Size: 38*35.5mm/1.49*1.39u003cbr/u003e Output :AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output typeu003cbr/u003e Maximum mechanical speed: 5000 R / minu003cbr/u003e Response frequency: 0-20KHzu003cbr/u003e Cable length: 1.5 meteru003cbr/u003e u003cbr/u003e Uses:u003cbr/u003e 1. It can be used to measure the rotational speed, Angle and acceleration of the object and the length measurementu003cbr/u003e 2. Suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machines, u003cbr/u003e steel cut length control, civil measured height human scale, Students racing robotsu003cbr/u003e u003cbr/u003e Notice:u003cbr/u003e AB 2phase output must not be directly connected with VCC, otherwise, will burn the output triode, u003cbr/u003e because different batches, and may not have the terminal.(Green = A phase, white = B phase, red = Vcc power +, black = V0)u003cbr/u003e u003cbr/u003e Package included:u003cbr/u003e 1 x Encoder 600P/R Incremental Rotary Encoderu003cbr/u003e u003cbr/u003e
