1064nm 2W Infrared Laser Module IR-2 0.03mm Ultra Fine Laser Spot for Metal and Plastic Engraving Suitable for Laser Engraving and Cutting Machine S9/S10/S30/S30 Ultra/SF-A9 Series

Sorry! This product is not available.
Available Soon
Product Overview

Model: IR-2 Light Output Power: >2W Product Material: aluminium alloy Laser Wavelength: 1064nm Working Mode: pulse operation Spot Size: X:0.03mm Y:0.003mm Power Supply: DC24V(80W) Storage Temperature: -10°C-50°C Product Size: 144x50x58mm Product Weight: 0.45KG Package Size: 295x231x80mm/11.6x9x3.1in Package Weight: 1.5KG/3.3lb

Highlights

  • 1- Engravable Materials: 1064nm infrared laser module is suitable for engraving on a wide variety of metals including gold, silver, platinum, copper, aluminium, zinc, iron, stainless steel, metal oxides and alloys, plastics, and Dark acrylics.
  • 2- High Precision: The laser module adopts ultra fine 0.03mm laser spot with high accuracy, which can engrave more delicate patterns on various metal materials.
  • 3- 20000Hz Pulse Energy: The pulse energy of the Sculpfun laser module can reach up to 20000Hz. It can easily engrave on metals and show clear traces.

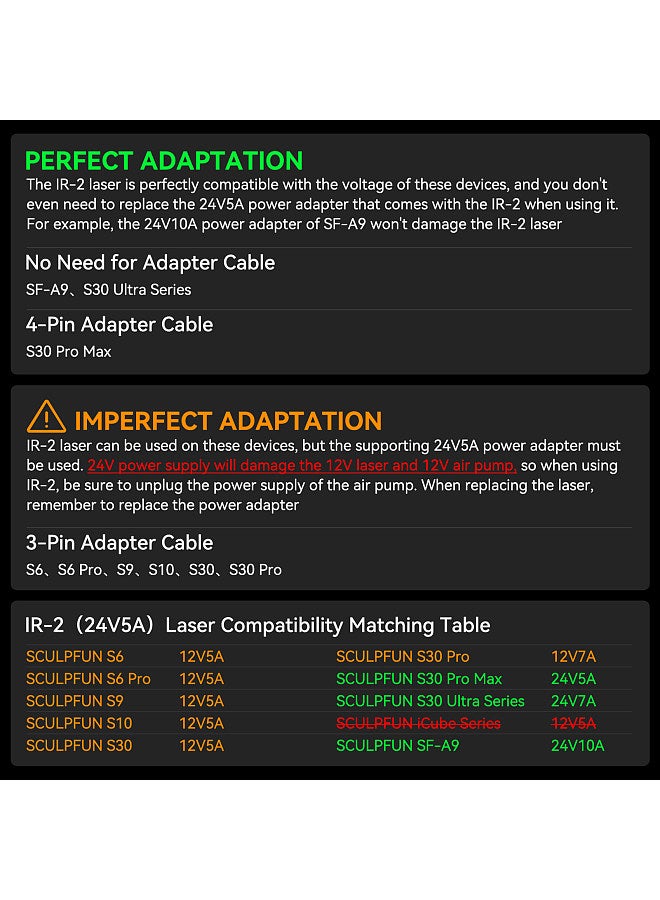

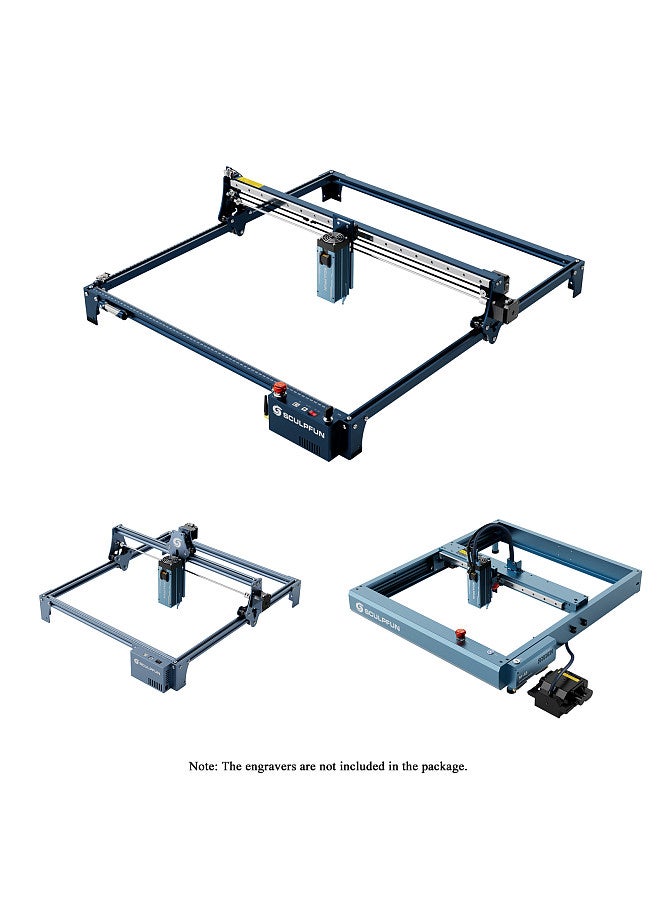

  • 4- High Adaptability: Compatible with all Sculpfun laser engravers, including S9, S10, S30 Series, S30 Ultra Series and SF-A9

Specifications

Colour Namemetal blue

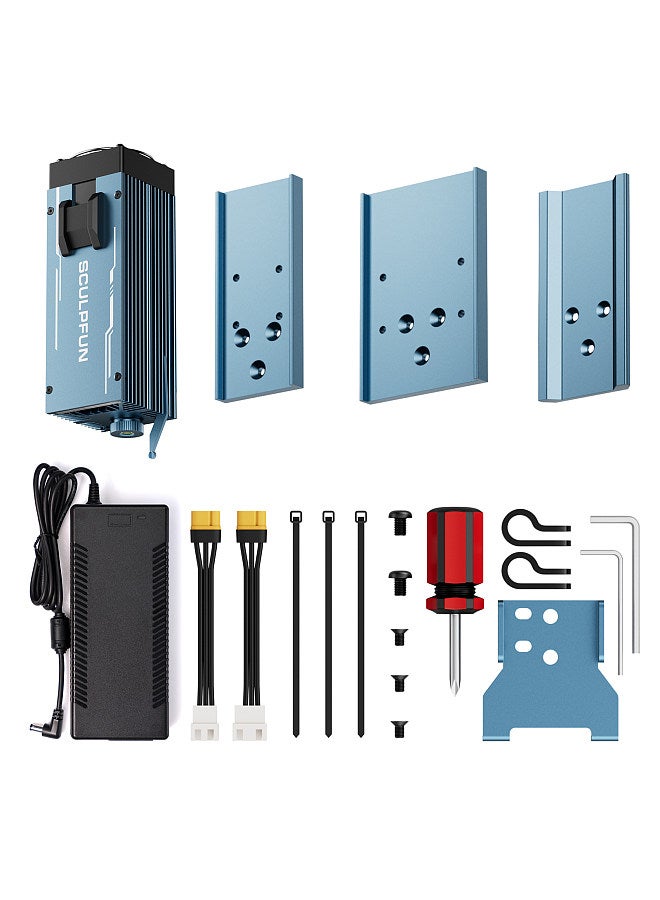

What's In The Box1 x 2W Infrared Laser Module 1 x Adapter 1 x S10 Mounting Plate 1 x SF-A9 Mounting Plate 1 x Universal Mounting Plate for Other Models 1 x Accessories Package
Model NameIR-2
Country of OriginChina
Model NumberIR-2
