Highlights- - Image Sensor : CCD - Optical Resolution : 800 dpi
- - Scan Modes : > Color: 48-bit input, 24-bit output > Grayscale: 16-bit input, 8-bit output > B/W: 1-bit output
- - Color Depth : Input 48-bit; Output 24-bit
- - Scanning Speed : 7.8 sec (Color/ Grayscale/ B&W mode, 300dpi, A3)
- - Scanning Area (W x L) : Max. 304.8 mm × 431.8 mm (12" × 17"), A3
- - Daily Duty Scan ( Sheets ) : 2,500
- - Action Button : 1,2,3,4,5,6,7
- - Power Supply : 24 Vdc/ 1.25 A
- - Power Consumption: ≦ 30 W (operation), ≦ 2.9 W (idle), ≦ 0.3 W (standby)
- - Interface : USB 2.0
- - Protocol : TWAIN Compliant, WIA

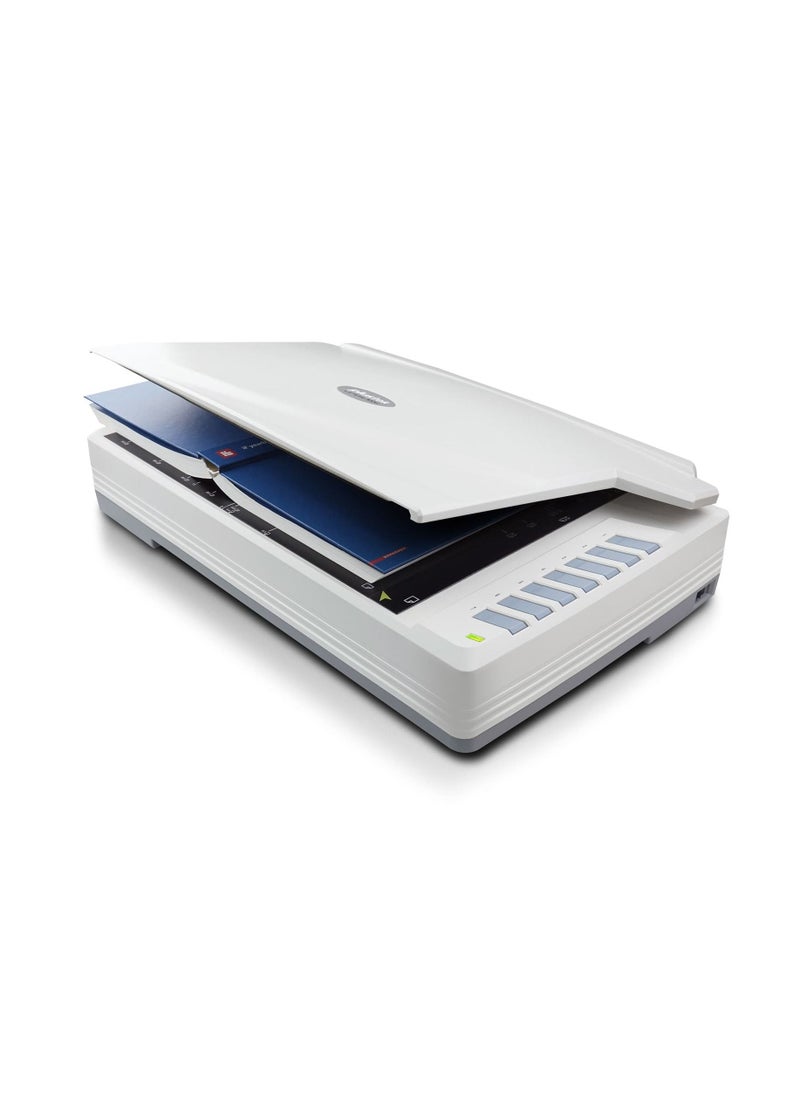

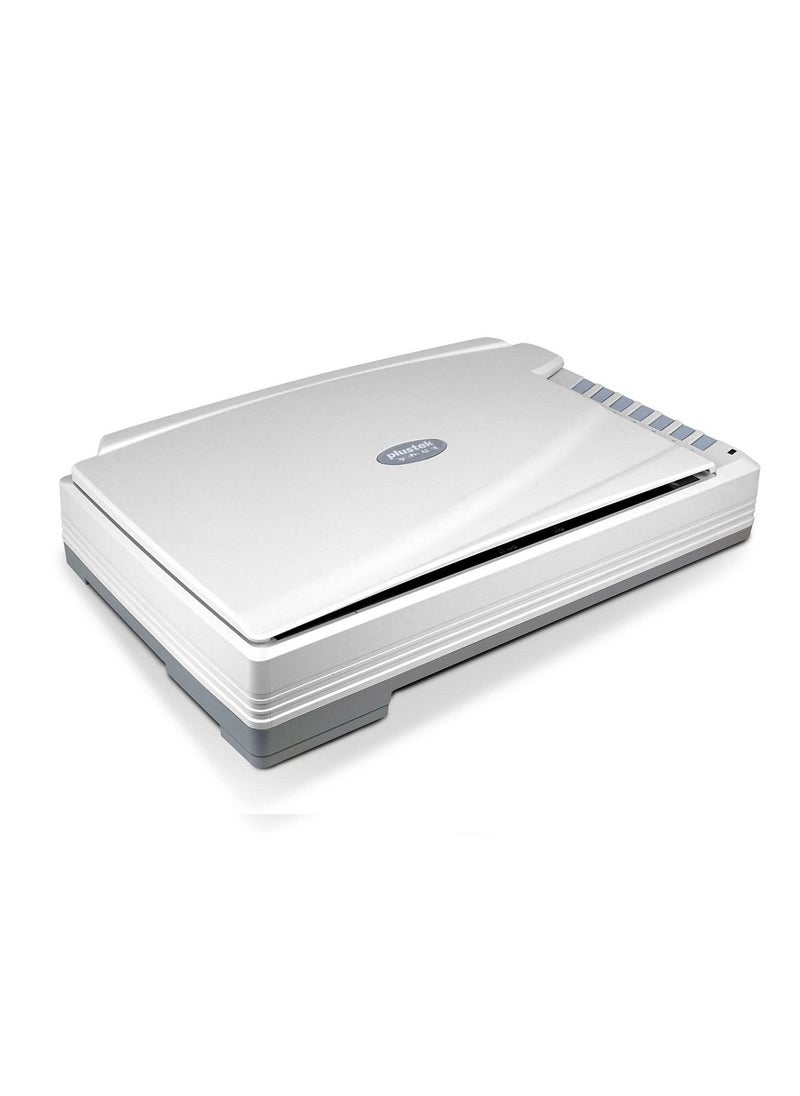

OverviewThe Plustek OpticPro A320E is a high resolution, 800 dpi scanner that can scan an A3 sized page in 7.8 seconds.
Seven programmable one touch buttons simplify scanning tasks. It is ideal for graphic
designers, publishing companies, libraries, schools, small office/home office (SOHO) users and for others who require large format scanning in cost effiective way.
# KEY FEATURES
• Large format scanning area (A3 size ,304mm x 431mm ,12" x 17" )
• CCD Sensor allows scanning images with depths of field
• One-touch button design to personalized the program
• Accurate color and high dynamic range
• Compatible with most imaging applications
• User-friendly software bundle
# SOFTWARE
1- Plustek DocAction :

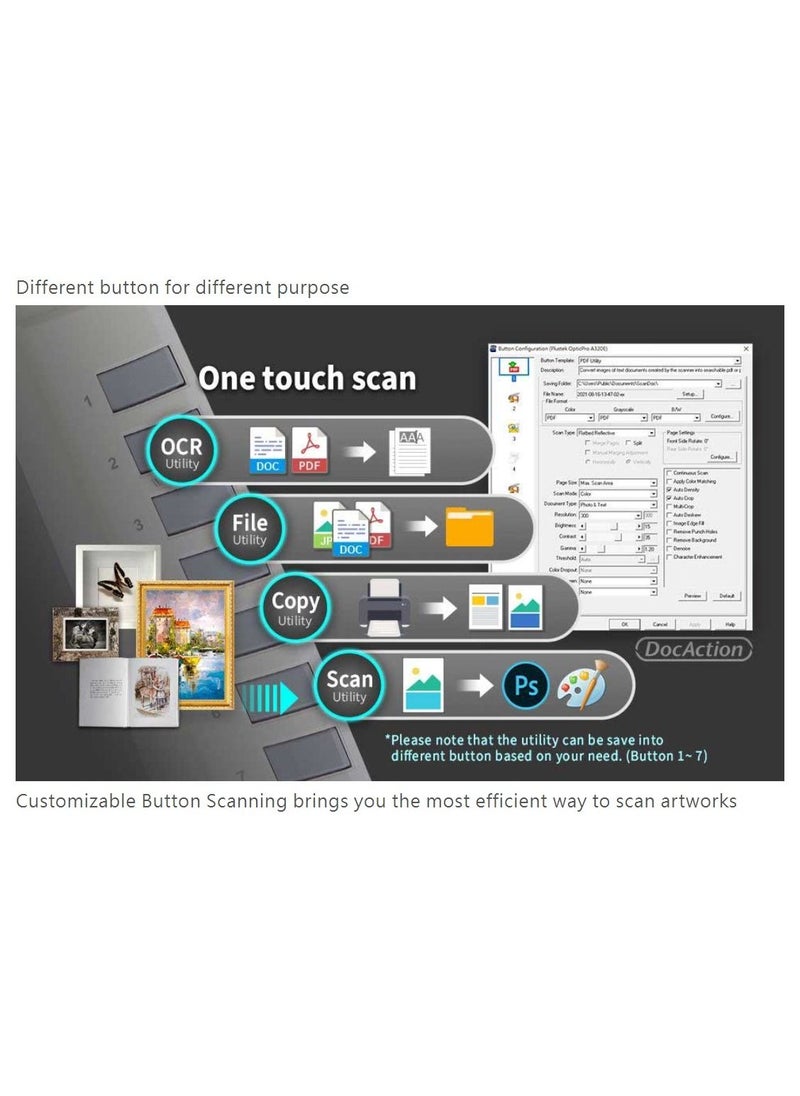

Button utility to simplify document scanning. DocAction enables you to specify your personalized scanning configuration settings and scan documents with the click of a button. Scanned documents are automatically sent directly to Printer, Email, Folder or FTP. DocAction also enables you to scan directly to many imaging and document management applications. DocAction saves scanned documents in all common imaging formats including JPEG, TIFF, and PDF.
2-Plustek MacAction :
Plustek MacAction is the button utility software enables scanning by simply touching a button. The easy-to-use function provides users with a platform to edit the scan settings and modify the saving destination.
MacAction also enables you to scan directly and save scanned documents in all common imaging formats including JPEG, TIFF, MULTI-TIFF, BMP, and PDF.
# Built-in OCR
Plustek OCR *
Plustek OCR (powered by ABBYY) helps to convert scanned paper documents, photos, and PDF les into editable formats.
With Plustek OCR, you can convert paper documents to editable formats, including
Microsoft® Word®, and Excel®, edit resulting documents, and reuse their text and other content.
OS :
Windows 7 / 8 / 10 / 11
macOS 10.12.x/ 10.13.x/ 10.14.x/ 10.15.x/11.1x /11.2x /12.x
Linux compatibility is only available for system integrators. Please contact PROVIDER
Hardware Requirements :
Windows and Mac
2.0 GHz CPU processor or higher[1][2][3]
[1]Windows Recommended: 2.8 GHz Intel® Core™ i5 Processor with 4 CPU Cores or higher
[2]Support Mac INTEL and M1 based processor
[3]Compatibility is not available with PowerPC
4 GB RAM minimum (Recommended: 8 GB or more, A3 size #1600 dpi scanning, allocated 20 GB Virtual Memory at minimum)
6 GB of hard-disk space for program installation
Display dimensions of 1024x768 or greater
