Programmable Time Control Controller Digital Time Delay 1-way Relay Switch Active Output Auto Manual Trigger Operation Reserve External Trigger Interface

Generic

Programmable Time Control Controller Digital Time Delay 1-way Relay Switch Active Output Auto Manual Trigger Operation Reserve External Trigger Interface

Sorry! This product is not available.

Secure Payments

Available Soon

Product Overview

Specifications: Name: Relay Switch Material: plastics Working voltage: 12VDC/20A/240W Cycle switch: support Time-delayed power on: support Delayed shutdown: Support Infinite cycle: Support Power failure save: support, only save the settings, power reset restart Buzzer alarm: No Limit cycle: 1-999 adjustable cycles Trigger mode: Auto trigger (default)/Manual trigger External trigger: external trigger port reserved, need to install trigger device by yourself. Installation size: 77 * 39.3mm / 3.03 * 1.55in Product weight: DC12V: 45g; AC1500W: 50g; AC2200W: 55g Item size: 79.5 * 42.1 * 27.8mm / 3.13 * 1.66 * 1.09in Item weight: 12VDC/20A/240W: 45g / 1.59ounce 110-220VAC/1500W: 50g / 1.76ounce 110-220VAC/2200W: 55g / 1.94ounce Package size: 130 * 110 * 50mm / 5.12 * 4.33 * 1.97in Package weight: 12VDC/20A/240W: 50g / 1.76ounce 110-220VAC/1500W: 55g / 1.94ounce 110-220VAC/2200W: 60g / 2.12ounce Packing List: 1 * Relay Switch

Highlights

High Working Performance: The T3231 programmable timer features accurate time control, clear display, multiple operating modes, flexible parameter setting, adjustable trigger mode, stable output, and easy installation.
Time Control: Digital cycle timer relay module, 9 combinations of time units, time ranges from 1 second to 999 hours. Time control: 1-999. Time units: seconds/minutes/hours.

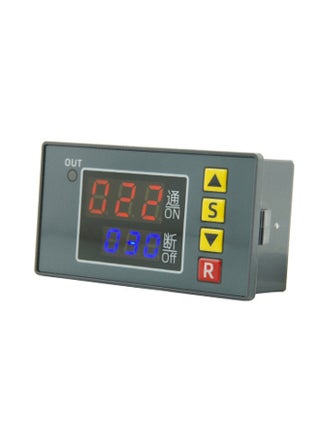

Dual LED Display: Red and blue dual LED display module and operation buttons for easy setting of delay time and working mode.
Working Modes Adjustable: Support multiple working modes, including timed, cyclic, and periodic working modes to meet most of your needs.
Parameter Setting: Support power-on time and power-off time set. Support single delay on and off setting. Support infinite delay on/off setting, 1~999 adjustable cycles.

Specifications

Colour Name	Grey
What's In The Box	1 * Relay Switch
Model Name	T3231

Country of Origin	China
Model Number	T3231
