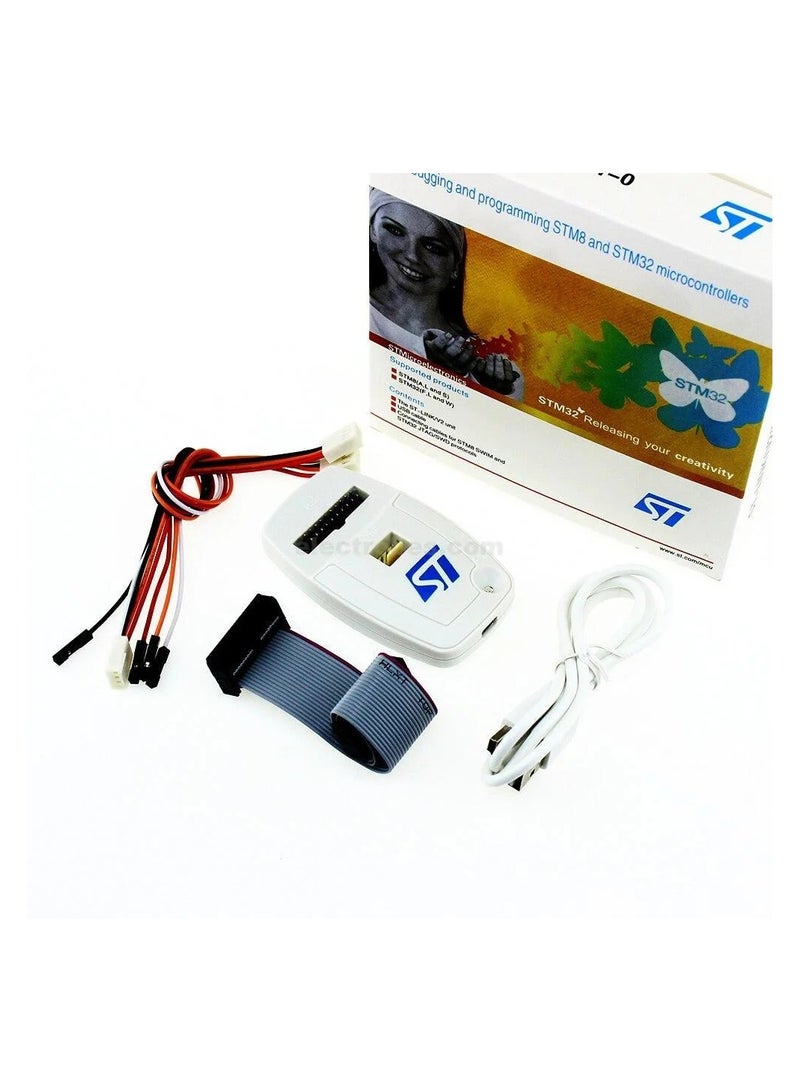

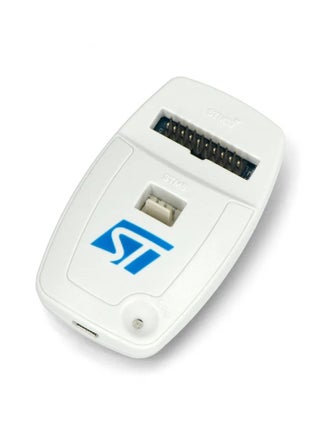

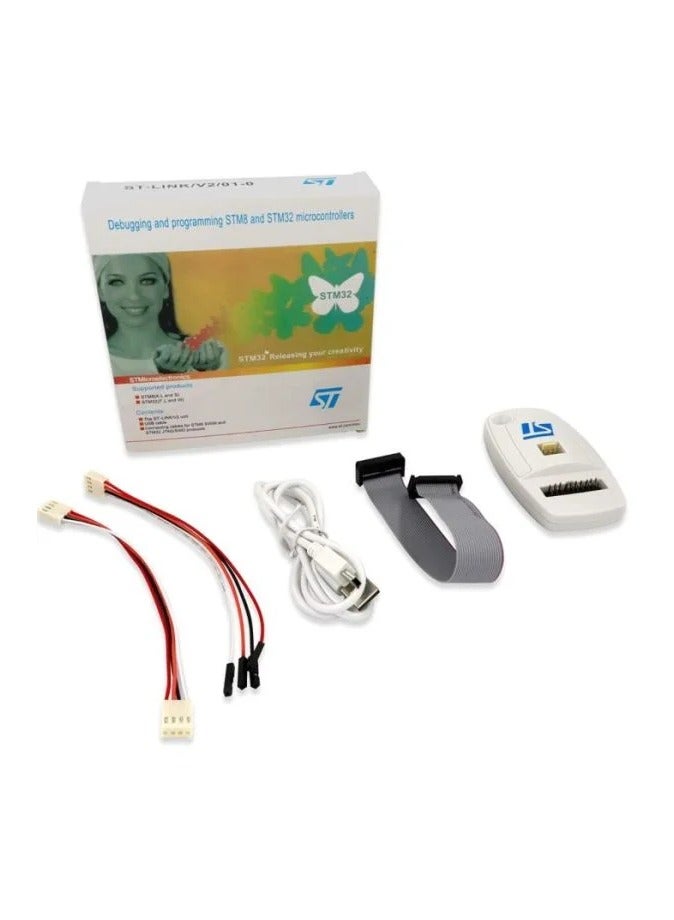

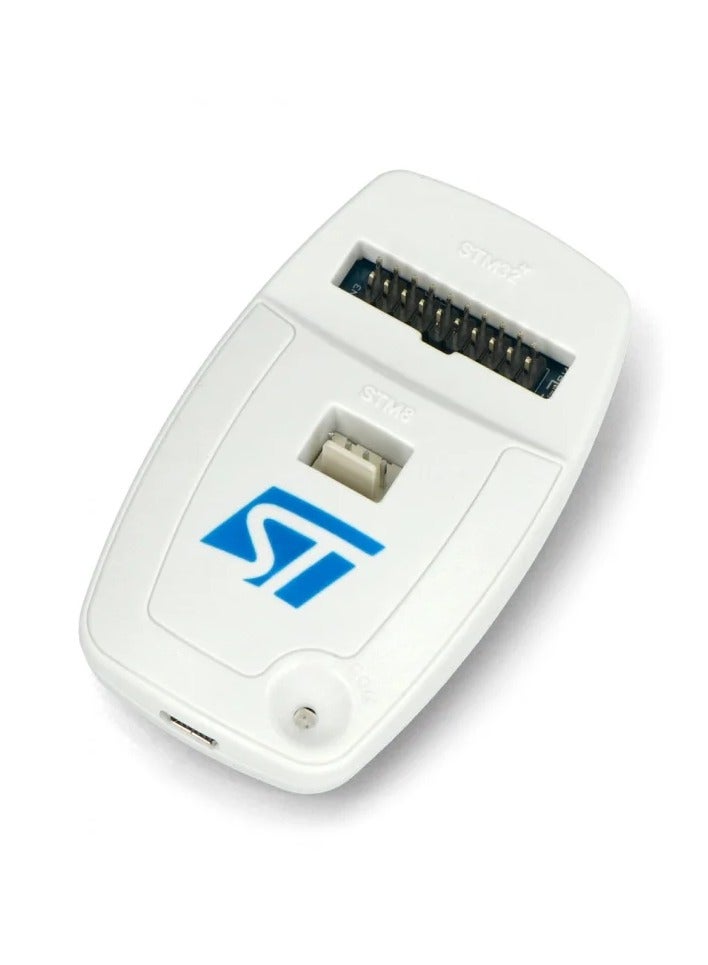

ST-link V2 Stm32 Stm8 Usb Jtag programmer in the debug circuit

ST-LINK/v2 programmer for the stm8 and stm32 microcontroller families. A single wire interface module (swim) and jtag/situging/serial (swd) interfaces are used to communicate with any stm32 microtroller located on an application board. stm8 applications use the usb speed interface to communicate with the stmicroeusb visual development (stvd) or visual software (stvp). stm32 applications use the usb speed interface to communicate with atolls, ayar, keil or tqel integrated development environments. Main features 5 v power supplied by usb connector USB 2.0 compatible interface at full speed Usb standard mini-b cable swim specific features 1.65v to 5.5v voltage application is supported on the SWIM interface SWIM Swim at low speed and high speed modes are supported Swimming programming speed rate: 9.7 kbyte/s at low speed 12.8 kbyte/s at high speed Swim cable for connection to the application using a vertical vertical (ref: 284697 or 214017) or horizontal (ref: 214012) connector Swim cable to connect to application via pin header or 2.54mm pitch connector Jtag specific features 1.65 v to 3.6 v application voltage supported on jtag interface and 5 v tolerant inputs jtag cable for standard connection jtag 20 pin 2.54 mm Direct Firmware Update (dfu) feature supported A class led during communication with the computer Operating temperature 0 to 50 dat
