UT33B+ Digital Multimeter

Color

Red

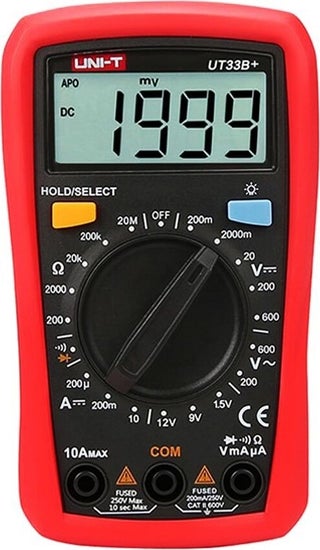

Uni-T UT33B+ Digital Multimeter



Product Overview:

The new generation UT33+ series redefines the performance standards for entry-level digital multimeters. Our innovative industrial design enables these products to withstand a 2-meter drop. The new LCD display layout provides a better user experience. This series allows users to work safely in a CAT II 600V environment. Special features include 2mF capacitance test (UT33A+); battery test (UT33B+); temperature measurement function (UT33C+); non-contact voltage (NCV) test (UT33D+).



General Features of the Product:

1. Clear LCD screen

2. Comfortable protective cover, with test lead hanging groove

3. 2 meters drop test, precision protection

4. Loud ringtone; Ergonomic design

5. Unique battery test feature: displays 'good', 'low' and 'bad' status when testing 1.5V / 9V / 12V batteries



Technical Specifications of the Product:

Features	December	UT33B+
DC voltage (V)	200mV / 2V / 20V / 200V / 600V	±(0.5%＋2nd)
AC voltage (V)	200V/600V	±(1.2%+3)
DC current (A)	200μA / 200mA / 10A	±(1%+2)
Resistance (Z)	200Ω / 2kΩ / 20kΩ  / 200kΩ / 20MΩ	±(0.8%+2)
Properties
Number of screens		2000
Auto power off / Auto backlight off		√
Diode test / Continuity beep		√
2m drop test / Test probe holder		√
range selection		Manual
battery test		1.5V / 9V / 12V
general features
Power	1.5V battery (R03) x 2
view	66  x 51mm
Net weight of the product	red and gray
product color	206g (including batteries)
Product size	134  x 77  x 47 mm
Standard accessories	Batteries, test leads
